cp7202-1010-0010
by Beckhoff

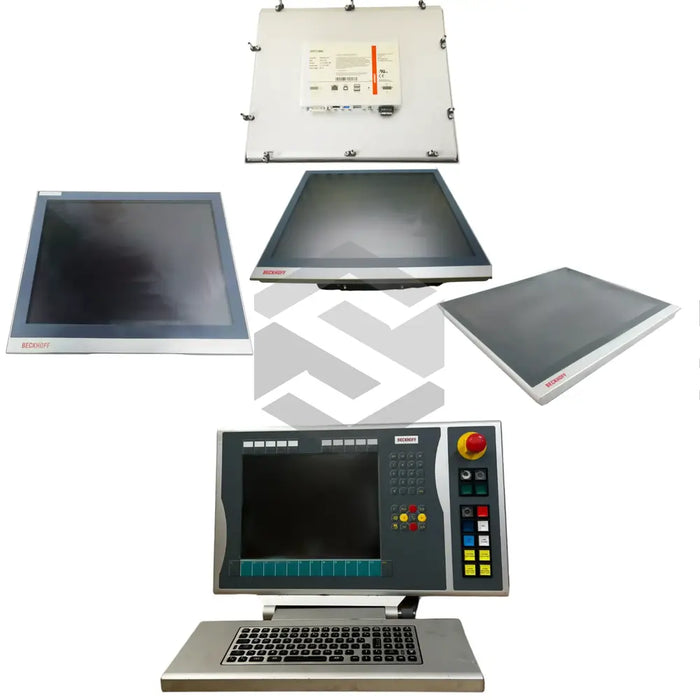

The Beckhoff cp7202-1010-0010 is an advanced industrial panel PC, part of the CP Panel PC Systems series by Beckhoff. It is powered by an Intel® processor and features DDR4-RAM for high-speed data throughput. The front panel carries an IP65 protection rating, ensuring total dust ingress protection and resistance to powerful water jets. This combination of ruggedization and computing power makes the CP7202-1010-0010 ideal for harsh industrial automation environments requiring reliable human-machine interface solutions.
This panel PC operates on a supply voltage of 22-30 VDC (with 24 VDC recommended) and supports flexible storage via a single slot for a 2.5-inch hard disk or SSD. It can withstand vibrations from 10 to 58 Hz at 0.035 mm displacement and 58 to 500 Hz at 0.5 G acceleration, as well as shocks up to 5 G for 30 ms. The system maintains operation within an ambient temperature range of 0 °C to +45 °C and storage from -20 °C to +65 °C. A CR2032 lithium-metal cell (3 V) battery ensures real-time clock retention and BIOS settings across power cycles.
For secure and stable operation, the CP7202-1010-0010 incorporates an activated fTPM 2.0 module and is certified to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) EMC standards. The maximum permissible relative humidity is 95% without condensation, safeguarding against moisture-induced failures. This panel PC’s robust construction, comprehensive ingress protection, and stringent EMC compliance deliver dependable performance, enhanced longevity, and simplified integration—providing significant benefits in industrial automation by minimizing downtime and maintenance costs.
