CP7232-0001-0030
by Beckhoff

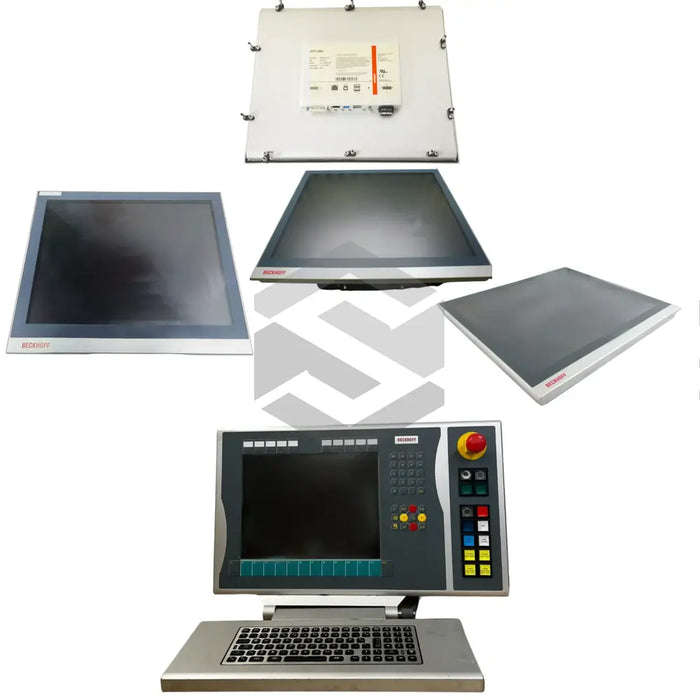

The Beckhoff CP7232-0001-0030 is a robust industrial panel PC in the CP Panel PC Systems series designed for demanding automation tasks. Equipped with an Intel processor with DDR4 RAM and operating on a nominal voltage of 24 V (range 22–30 VDC), it provides high-performance data processing and reliable signal transmission. The unit supports display options of up to 19-inch with a maximum resolution of 1280 x 1024 pixels, making it ideal for detailed human–machine interfaces (HMI) and visualization in harsh environments.
Incorporating comprehensive technical specifications, the CP7232-0001-0030 operates within an ambient temperature range of 0°C to +45°C and can be stored between –20°C and +65°C. It features a single 2.5-inch HDD/SSD slot for flexible storage and a CR2032 battery (nominal 3.0 V, weight 3.1 g) to retain BIOS settings and system time. Communication is ensured through Ethernet standards of 100Base-T, 1000Base-T, and 2500Base-T via an RJ45 interface. This panel PC meets stringent EMC requirements (EN 61000-6-4 for emission and EN 61000-6-2 for immunity) and delivers mechanical resilience with shock resistance to EN 60068-2-27 (5 G, 30 ms) and vibration resistance per EN 60068-2-6 (10–58 Hz: 0.035 mm; 58–500 Hz: 0.5 G).
Built to withstand industrial conditions, the CP7232-0001-0030 boasts an IP65 protection rating, ensuring full dust-tight sealing and water jet resistance. The device tolerates up to 95% relative humidity (non-condensing) and integrates specialized design elements that minimize oscillations and protect semiconductors and capacitors from voltage spikes. Conforming to IEC and EN mechanical and EMC standards, this panel PC delivers reliable uptime, precise control, and efficient data exchange for process automation, machine control, and factory monitoring applications, making it an indispensable asset in advanced industrial environments.
