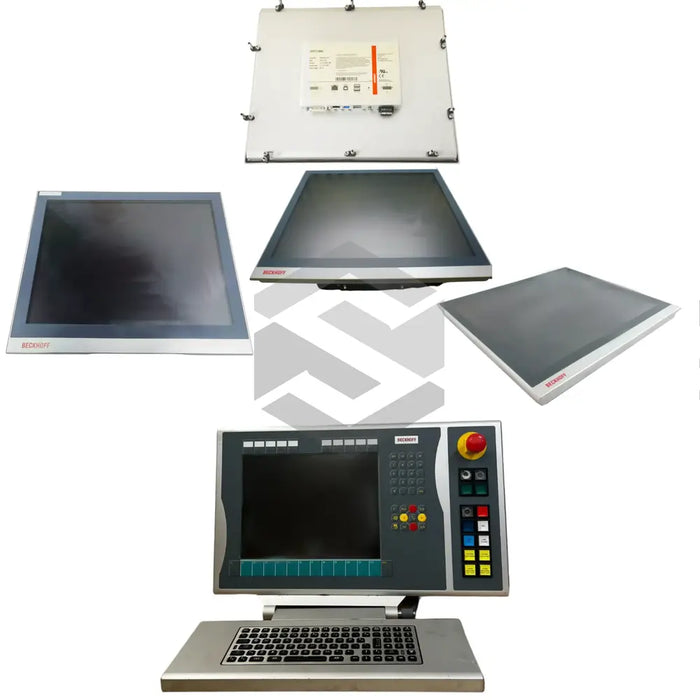

S image of CP7702-1420-0040

CP7702-1420-0040

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The CP7702-1420-0040 from Beckhoff features IP65 ingress protection and a wide supply voltage range of 22–30 VDC. Part of the CP Panel PC Systems, this panel PC utilizes an Intel® processor with DDR4-RAM and supports display resolutions up to 1280×1024.

It withstands ambient temperatures from 0 °C to 45 °C, supports up to 95% non-condensing humidity, and includes RS232 plus dual Ethernet interfaces. With shock resistance of 5 G and vibration resistance per EN 60068-2-6, it ensures reliable operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Display Sizes

12" (800x600), 15" (1024x768), 19" (1280x1024)

EMC Emission

EN 61000-6-4

EMC Immunity

EN 61000-6-2

Ingress Protection

IP65

Interfaces

RS232 (X100); PS (X101); Ethernet RJ45 (X102, X103)

Model

CP77xx

Operating Temp

0°C to 45°C

Pin Assignment

1: 24 V; 2: NC; 3: Ground; 4: NC

Processor & Memory

Intel® processor; DDR4 RAM

Relative Humidity

Max 95% (non-condensing)

Shock Resistance

5 G, 30 ms (EN 60068-2-27)

Storage Temp

-25°C to 65°C

Supply Voltage

22-30 VDC (24 VDC PSU, NEC Class 2)

Vibration Resistance

10-58 Hz: 0.035 mm; 58-500 Hz: 0.5 G (EN 60068-2-6)
