series image of CR06703-R

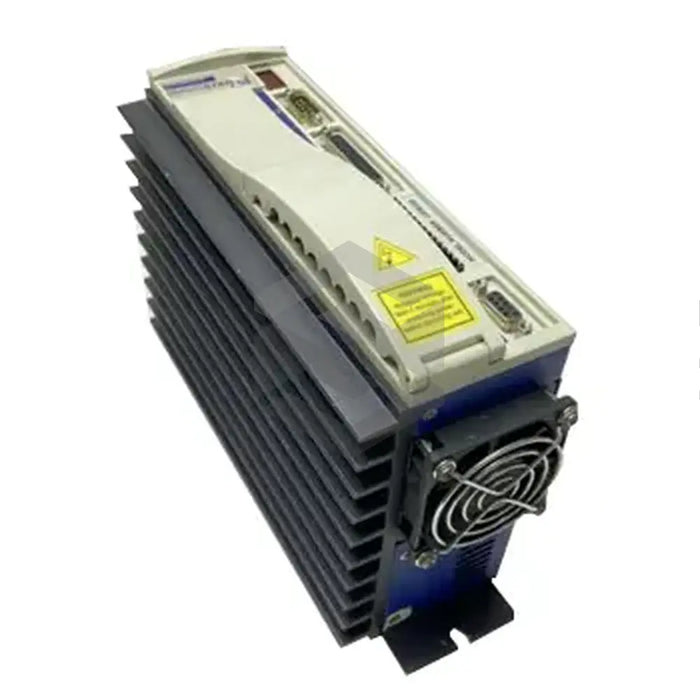

CR06703-R

by Kollmorgen
$1,158.40 - $1,158.40
$1,158.40
$1,158.40 - $1,158.40
$1,158.40
In Stock, Ships 1 - 2 Days
The Kollmorgen CR06703-R is a high-performance drive amplifier from the Servostar CD series. Designed for versatile industrial applications such as machine tools, packaging, electronic assembly, and document handling, it offers programming options through analog, serial and SERCOS interfaces. The amplifier relies on either single or multi-speed resolver feedback for accurate position monitoring of the motor shaft. Run with a resolution of 0.47 transformation ratio, a 4.25 Volts input voltage, 120 Ohms maximum resistance and 2 Volts AC output, it can support cable lengths up to 75 feet without performance loss. The CR06703-R operates within an ambient temperature range of 41 to 113 degrees Fahrenheit and has a vibration rating of 0.5 g. It includes safety features such as undervoltage, overvoltage, and overtemperature protection. It is important to ensure it is installed and operated by properly trained technicians.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Number: CR06703-R
  • Product Type: Drive Amplifier
  • Product Family: Servostar CD
  • Resolve Input Support: Yes
  • Transformation Ratio: 0.47
  • Modulation Frequency: 7 to 8 kilohertz
  • Input Voltage: 4.25 Volts
  • Maximum Resistance: 120 Ohms
  • Current: 55 milliamps
  • Output: 2 Volts AC
  • Max Cable Length Without Performance Degradation: 75 feet
  • Ambient Operating Temperature: 41 to 113 degrees Fahrenheit
  • Storage Temperature: 32 to 158 degrees Fahrenheit
  • Relative Humidity: 10 to 90% non-condensing
  • Maximum Operational Elevation: 3300 feet above sea level
  • Vibration Rating: 0.5 g
  • Undervoltage Protection Trigger: 90 Volts DC
  • Overvoltage Protection Trigger: 430 Volts DC
  • Overtemperature Threshold: 176 degrees Fahrenheit.
