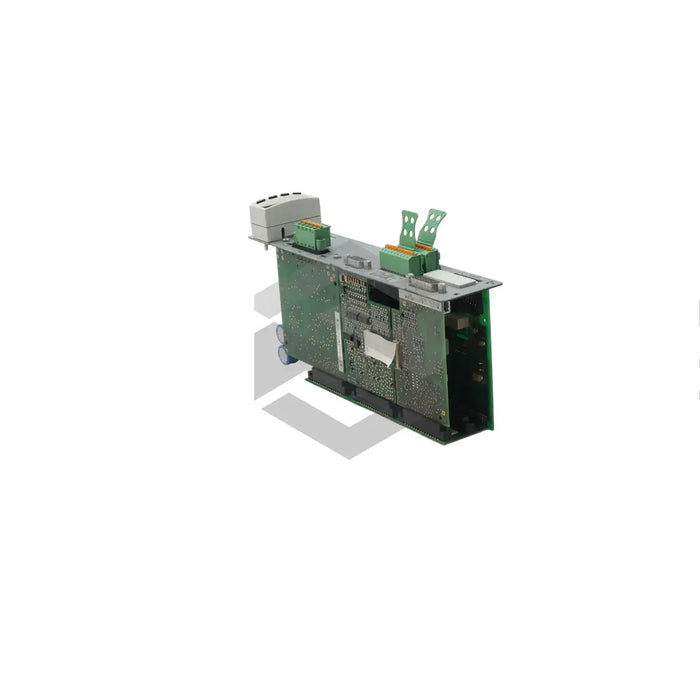

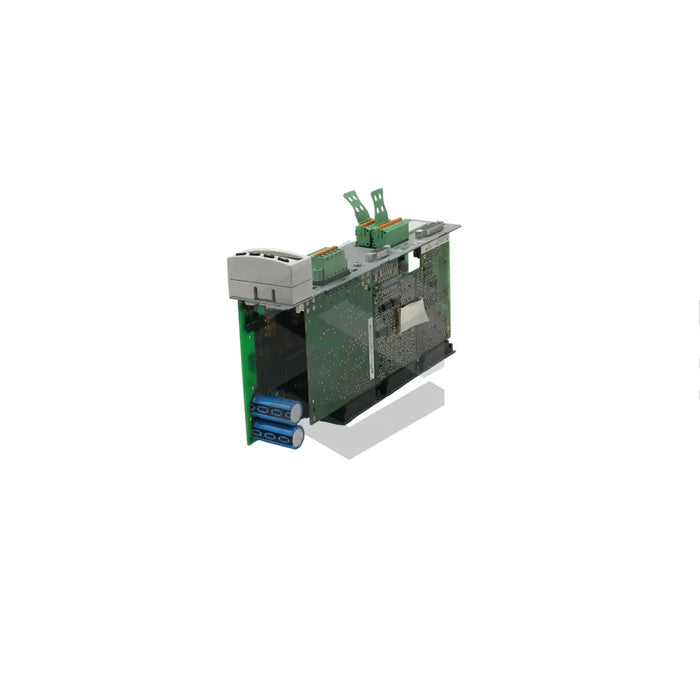

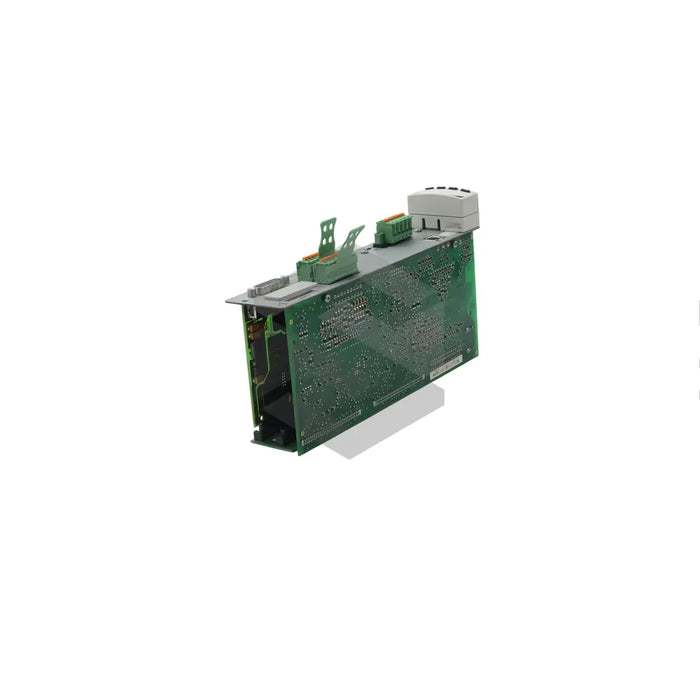

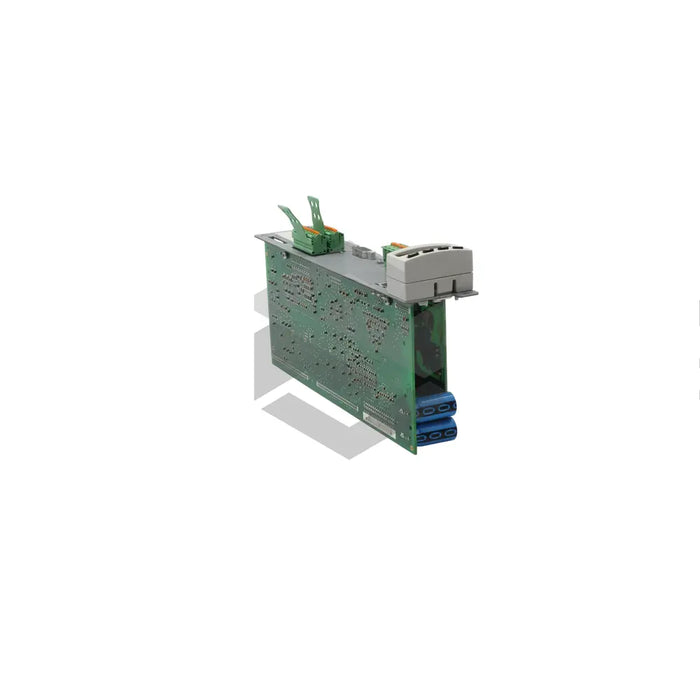

series image of CSB01.1C-PL-ENS-ENS-NN-S-NN-FW

CSB01.1C-PL-ENS-ENS-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSB01.1C-PL-ENS-ENS-NN-S-NN-FW is a key component of the Rexroth drive system provided by Bosch Rexroth Indramat, a prominent manufacturer of superior motion control systems. This model is a basic single-axis control unit with advanced firmware capabilities enhancing user interaction. The unit is equipped with a parallel interface master communication module, needing an 8 W power source. Its adaptable architecture allows convenience in system expansion without altering the control cabinet layout. Eight digital inputs and three configurable digital outputs facilitate connections with digital devices. Accompanying features include an RS232 serial interface, a SERCOS cycle time of minimum 1000 microseconds, an IndraDyn encoder as option 1, and an accessible user guide. The unit allows up to 20 mounting and dismounting cycles and must operate within safe voltage and current ranges. Firmware, purchased separately, provides additional features like an Encoder IndraDyn / Hiperface / 1 Vss / TTL option 2, and a switching frequency ranging from 2 kHz to 8 kHz.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Control sections, industrial servo motors, drive converters, professional industrial power equipment
  • Model: CSB01.1C-PL-ENS-ENS-NN-S-NN-FW
  • Function: Parallel interface master communication module
  • Power Source: 8 W
  • Structure: Basic single-axis control unit
  • Architecture: Modular
  • Features: Eight digital inputs, three digital outputs, RS232 serial interface
  • Output Configurations: Three digital outputs (configurable)
  • Interface: RS232 serial interface
  • SERCOS Cycle Time: At least 1000 microseconds
  • Encoder Option 1: IndraDyn
  • Use Limit: No more than 20 mounting and dismounting cycles
  • Firmware: Not included, must be ordered separately
  • Encoder Option 2: IndraDyn / Hiperface / 1 Vss / TTL
  • Switching Frequency: 2 kHz to 8 kHz
  • Product Testing: Products are tested to ensure full functionality and fault-free.
