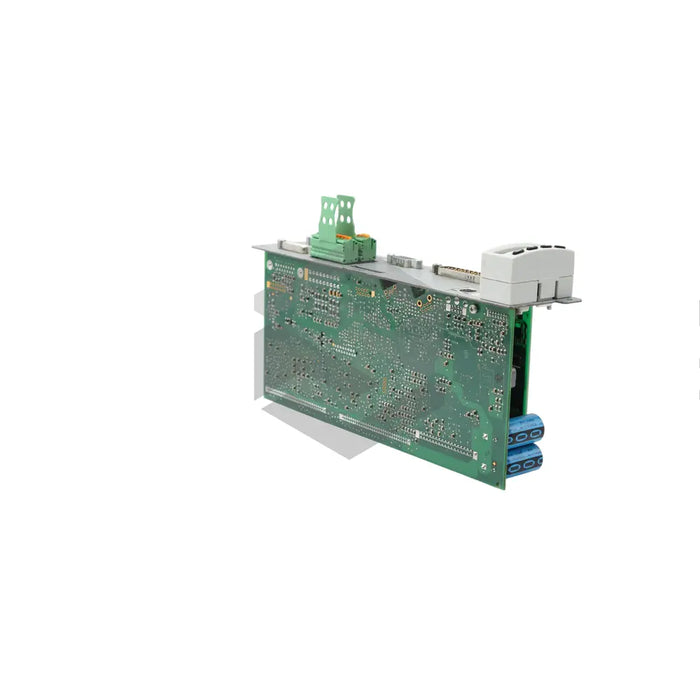

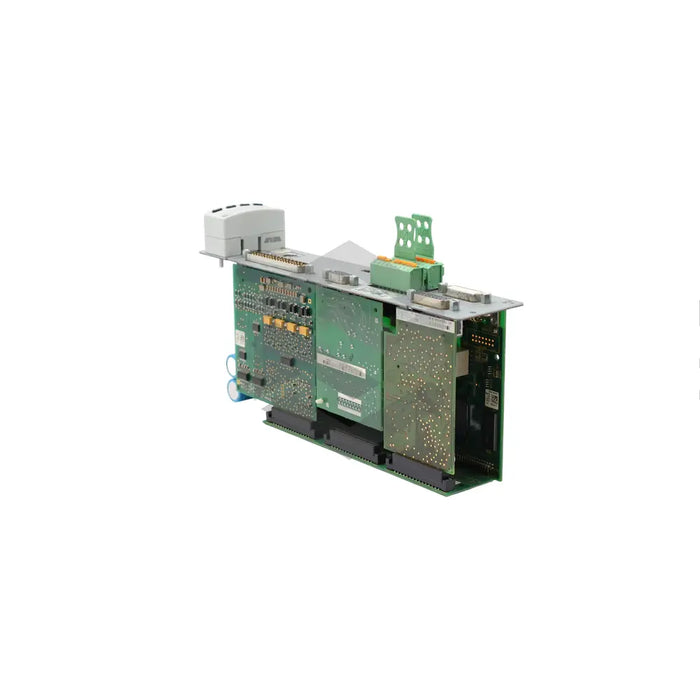

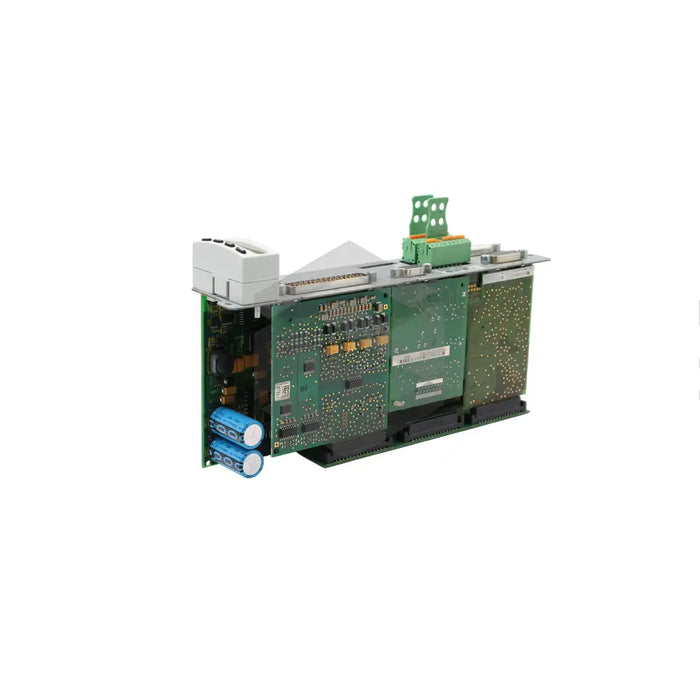

series image of CSB01.1C-PL-ENS-MA1-L1-S-NN-FW

CSB01.1C-PL-ENS-MA1-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSB01.1C-PL-ENS-MA1-L1-S-NN-FW, by Bosch Rexroth Indramat, is a digital control unit for IndraDrive controllers and is designed for single axis applications. Housing 16 digital inputs and outputs, grouped in sets of four each, the device comes with a parallel master communication interface. These I/O units require power from a 24V DC connection and are galvanically isolated from the control section. The device accommodates three slots, two for optional add-on modules and one for a safety unit capable of initiating a start lockout. Optional additions include an Analog I/O extension and a Hiperface protocol supporting IndraDyn encoder module. The CSB01.1C-PL-ENS-MA1-L1-S-NN-FW operates optimally between 0 to 40°C and at altitudes up to 1000 meters. It is advised that only trained personnel handle the devices and they should only be utilized for their designed purposes.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Control Section for IndraDrive Controllers
  • Category: Basic Universal Control Sections
  • Application: Single Axis
  • Master Communication Interface: Parallel Interface
  • Digital Inputs: 16
  • Digital Outputs: 16
  • Input/Output Grouping: 4 Inputs and 4 Outputs
  • Input/Output Isolation: Galvanically isolated from the control section
  • Power Requirement for Input/Output Group: 24 Volts DC
  • Slot Count: Three Slots (Two for optional modules and one for safety module)
  • Safety Module: Supports Starting Lockout
  • Optional Modules: Analog I/O extension and Encoder IndraDyn
  • Support Protocol: Hiperface
  • Configuration: Configurable
  • Control Panel: Standard, Does not support hot swap
  • Cooling Method: Convection cooled
  • Operational Temperature: 0 to 40 degrees Celsius
  • Recommended Installation Altitude: 0 to 1000 meters
  • Storage Temperature: -20 to 70 degrees Celsius
  • User Recommendation: Trained and qualified personnel
  • Approved Application: Yes
