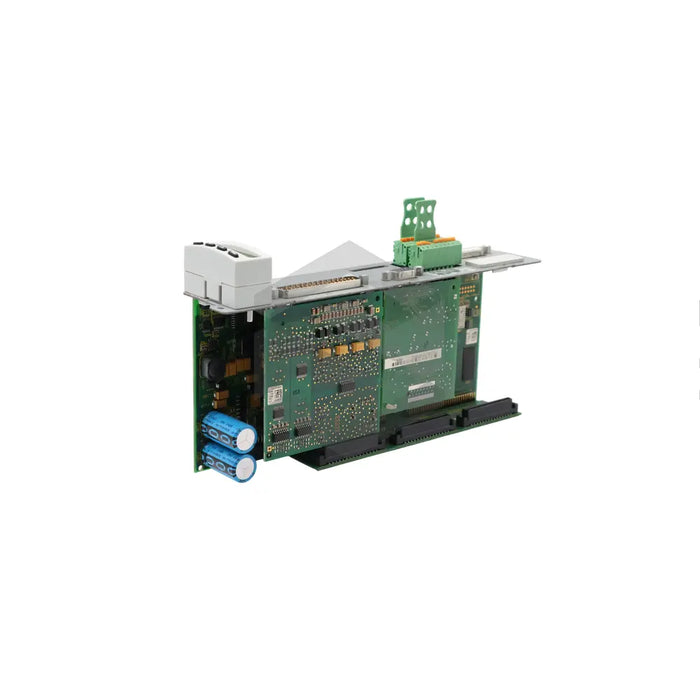

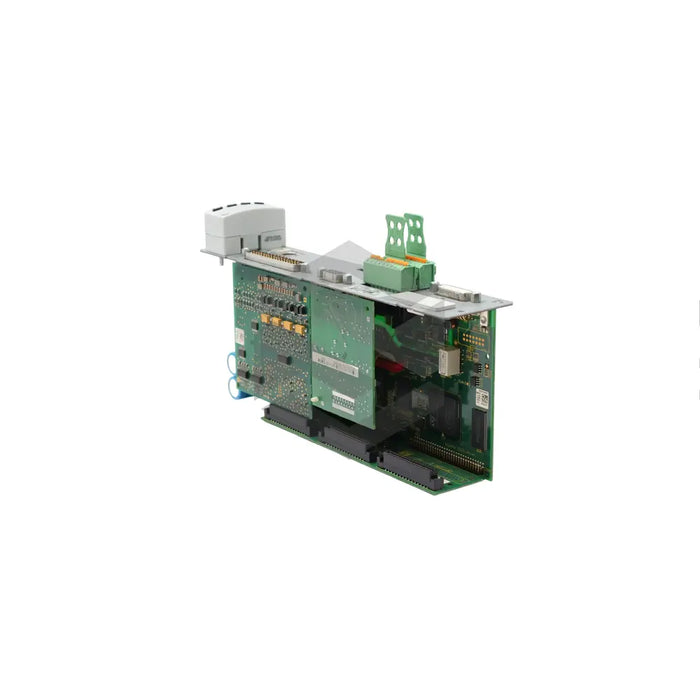

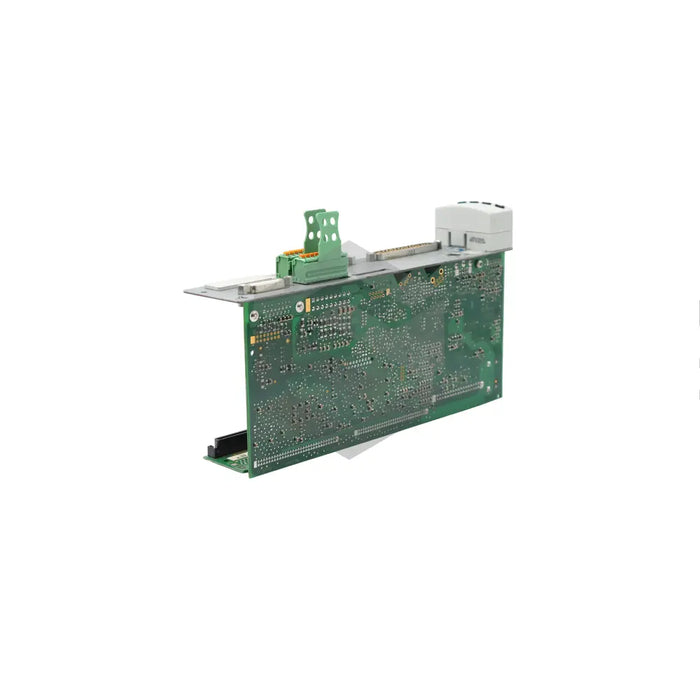

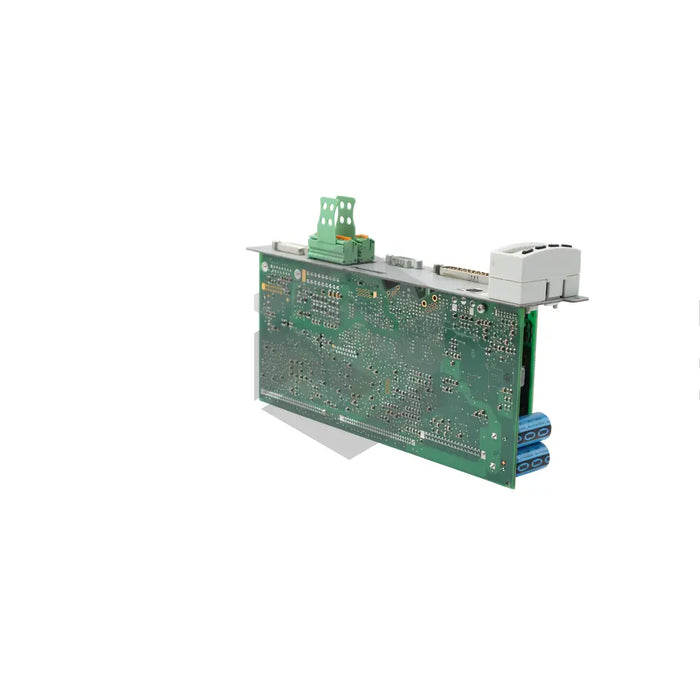

series image of CSB01.1C-PL-ENS-NNN-L2-S-NN-FW

CSB01.1C-PL-ENS-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSB01.1C-PL-ENS-NNN-L2-S-NN-FW is a compact and configurable drive system component developed by Bosch Rexroth. It's part of the highly efficient Rexroth IndraDrive system designed to address a variety of industrial automation challenges. As a single-axis control section in the BASIC UNIVERSAL series, it features a Parallel Interface module with 16 digital inputs and outputs organized into groups of four. This component can readily connect with diverse encoder systems supporting a voltage of 12V, and includes encoder systems like the IndraDyn S motors (MSK motors), the 5V-TTL square-wave encoder with reference track, and sin-cos encoders. Its safety module includes a Safe Torque Off option with a category 3 PL e/SIL 3 rating, and it also allows for firmware use. It's equipped with a standard user panel for easy diagnostics and navigation, and as a part of the Rexroth IndraDrive system, it meets IEC 61800‑3 category C3 requirements, ideal for industrial areas requiring high-frequency interference prevention.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CSB01.1C-PL-ENS-NNN-L2-S-NN-FW
  • Product Type: Single-Axis Control Section
  • Product Category: BASIC UNIVERSAL
  • Interface: Parallel Interface Module
  • Digital Inputs: 16
  • Digital Outputs: 16
  • Standard Encoder Evaluation Interface: Yes
  • Supported Encoder Systems: IndraDyn S motors (MSK motors), 5V-TTL square-wave encoder with reference track, sin-cos encoders (1 Vpp) with EnDat 2.1 or Hiperface, sin-cos encoder (1 Vpp) with reference track
  • Safety Module: Safe Torque Off
  • Safety Category Rating: 3 PL e/SIL 3
  • Firmware: Supported (separate order)
  • User Panel: Standard, single-line display with four keys
  • Diagnostics: Supported
  • Suitable Environments: Industrial Areas to prevent high-frequency interference
  • IEC 61800-3 Category: C3
