CSB01.1C-S3-ENS-NNN-NN-S-NN-FW

Original price $2,433.21 - Original price $2,433.21
Original price
$2,433.21
$2,433.21 - $2,433.21
Current price $2,433.21
In Stock, Ships Today
Request a quote

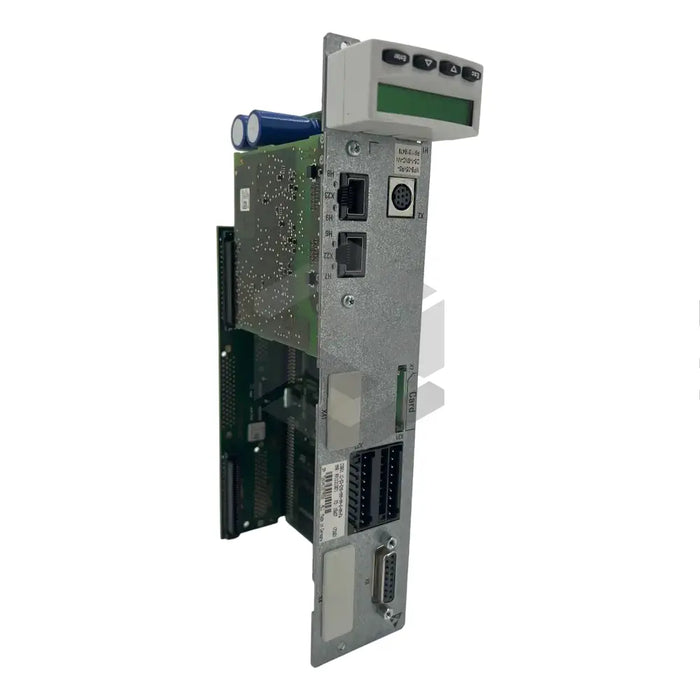

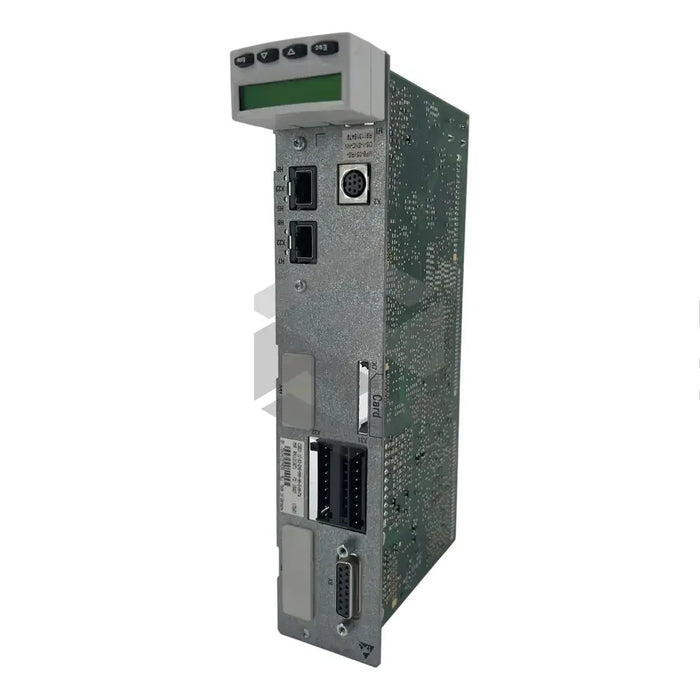

The Bosch Rexroth Indramat CSB03.1C-S3-ENS-NNN-NN-S-NN-FW is a high-performance, single-axis control unit designed for precise control over velocity, current, and position in various motion control applications. It has the advantage of having three digital inputs and swift reaction times due to short cycle times of 500 & 1000 µs for position control, 125 µs for current control, and 250 & 500 µs for velocity control. This unit operates with multiple switching frequencies such as 2, 4, and 8 kHz. Communication is provided through the Sercos III interface. Several encoder options, including HiperFace, TTL, 1 Vpp, and Indradyn, are compatible with this unit. It operates on 8W power but requires a 24W DC connection. This system includes an RS232 serial interface for additional connectivity, a memory card slot for storing critical parameters, and a configuration slot for safety technology.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Unit
  • Control Type: Velocity, Current, Position
  • Digital Inputs: 3
  • Position Control Time: 500 & 1000 µs
  • Current Control Time: 125 µs
  • Velocity Control Time: 250 & 500 µs
  • Switching Frequencies: 8 kHz, 4 kHz, 2 kHz
  • Communcation Interface: Sercos III Interface
  • Supported Encoders: HiperFace, TLL, 1 Vpp, Indradyn
  • Operating Power: 8 W
  • Required Power: 24 W DC Connection
  • Inrush Current (Max Pulse Width 100ms): 4.5 A
  • Additional Interface: RS232 Serial Interface
  • Memory Card Slot: Yes
  • Configuration Slot (Safety Technology): Yes
