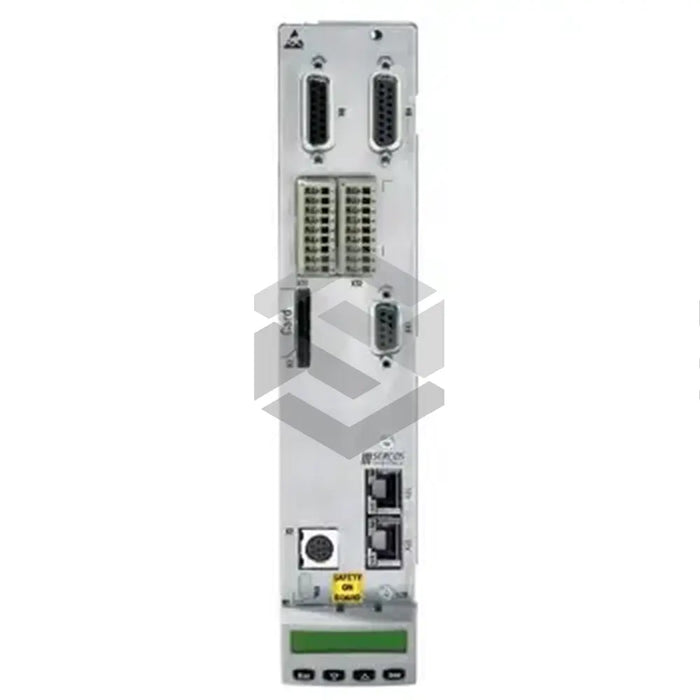

CSB02.1A-ET-EC-NN-NN-NN-NN-AW

Request a quote
The CSB02.1A-ET-EC-NN-NN-NN-NN-AW, a state-of-the-art control section produced by industry-leading automation product provider Bosch Rexroth Indramat, is a critical component of the drive controller. Featuring an array of interfaces and ports, the model boasts varied cycle times and a current velocity of 62.5 - 125. Suited for applications in numerous industrial sectors, the control unit includes seven digital input terminals and one 10V analogue input, with an additional two slots for optional modules. A specialized control panel facilitates easy set-up and configuration but will require the expertise of a seasoned service technician or commissioning expert before use. This model also includes the advanced features of encoder evaluation and multi-ethernet support. Compact, with dimensions of 103mm x 241mm x 49.5mm, and lightweight, it can be installed easily into the drive controller housing. Cooling is achieved through natural or forced convection methods while high-frequency emitting devices should be kept clear of the control section.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Sections
  • Model: CSB02.1A-ET-EC-NN-NN-NN-NN-AW
  • Interface Equipment: Basic scope
  • Cycle Times Current Velocity: 62.5 - 125
  • Cycle Times Position Control: 500 - 250
  • Cycle Times Speed Control: 125 - 250
  • Applications: Handling and mounting assemblies, Printing and packaging machines, Machine tools
  • Digital Input Terminals: 7 (2 can be utilized as probes)
  • Analog Input: 1 (10V)
  • Optional slots for modules: 2
  • Configuration: Must be done by a service technician or commissioning expert
  • Physical Dimensions: 103mm x 241mm x 49.5mm
  • Cooling Method: Natural or forced convection
  • Communication: Encoder Evaluation (EC), Multi-ethernet support as a master communication
  • Installation: Mounting into the specified position in the drive controller housing. Avoid proximity with devices emitting high-frequency electromagnetic waves.
