series image of CSB02.1B-ET-EC-CN-S4-EM-NN-FW

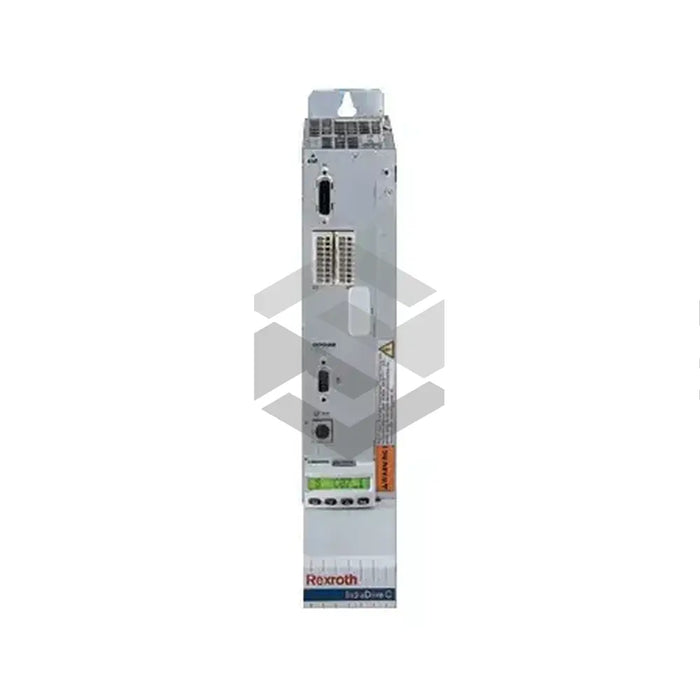

CSB02.1B-ET-EC-CN-S4-EM-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat CSB02.1B-ET-EC-CN-S4-EM-NN-FW is a high-functionality single-axis control section. It provides support for 11 digital inputs, 5 digital inputs/outputs, between 1 to 3 analog inputs, and 2 analog outputs. Its control cycles times range from 62.5 to 500 microseconds for differing functionalities. This device can facilitate Multi-Ethernet master communication and compatible with a standard control panel. The CSB02.1B-ET-EC-CN-S4-EM-NN-FW features three optional slots including a multi-encoder interface, a CANopen interface, and a safe motion module. An additional slot holds an encoder emulation module. This product requires an independent firmware order, operates on a 24 Volts DC power supply, and consumes 17 watts. It is crucial that mounting/dismounting is executed by trained personnel. The device dimensions measure 241 x 49.5 x 103 millimeters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Single-axis control section with extended scope
  • Optional Slots: 3
  • Digital Inputs: 11
  • Digital Inputs/Outputs: 5
  • Analog Inputs: 1 to 3
  • Analog Outputs: 2
  • Current Control Cycles Times: 62.5 /125 microseconds
  • Velocity Control Cycle Times: 125 / 250 microseconds
  • Position Control Cycle Times: 250 / 500 microseconds
  • Communication Cycle Times: 250 / 500 microseconds
  • Master Communication Supported: Multi-Ethernet
  • Control Panel Compatibility: Standard control panel (not compatible with advanced control panel)
  • Slot 1 Feature: Multi-encoder interface
  • Slot 2 Feature: CANopen interface
  • Slot 3 Feature: Safe motion module (Reserved for safety technology)
  • Slot 4 Feature: Encoder emulation module
  • Firmware: Ordered Separately
  • Dimensions: 241 x 49.5 x 103 millimeters
  • Operational Voltage: 24 Volts DC
  • Power Consumption: 17 Watts
  • Maximum Inrush Current: 5 Amps
  • Maximum Pulse Width: 1 millisecond
  • Module Power Consumption: CANopen: 1.5 Watts, Safe motion: 2.5 Watts, Multi-encoder: 1.1 Watts, Encoder emulation: 1.2 Watts
  • Mounting: On power section
  • Installation: To be performed by trained personnel.
