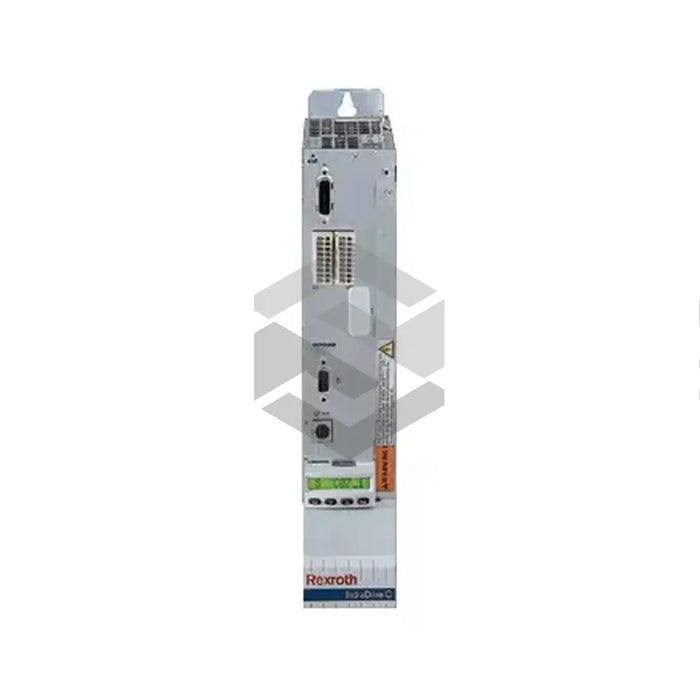

series image of CSB02.1B-ET-EC-EC-S4-DA-NN-NW

CSB02.1B-ET-EC-EC-S4-DA-NN-NW

by Bosch Rexroth Indramat
Request a quote
Manufactured by Bosch Rexroth Indramat, the CSB02.1B-ET-EC-EC-S4-DA-NN-NW is a digital control section specifically designed for IndraDrive controllers. This model is differentiated by its integrated Multi-Ethernet interface and three optional slots. It offers 11 digital inputs, two digital probes, five customizable digital inputs/outputs, and two analog outputs. Cycle times for this control section depend on the firmware version, ranging from 62.5 to 500 microseconds. The CSB02.1B-ET-EC-EC-S4-DA-NN-NW also has two multi-encoder interface modules, a safe motion module, and a digital/analog I/O extension module. Specifically created for single-axis control applications, this compact unit measures 241 x 49 x 103 mm and operates on 24 Volts DC power, consuming 17 Watts from the controller power section. Communication with the unit is facilitated by spring or screw terminal blocks, depending on the specific application's requirements.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CSB02.1B-ET-EC-EC-S4-DA-NN-NW
  • Product Type: Digital Control Section for IndraDrive Controllers
  • Configurability: From Standard Control Panel
  • Interface: Integrated Multi-Ethernet
  • Optional Slots: 3
  • Integrated I/Os: 11 Digital Inputs, 2 Digital Probes, 5 Arbitrary Digital Inputs/Outputs, 2 Analog Outputs
  • Supported Cycle Times: 62.5/125 microseconds (current control), 125/250 microseconds (velocity control), 250/500 microseconds (position and communication control)
  • Optional Modules: 2 Multi-Encoder Interface Modules, Safe Motion Safety Module, Digital/Analog I/O Extension Module
  • Design Application: Single-Axis Control
  • Dimensions: 241 x 49 x 103 millimeters
  • Power Draw: 17 Watts at 24 Volts DC
  • Power Draw (Multi-Encoder Module): 1.1 Watts
  • Power Draw (Safe Motion Module): 2.5 Watts
  • Accessories: Safety Zone Module, Control Module for Inductive Loads
  • Connection Points: Spring Terminals and Screw Terminal Blocks
  • Wiring: With or Without Ferrules (Spring Terminals), With Ferrules (Screw Terminal Blocks).
