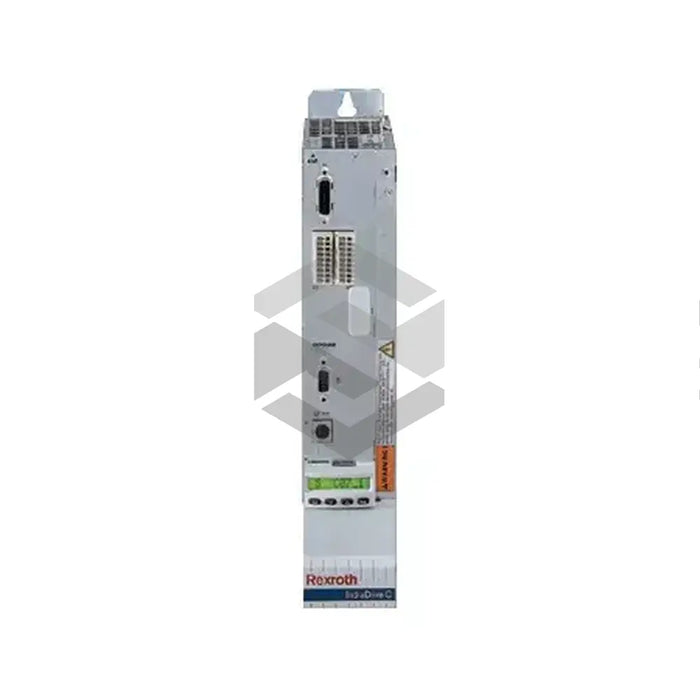

series image of CSB02.1B-ET-EC-EC-S4-EC-NN-FW

CSB02.1B-ET-EC-EC-S4-EC-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSB02.1B-ET-EC-EC-S4-EC-NN-FW, produced by Bosch Rexroth Indramat, is a control unit designed for IndraDrive series drive controllers. Engineered for single-axis control, this device boasts a variety of control communication, encoder interfaces, and eleven digital inputs, two of which can be utilized as touch probes. Equipped with five configurable digital inputs/outputs, the unit also includes one ±10V analog input, two analog inputs of ±10V / 0 to 10 mA, and two ±10V analog outputs. The unit has a solitary relay output and supports Multi-Ethernet communication. Featuring an integrated multi-encoder interface module and two optional ones, the safety module slot accommodates a safe motion module. The software for this device needs to be purchased separately. The control unit, which is powered by a power section supplying 24V DC, uses 17 Watts of power and measures 241 x 49.5 x 103 mm. It is cooled by natural convection and should be configured from a standard control panel before being switched on. Furthermore, the CSB02.1B-ET-EC-EC-S4-EC-NN-FW is commissioned using a PC and the IndraWorks program. The IndraDrive controllers must be programmed before commissioning.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Suited For: Single-axis Control Applications
  • Control Communication & Encoder Interfaces: Supported
  • Digital Inputs: 11
  • Touch Probes: 2
  • Configurable Digital Inputs/Outputs: 5
  • ±10V Analog Input: 1
  • ±10V /0 to 10 Milliamps Analog Inputs: 2
  • ±10V Analog Outputs: 2
  • Relay Outputs: 1
  • Communication Option: Multi-Ethernet
  • Multi-encoder Interface Modules: Integrated and Two Optional
  • Safety Module: Safe Motion Module
  • Firmware: Modular (Ordered Separately)
  • Power Supply: 24 Volts DC from Power Section
  • Power Consumption: 17 Watts
  • Dimensions: 241 x 49.5 x 103 millimeters
  • Cooling Method: Natural Convection
  • Device Configuration: Standard Control Panel with Single-line Display (Connected Prior to Switching On)
  • Control Panel Display: Warnings, Error Diagnoses, Operating States
  • Control Panel Command Keys: 4
  • Commissioning: Via PC running IndraWorks software program
  • Required Programming: Prior to Commissioning (IndraDrive controllers)
