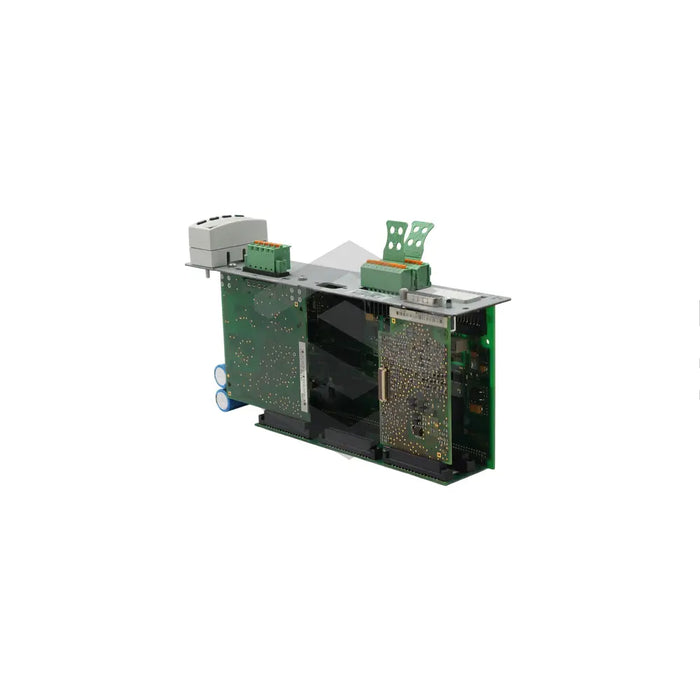

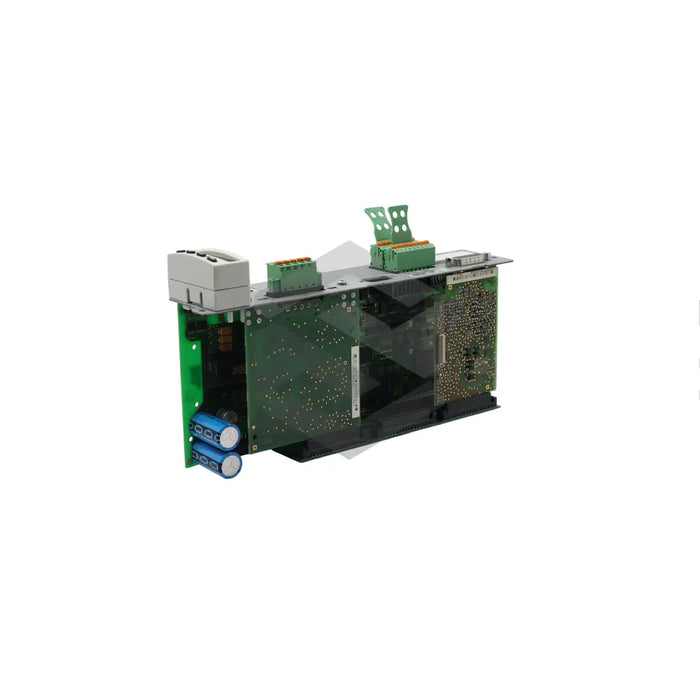

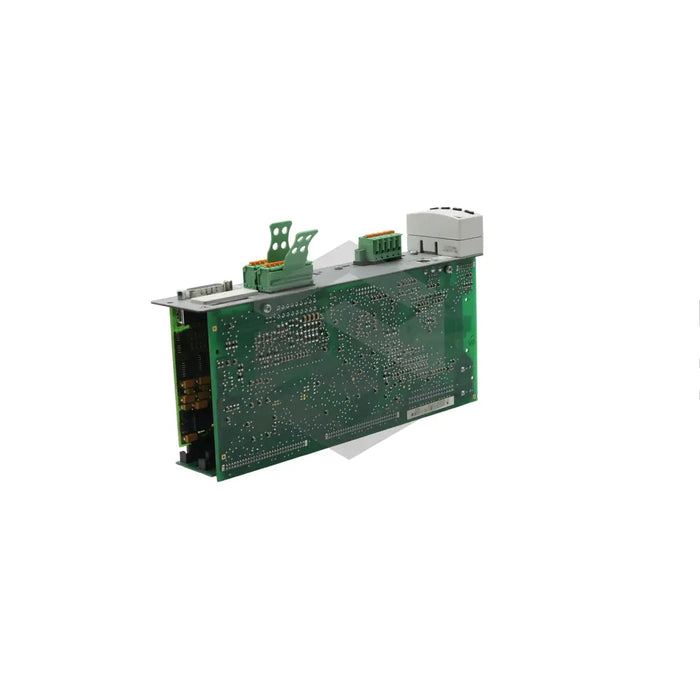

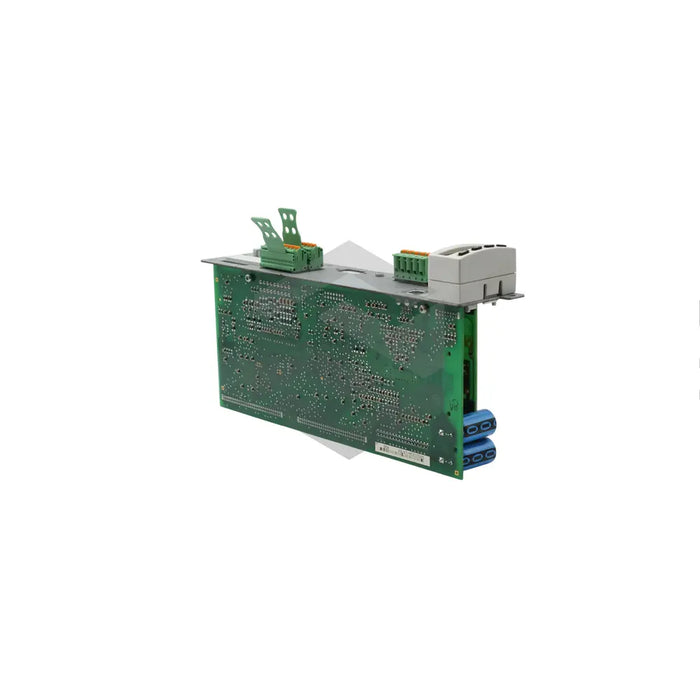

subseries image of CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW

CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW is an advanced control module created by Bosch Rexroth Indramat. Integrated within the proven IndraDrive controllers, this module is favored within sectors like handling machines, machine tools, paper processing, and packaging equipment due to its configurable single-axis control and versatility. The module boasts seven to eleven digital inputs, four combined I/Os, and a single analog input, operated at multiple switching frequencies ranging from 2 kHz to 16 kHz. The rapid response times are attributed to short control cycles, ranging from 62.5 to 125 us with a minimum sercos cycle time of 250 us. This implies swift communication facilitated by a state-of-the-art CANopen/DeviceNet interface. The model also has modular capabilities for customized function enhancements, including options for Fieldbus communication.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CSH01.1C-CO-EN1-NNN-NNN-NN-S-NN-FW
  • Product Category: Advanced Control Module
  • Component: Separate control section
  • Application: Handling machines, machine tools, paper processing and paper printing machines, mounting systems, food machines, and packaging equipment
  • Axis: Configurable Single Axis
  • Feature: Configuration slot for safety technology
  • Interface: Serial interface RS232
  • Digital Inputs: 7 to 11
  • Combined I/Os: Four
  • Analog Inputs: Single
  • Switching Frequencies: 16 kHz, 12 kHz, 8 kHz, 4 kHz, 2 kHz
  • Current Control Time: 62.5 us to 125 us
  • Minimum Sercos Cycle Time: 250 us
  • Master Communication Interface: CANopen/DeviceNet
  • Encoder Option: HSF/RSF
  • Additional Functionality: Installation of different functional modules for specific functions
  • Communication: Module can be installed for communication via Fieldbus
