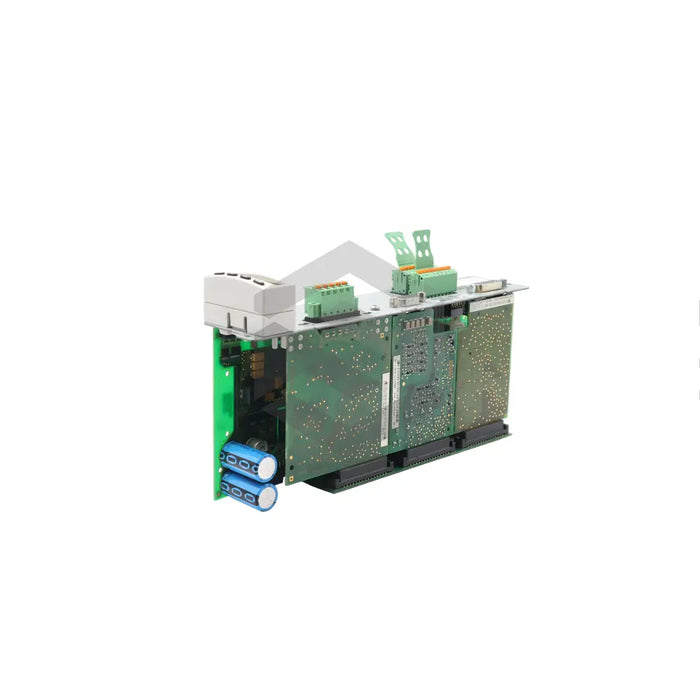

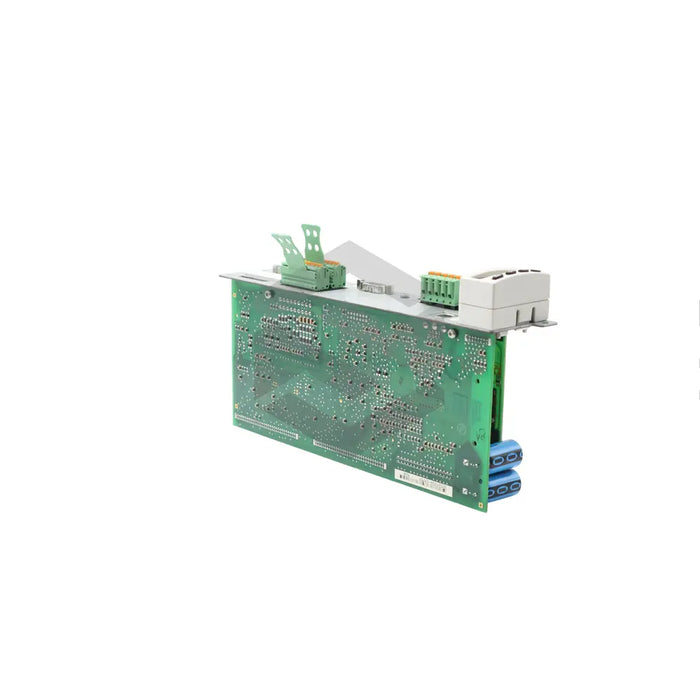

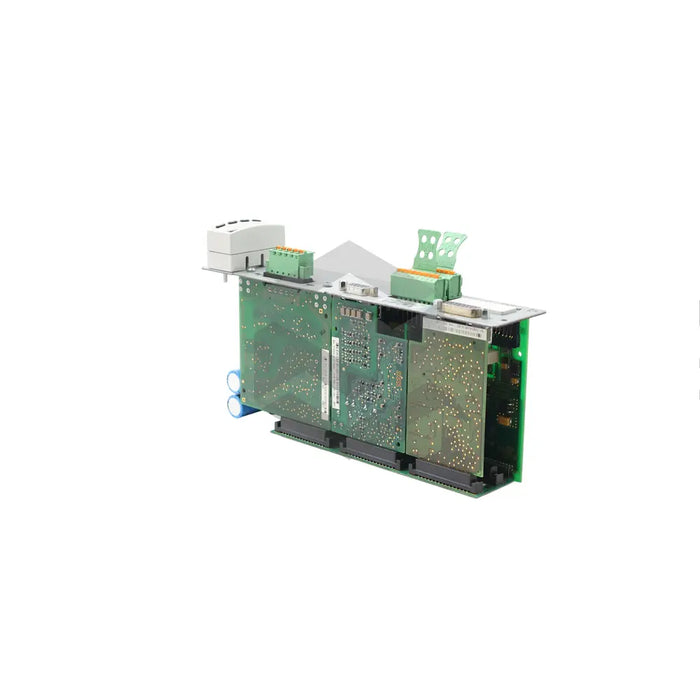

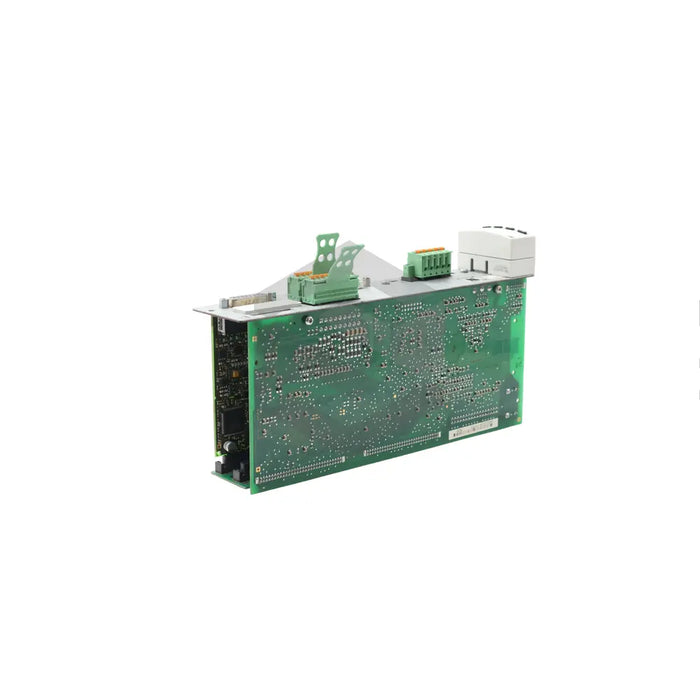

subseries image of CSH01.1C-CO-EN2-NNN-NNN-L2-S-NN-FW

CSH01.1C-CO-EN2-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-CO-EN2-NNN-NNN-L2-S-NN-FW is a highly advanced control section from Bosch Rexroth Indramat's distinctive CSH01 product series. Designed for integration with power sections, it operates with HCS02, HCS03, and all HMS drive controllers. This control section offers optimal control communications via DeviceNet and CANopen and includes a standard 5-pin connector. It boasts a circuit board power consumption of 7.5 Watts, inrush current of 4 Amperes, and employs an EnDat 2.1, 1Vpp, 5V TTL encoder interface. It is equipped with an operative panel that displays operational state, warnings, diagnoses and operational guidelines. The unit can tolerate transport temperatures of -25 to 70 degrees C and storage temperatures of -25 to 55 degrees C, while maintaining optimum operating temperatures of 0 to 40 degrees C. It is designed for control cabinet installation and possesses an IP 20 protection class.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CSH01
  • Usage: Drive controls operation for HCS, HMS, and HMD drive controls
  • Compatibility: HCS02, HCS03 and all HMS drive controllers
  • Safety Technology: Optional
  • Control Communications: DeviceNet, CANopen with open-style 5-pin connector
  • Power Consumption: 7.5 Watts
  • Inrush Current: 4 Amperes
  • Encoder Interface: EnDat 2.1, 1Vpp, 5 V TTL
  • Operating Panel: Standard
  • Maximum Pulse Width: 100 ms
  • Transport Temperature Range: -25 degrees C to 70 degrees C
  • Storage Temperature Range: -25 to 55 degrees C
  • Mounting: Designed for mounting in a control cabinet
  • Operating Temperature Range: 0 to 40 degrees C
  • Installation Altitude: Below 1000 meters for nominal data operation
  • Protection Class: IP 20
  • Climatic Category: 3K3 according to IEC 721
