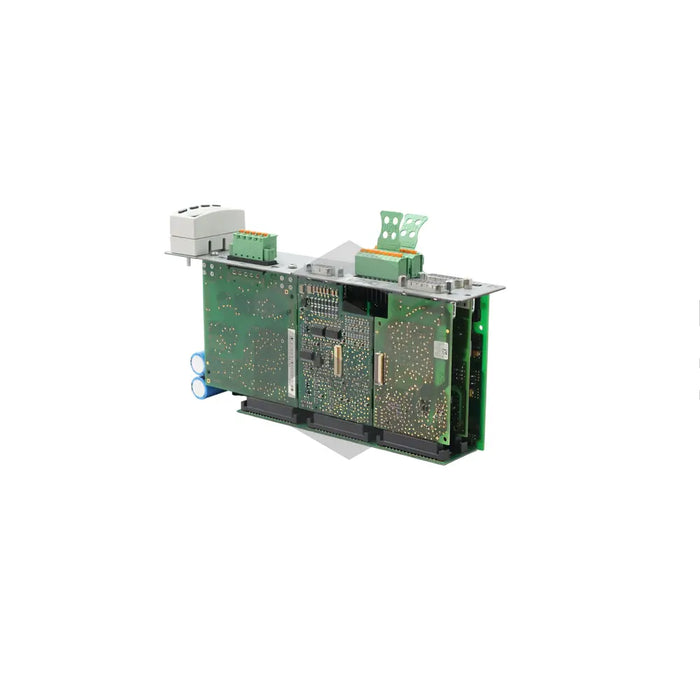

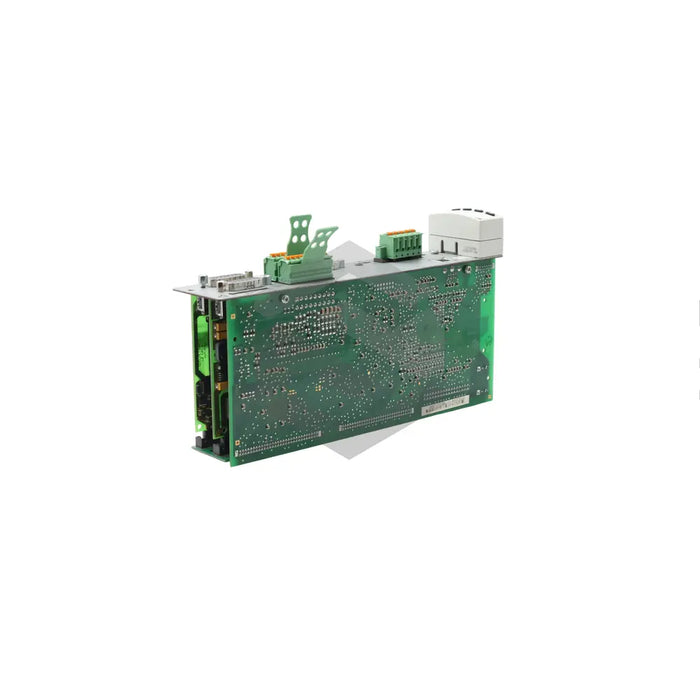

S image of CSH01.1C-CO-ENS-EN2-NNN-S2-S-NN-FW

CSH01.1C-CO-ENS-EN2-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The CSH01.1C-CO-ENS-EN2-NNN-S2-S-NN-FW is a sophisticated control section produced by Bosch Rexroth Indramat, designed for single-axis configuration requirements. A key member of Bosch Rexroth's CSH series, it features a single configuration slot and embedded safety technology. Correct installation requires a vertical orientation, and the device offers an X7 connector for memory card input. A protective diode shields the control section from reversed polarity or incorrect connection in the supply voltage, while the inclusion of four digital inputs or outputs and four option slots maximize user flexibility. Despite supporting five unique switching frequencies and housing two analog outputs, the device is compact, measuring 241 x 103 x 49.5mm. The unit cannot be paired with Bosch Rexroth's VCP series control panel and the firmware for this control section is sold separately. Lastly, the unit's H1 connection point serves as the control panel interface.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-CO-ENS-EN2-NNN-S2-S-NN-FW

Product Type

Control Section

Series

CSH

Axis

Single

Configuration Slot Count

One

Safety Technology

Included

Installation Orientation

Vertical

Connectors

X7 Memory Card Connector, X2 Serial Interface Connector

Compatibility

Bosch Rexroth Drive Controllers

Protection Features

Protective Diode Against Polarity Reversal and Incorrect Connection

Digital Inputs or Outputs

Four, Combineable

Option Slots

Four

Line Code

01

Switching Frequencies Supported

Five

Minimum SERCOS Cycle Time

250μs

Analog Outputs

Two

Dimensions

241 x 103 x 49.5mm

Control Panel Compatibility

Incompatible with VCP Series Comfort Control Panel

Firmware

Sold Separately

Primary Control Interface

H1 Connection Point Interface
