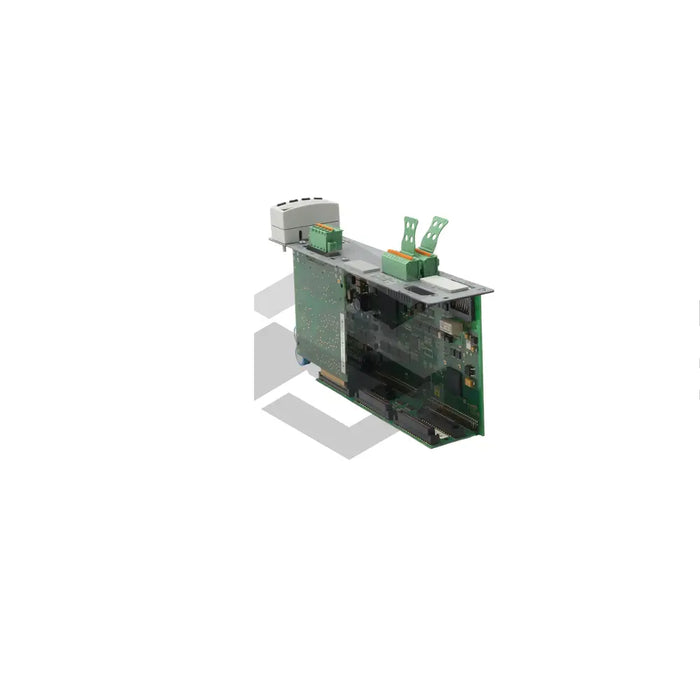

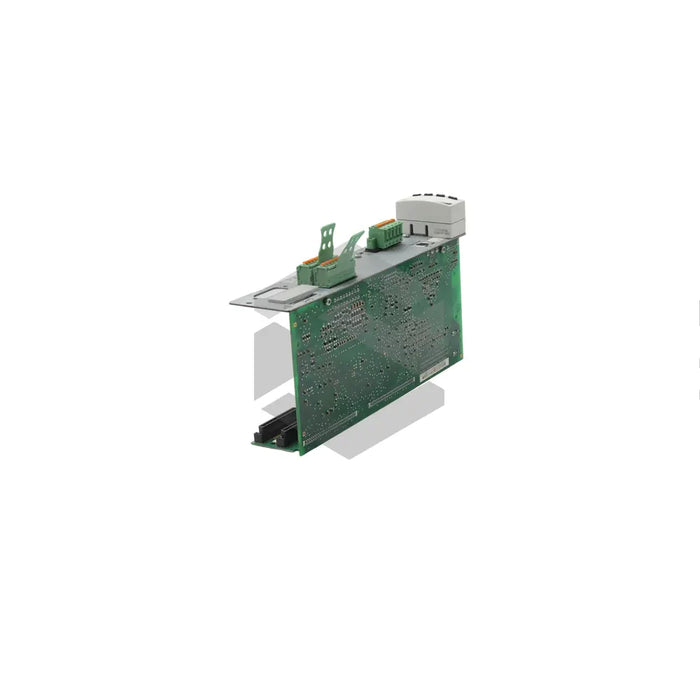

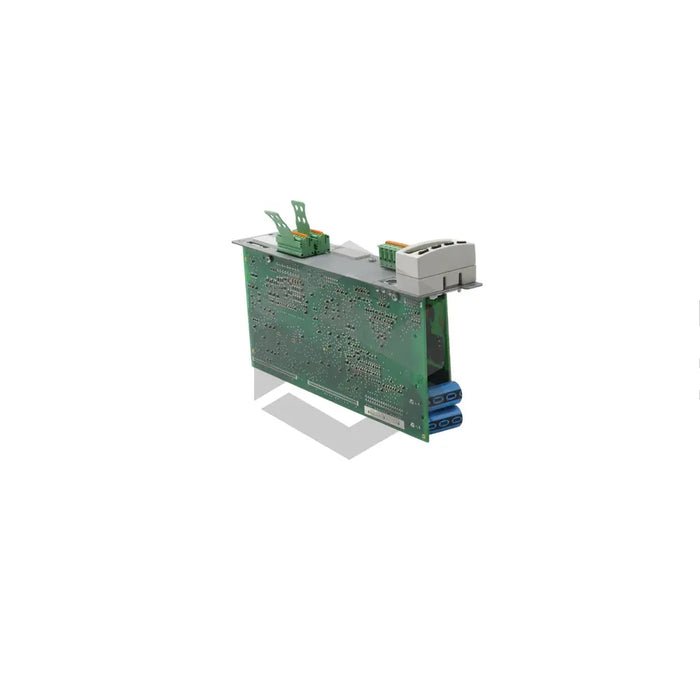

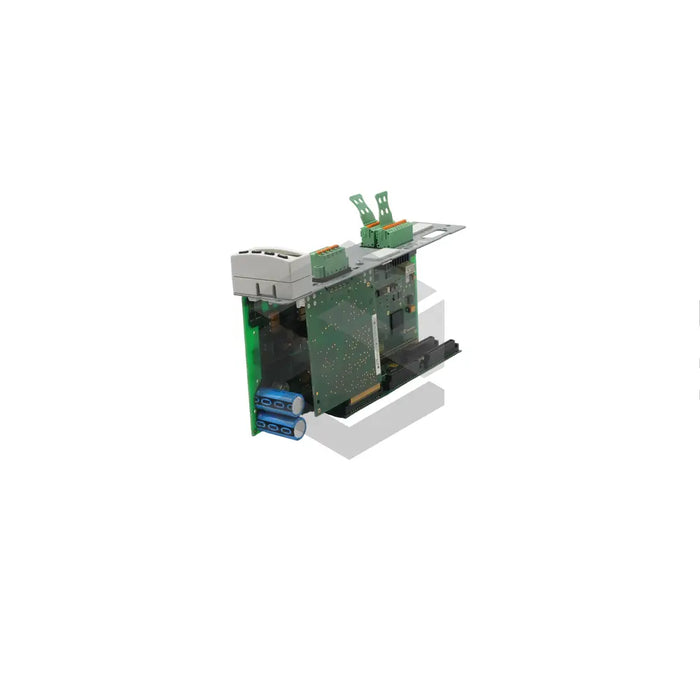

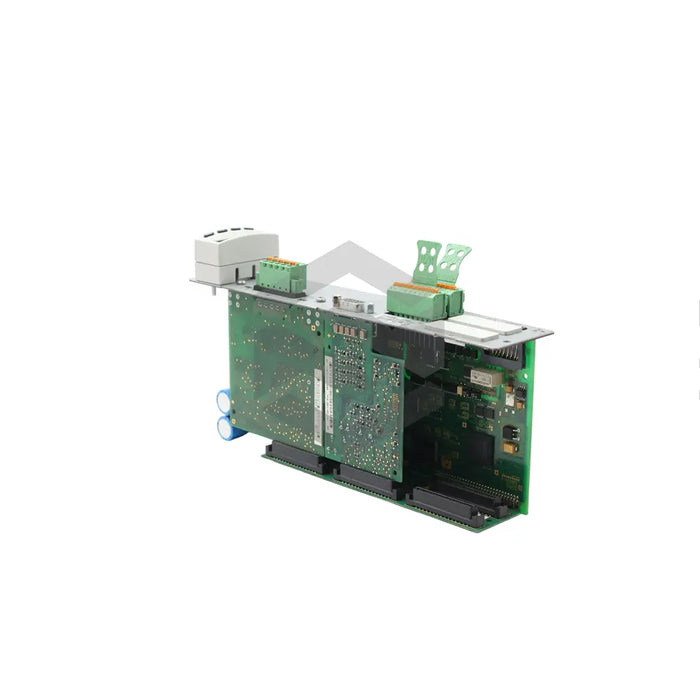

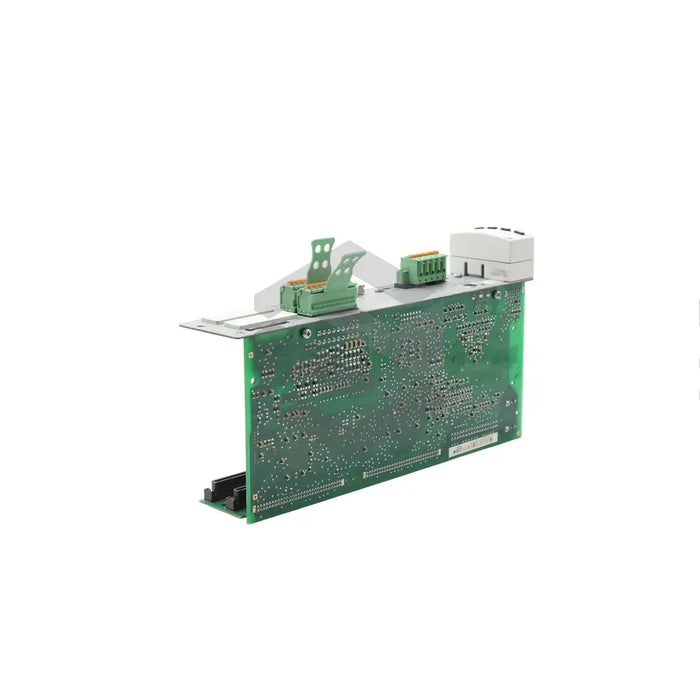

subseries image of CSH01.1C-CO-NNN-NNN-NNN-L2-S-NN-FW

CSH01.1C-CO-NNN-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-CO-NNN-NNN-NNN-L2-S-NN-FW is a control section for IndraDrive systems produced by Bosch Rexroth Indramat. This versatile, user-configurable control device boasts a standard control panel, facilitating effortless monitoring of parameter configurations, error detection, and warning alerts. Using the interface, users can make simple command executions, drive address settings, position data references, error memory reviews, and set analog outputs. A standout feature is its Safe Torque Off component, an emergency stop method that cuts power from the drive output and safely coasts the motor to stop. This product can also be fitted with three optional modules, sold separately. Additionally, users must order firmware independently due to Bosch's extensive range of firmware that supports different controller features. The CSH01 product must also be mounted on a power section by trained personnel, with a limit of 20 mountings and dismountings. ESD precautions are vital for this product's longevity.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: CSH01.1C-CO-NNN-NNN-NNN-L2-S-NN-FW
  • Product Type: Control Section for IndraDrive systems
  • Control Panel: Standard, allows monitoring parameters, errors, and warnings
  • Control Panel Functionality: Setting drive address, setting position data reference, viewing error memory, setting analog outputs
  • Safety Feature: Safe Torque Off, Emergency stop allowing motor coasting to a stop
  • Optional Modules: Does not feature any
  • Firmware: Ordered separately
  • Installation: On a power section by a trained personnel
  • Mounting/Dismounting: Not recommended more than 20 times
  • Handling Precautions: ESD precautions and conductive packaging requirement during transport
  • Master Communication: CANopen/DeviceNet
  • Identification: A type plate with part number, serial number and hardware index
  • Firmware Identification: Firmware type plate including bar code, type, factory identifier and serial number.
