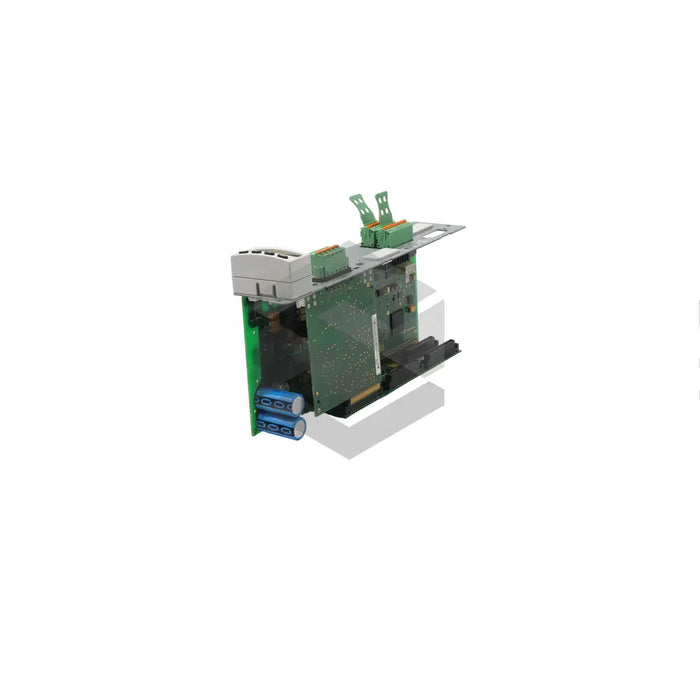

C image of CSH01.1C-CO-NNN-NNN-NNN-NN-S-NN-FW | Main (Front Left)

CSH01.1C-CO-NNN-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The CSH01.1C-CO-NNN-NNN-NNN-NN-S-NN-FW, a product of Bosch Rexroth Indramat, is a state-of-the-art, configurable control section specifically constructed for IndraDrive controllers. This unit, which should be assembled onto a power section by a trained professional, has a mounting limit of 20 times to maintain its longevity. It offers four module slots, one being designated for safety options such as safe torque off, safe motion, starting locket, and safety technology I/O, while the remaining three are available for various plug modules. Located on the device's front panel, these slots stand alongside other interfaces including digital and analog inputs/outputs, voltage inputs, and a serial interface. This controller also includes a standard control panel and a memory card slot. However, the firmware has to be ordered separately. With a height of 241mm, a depth of 103mm, and a width of 49.5mm, the unit's effectiveness hinges on correct installation and operation by trained individuals.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-CO-NNN-NNN-NNN-NN-S-NN-FW

Type

Control Section

Use

Component of IndraDrive controllers

Mount Requirements

Requires power section

Mount Limitations

Cannot be mounted/dismounted more than 20 times

Slots

Four for optional modules

Safety Options

Safe torque off, safe motion, starting locket, safety technology I/O

Module Information

All slots empty, positioned on the front panel

Memory Slot

Separate Memory slot on front panel

Interfaces

Digital and analog input/outputs, voltage input, serial interface, control panel interface

Control Panel

Standard, to be plugged before powering

Firmware

To be ordered separately

Communication

DeviceNet/CANopen

Dimensions

Height 241 mm, Depth 103 mm, Width 49.5 mm

Installation

Requires trained personnel, adherence to safety instructions.
