S image of CSH01.1C-ET-EN1-EN2-NNN-L2-S-NN-FW

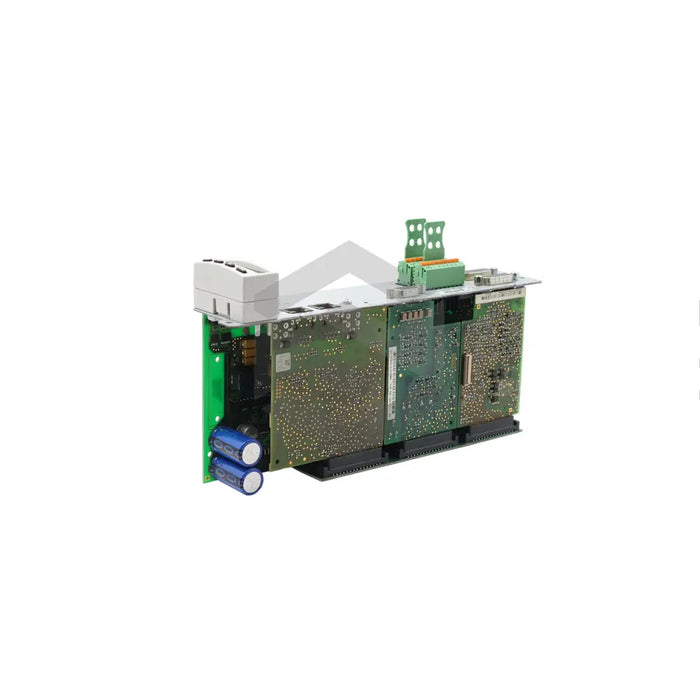

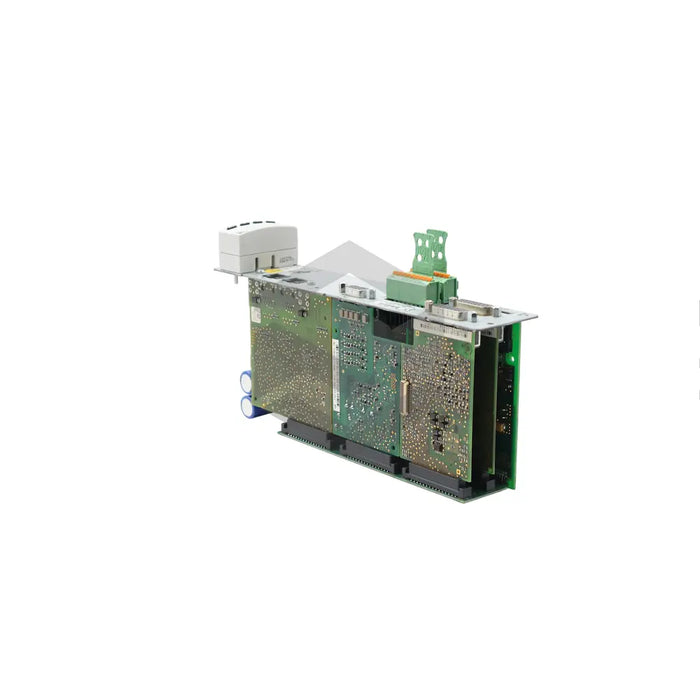

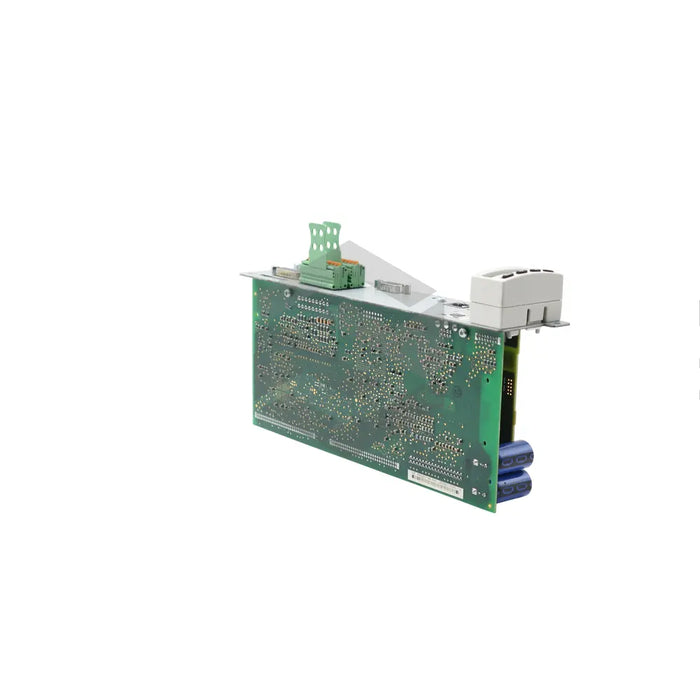

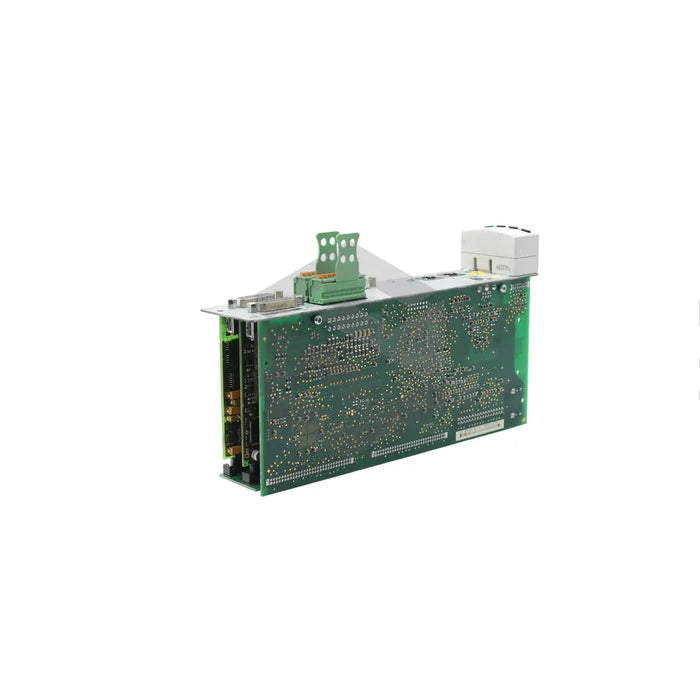

CSH01.1C-ET-EN1-EN2-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,408.15 - $8,625.33
$2,408.15
$2,408.15 - $8,625.33
$2,408.15

In Stock, Ships 1 - 3 Days

The CSH01.1C-ET-EN1-EN2-NNN-L2-S-NN-FW is a high-tech control section from the IndraDrive range by Bosch Rexroth Indramat, assembled for use in industrial settings. This component plays a crucial role in the wearable operation of HCS and HMS drive controllers. The device features a conventional control panel that allows for error checking, modification of analogue outputs, and adjustment of the Fieldbus data transmission. It offers a cycle time of 62.5ms for current control, a cycle duration of 125ms for velocity control, and operates with a normal inrush current of 4 Amperes, consuming 7.5kW energy. The device, which uses fiber optics for interfacing with SERCOS, also includes an active safety system. It supports three extra modules including HSF/RSF and TTL/1Vpp/EnDat 2.1 Encoders, and an empty slot. Adherence to the manufacturer's assembly, setup, and operational guidelines is crucial for its safe function.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

Rexroth IndraDrive

Product Type

Control Section

Applicable Drive Controllers

HCS and HMS

Cycle Time Current Control

62.5 ms

Cycle Duration Velocity Control

125 ms

Normal Inrush Current

4 Amperes

Power Consumption

7.5 kW

Pulse Width

100 ms

Interface

SERCOS fiber optics

Programmable

Yes

Safety System

Active

Communication

PROFInet IO master

Supports Supplemental Modules

Yes, three (3)

First Supplemental Module

HSF/RSF Encoder in slot X4, power usage of 6 W

Second Supplemental Module

TTL/1Vpp/EnDat 2.1 Encoder in slot X8, power usage of 6 W

Third Supplemental Module

Empty slot

Ambient Conditions

As specified in product documentation.
