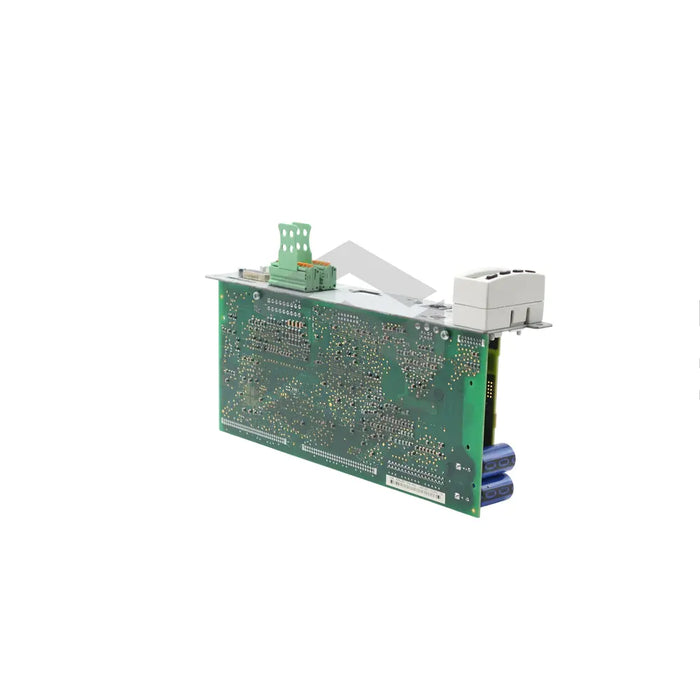

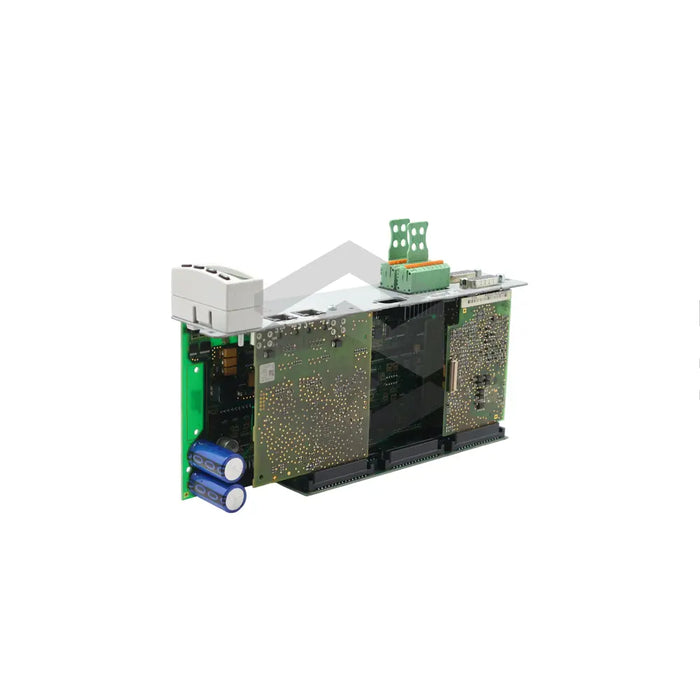

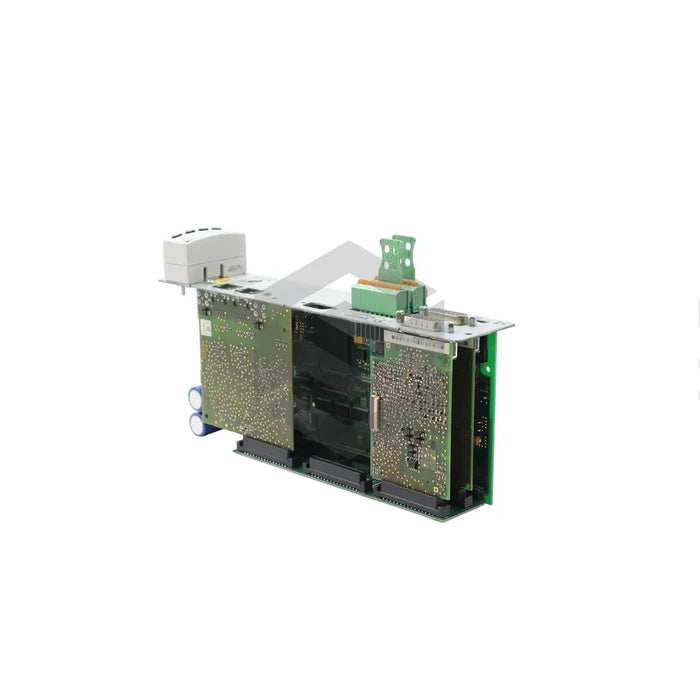

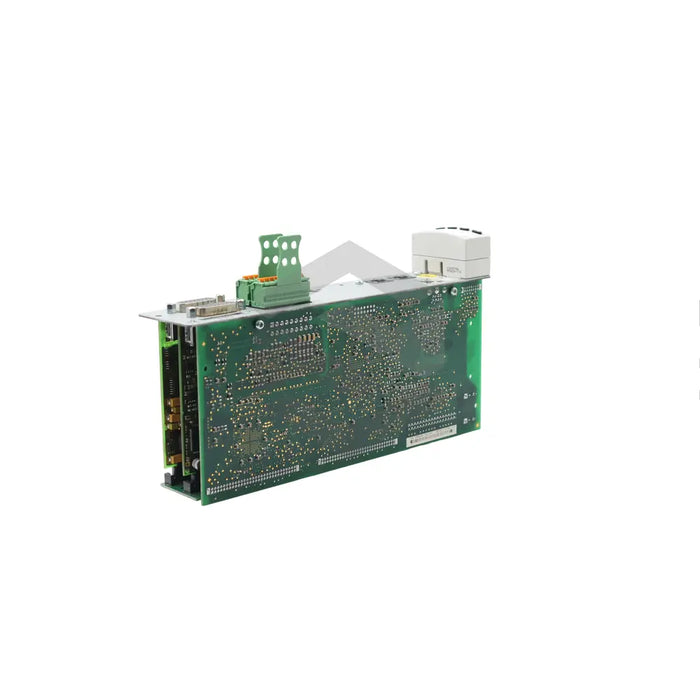

CSH01.1C-ET-EN1-EN2-NNN-NN-S-NN-FW
The Bosch Rexroth Indramat CSH01.1C-ET-EN1-EN2-NNN-NN-S-NN-FW is a sophisticated control section designed for use with the manufacturer’s drive controller, which should be commissioned prior to use. Fitted within a power section, it features digital inputs and outputs, requiring connection to an external supply voltage. This configurable single-axis device comes with a safety technology slot and does not support operation with VCP01.2 control panel from the same manufacturer. Only authorized and trained personnel should mount or dismount the device, and should not be performed more than 20 times. The unit, capable of four digital outputs, uses a Multi-Ethernet, eight-pin interface for master communication, offering 100Base-TX compatibility per IEEE 802.3u standards. It is equipped with a Normally Open relay contact and LED display for network status. To protect against polarity reversal and incorrect connection, a diode should be incorporated in the power supply at the X31.8 connector.
