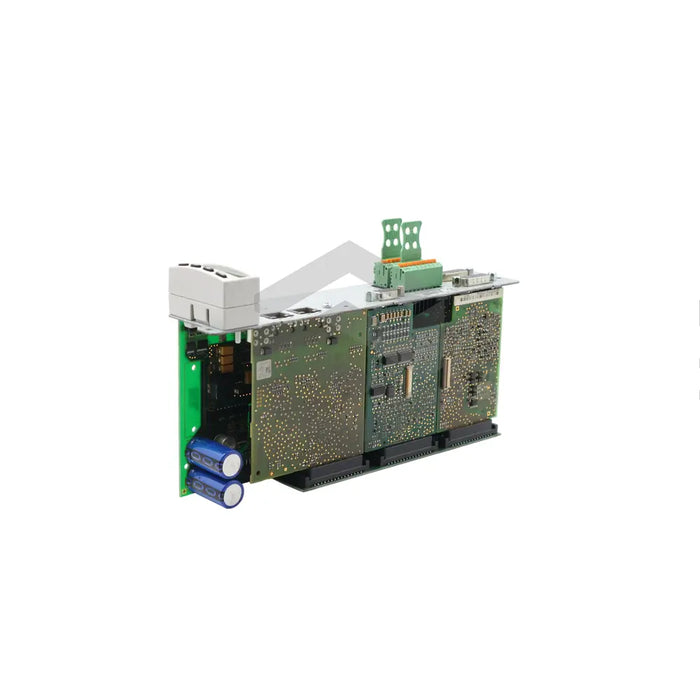

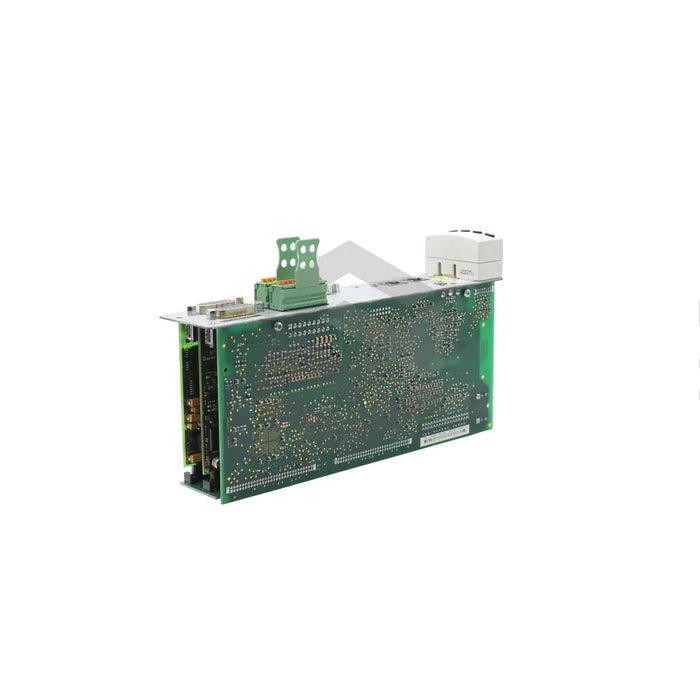

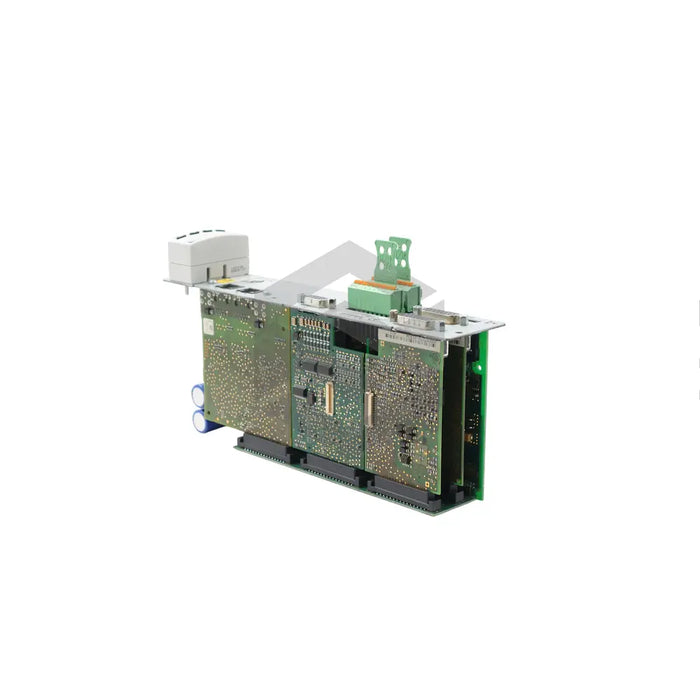

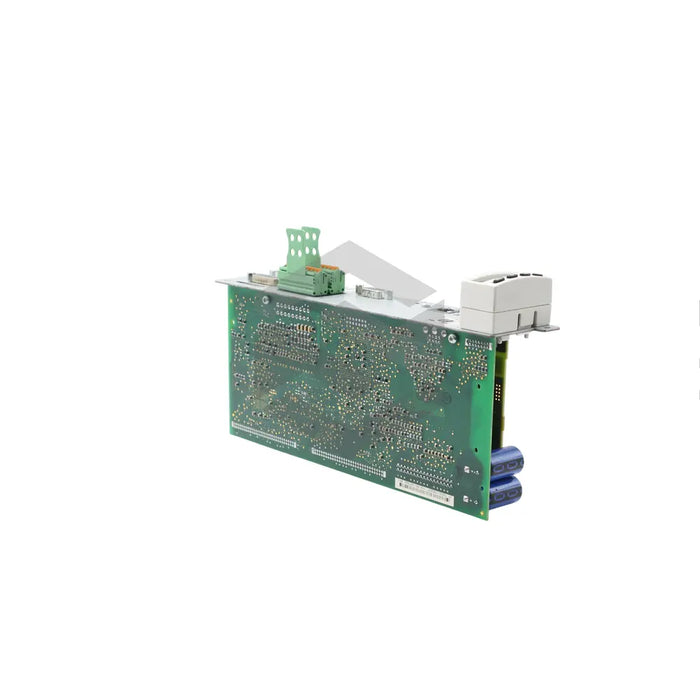

series image of CSH01.1C-ET-EN1-EN2-NNN-S2-S-NN-FW

CSH01.1C-ET-EN1-EN2-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's CSH01.1C-ET-EN1-EN2-NNN-S2-S-NN-FW is a sophisticated control section that must be vertically mounted. It accommodates a memory card in its upper X7 connector and has two nine-pin connectors, X31 and X32, for linking its digital outputs and inputs. The IA1 input should be connected to a low impedance signal source to minimize linearity error. Additionally, it has a HSF/RSF encoder on the X4 connector, with a supply voltage of 8VDC or 12VAC. It also features two analog voltage inputs with a +/-10V rating that can function as additional digital inputs, and uses separately purchased firmware for optimal functions. It comes with a standard control panel and an RS 232 serial interface. For safety, it must be grounded, transported in conductive packaging, and not used if damaged. It is typically used in machine tools and handling and mounting systems.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.1C-ET-EN1-EN2-NNN-S2-S-NN-FW
  • Mounting Orientation: Vertical
  • Memory Card Support: X7 Connector
  • Connectors: X31 and X32, 9 pins each
  • IA1 Input Connection: Least Impedance Signal Source
  • Design Code: 1
  • First Two Digital Inputs Configuration: 24V Voltage Rating and 3mA Current Rating
  • Encoder Type: HSF/RSF on X4 Connector
  • Encoder Supply Voltage: 8VDC or 12VAC Peak-to-Peak
  • Analog Voltage Inputs: Two, +/-10V Voltage Rating, 10 Ohms Resistance
  • Firmware: Required, Sold Separately
  • Packaging: Conductive, Military-grade
  • Recommend Use: Undamaged and Fully Functional Condition
  • Applications: Drive Controllers in Machine Tools, Handling and Mounting Systems
  • Interface: One RS 232 Serial
  • Control Panel: Standard Included
  • Transit Packing: Custom Military-grade
