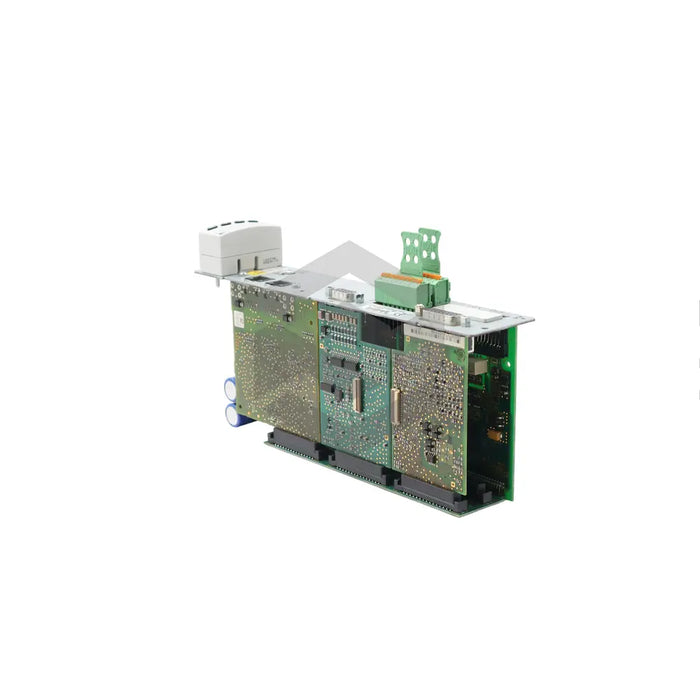

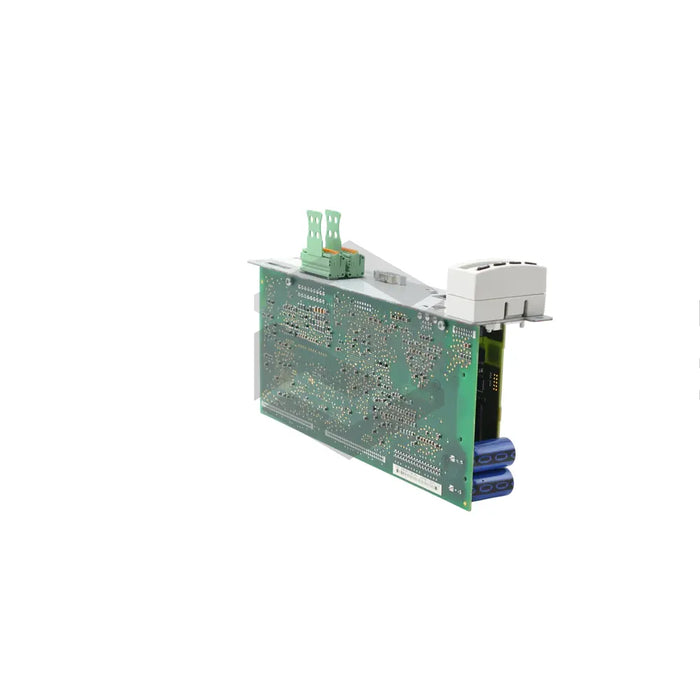

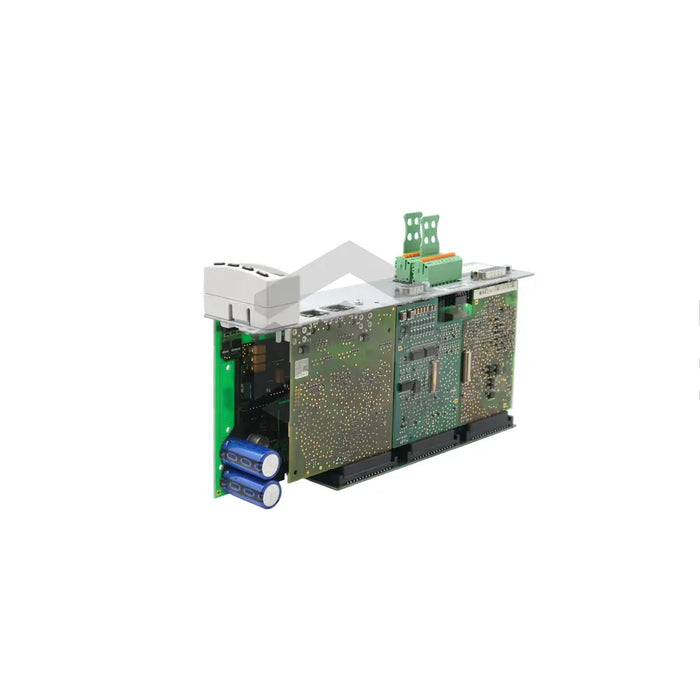

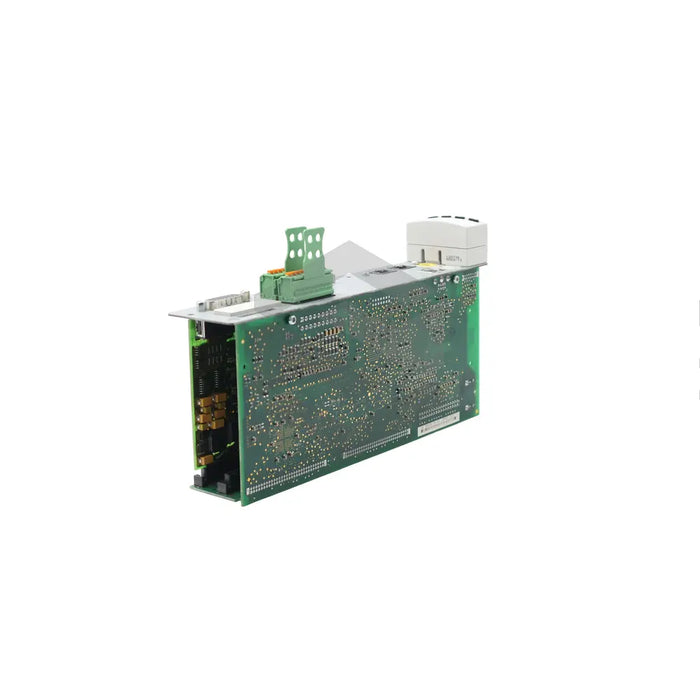

S image of CSH01.1C-ET-EN2-NNN-NNN-S1-S-NN-FW

CSH01.1C-ET-EN2-NNN-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
$2,408.15 - $8,625.33
$2,408.15
$2,408.15 - $8,625.33
$2,408.15

In Stock, Ships 1 - 3 Days

The CSH01.1C-ET-EN2-NNN-NNN-S1-S-NN-FW is a specialized control section crafted by Bosch Rexroth Indramat. Taking a modular design approach, it allows for the installation of three optional plug-in modules along with a safety feature. The unique aspect of this product is that the firmware, supporting different functions, needs to be separately ordered to suit customer's specifications. It is armed with an encoder option module with an EnDat 2.1 interface and a safety technology I/O feature. Designed for compatibility with a standard control panel, it lacks comfort control panel compatibility. It communicates using a MultiEthernet interface and has an inbuilt RS-232 serial port. Along with one analog input and two analog outputs, it also provides a normally-open relay contact. It can be used for single-axis position control applications and supports various cycle times and switching frequencies. It has a supply voltage rating of 24 Volts DC and consumes 7.5 Watts of power.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-ET-EN2-NNN-NNN-S1-S-NN-FW

Product Type

CSH Control Section

Architecture

Modular

Optional Modules

Three

Safety Option

Installed

Option Module

Encoder with EnDat 2.1

Safety Option

Safety Technology I/O

Compatible Panel

Standard Control Panel

Master Communication Interface

MultiEthernet

Integrated Port

RS-232 serial port

Integrated I/O

One analog input, Two analog outputs, One normally-open relay contact

Current Control Cycle Times

62.5 and 125 microseconds

Velocity Control Cycle Times

125 and 250 microseconds

Position Control Cycle Times

250 and 500 microseconds

Minimum SERCOS Cycle Time

250 microseconds

Switching Frequencies

2, 4, 8, 12 and 16 kilohertz

Application

Single-axis position control

Mounting Dimensions

241 x 49.5 x 103 millimeters

Supply Voltage Rating

24 Volts DC

Power Consumption

7.5 Watts
