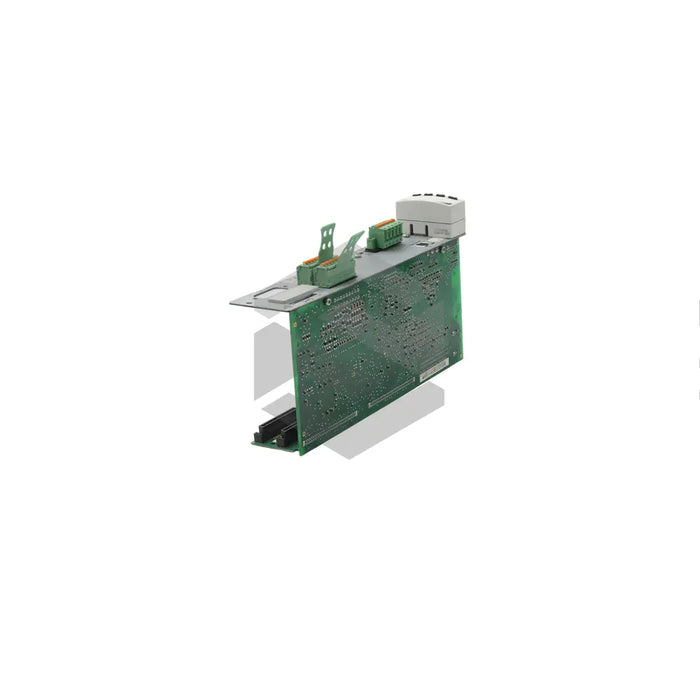

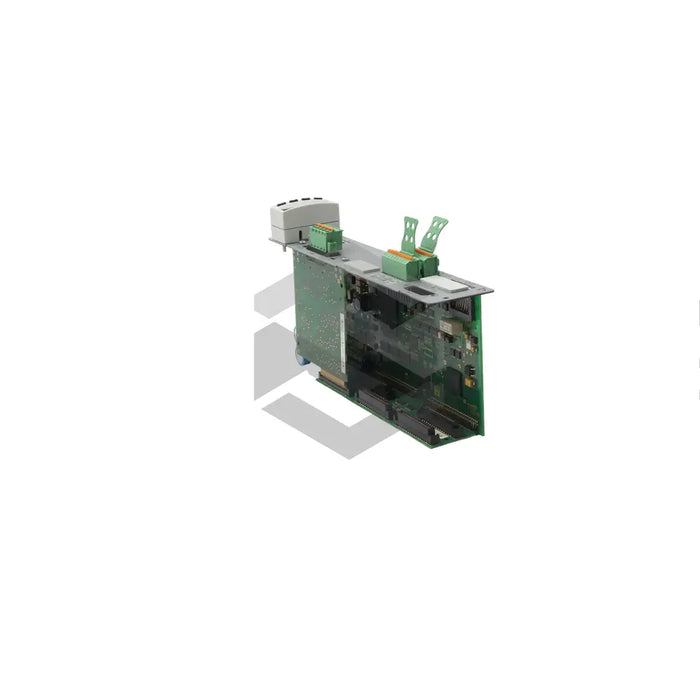

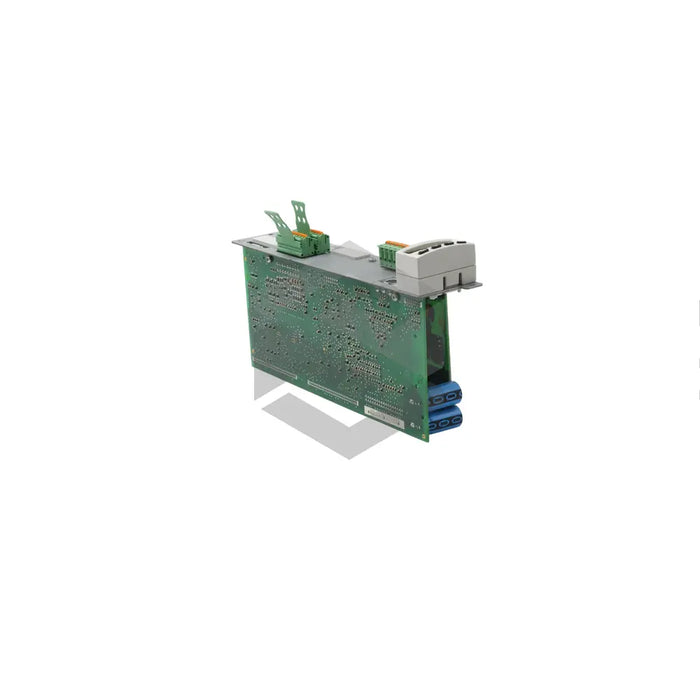

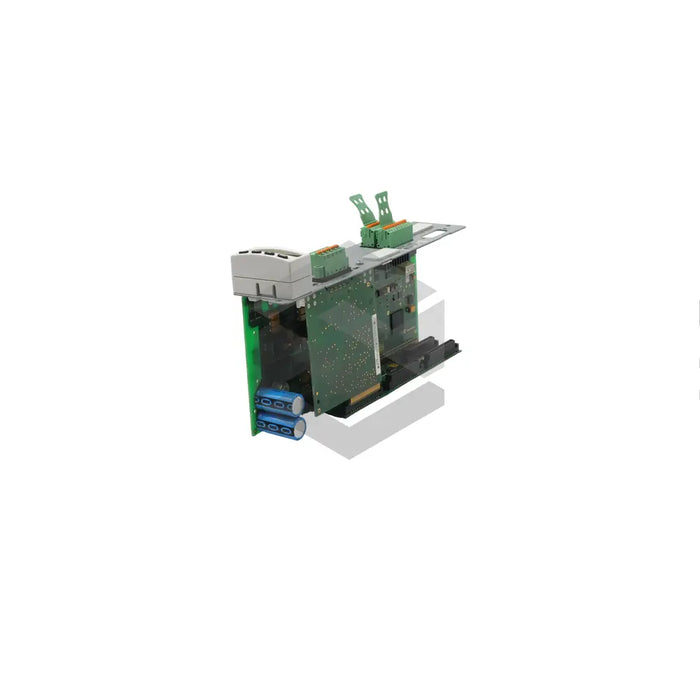

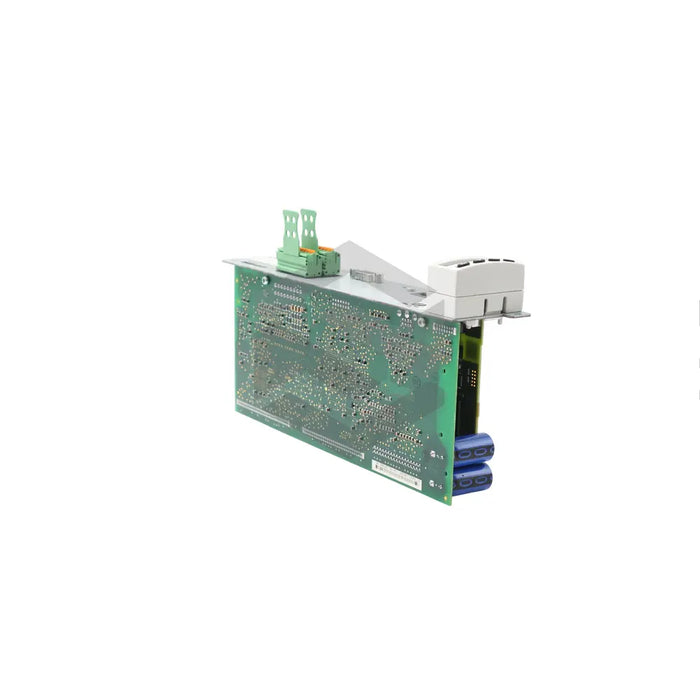

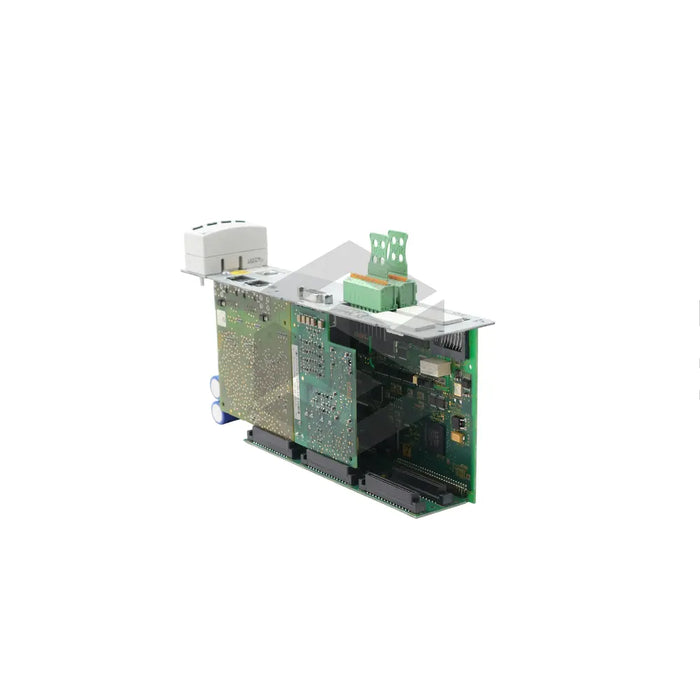

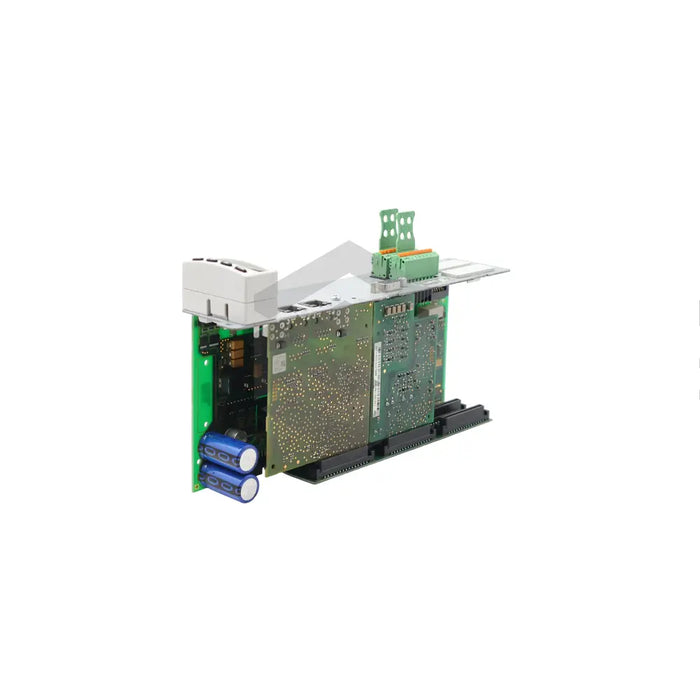

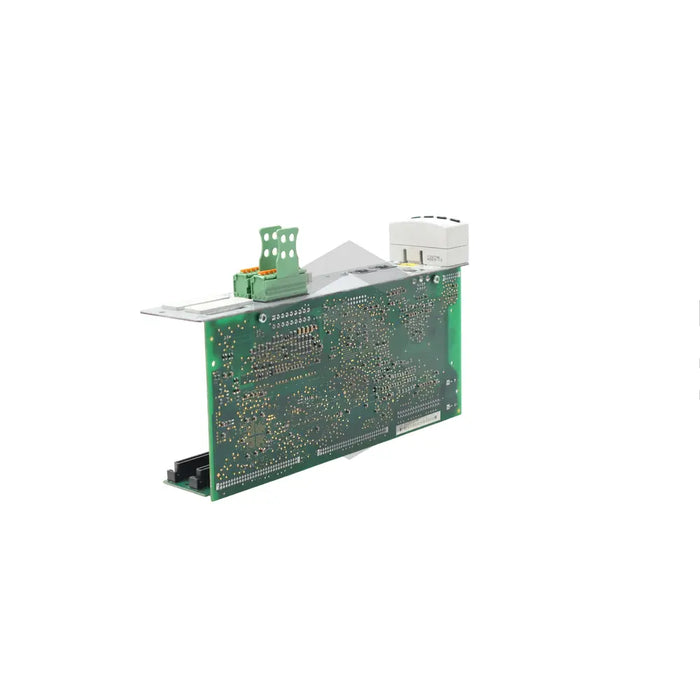

C image of CSH01.1C-ET-NNN-NNN-NNN-L2-S-NN-FW | Main (Front Left)

CSH01.1C-ET-NNN-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,408.15 - $8,625.33
$2,408.15
$2,408.15 - $8,625.33
$2,408.15

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's CSH01.1C-ET-NNN-NNN-NNN-L2-S-NN-FW is a robust and flexible control section from the CSH series. This product boasts a modular design that allows for unique customization with a variety of optional modules, including analog I/O extensions, encoder emulation, and digital I/O extensions among others, which can be installed in three available slots. The appliance also incorporates a safety feature known as 'Safe torque off' to prevent unexpected machine start-ups. Communication is facilitated through a Multi-Ethernet master interface. Unique to the IndraDrive controllers, this component carries all processing-related tasks while also drawing 24 Volts DC and 7.5 Watts power from another control section. The hardware's firmware is provided separately by Bosch to support specific required features. Ideally suited for single-axis positioning applications, it is commonly found in machine tools, printing, food machines, and mounting systems. Installation and commissioning should only be undertaken by qualified personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH

Product Model

CSH01.1C-ET-NNN-NNN-NNN-L2-S-NN-FW

Architecture

Modular

Optional Module Slots

3

Safety Module Slot

1

Supported Modules

Analog I/O extensions, encoder emulation, IndraDyn encoder, HSF / RSF encoder, encoder with EnDat 2.1 support and digital I/O extensions

Safety Feature

Safe Torque Off

Communication Interface

Multi-Ethernet

Role in IndraDrive Controllers

Control Section

Power Draw

24 Volts DC and 7.5 Watts

Commissioning Panel

Standard control panel

Firmware

Provided separately

Application

Single-axis positioning, machine tools, printing machines, food machines, mounting systems.
