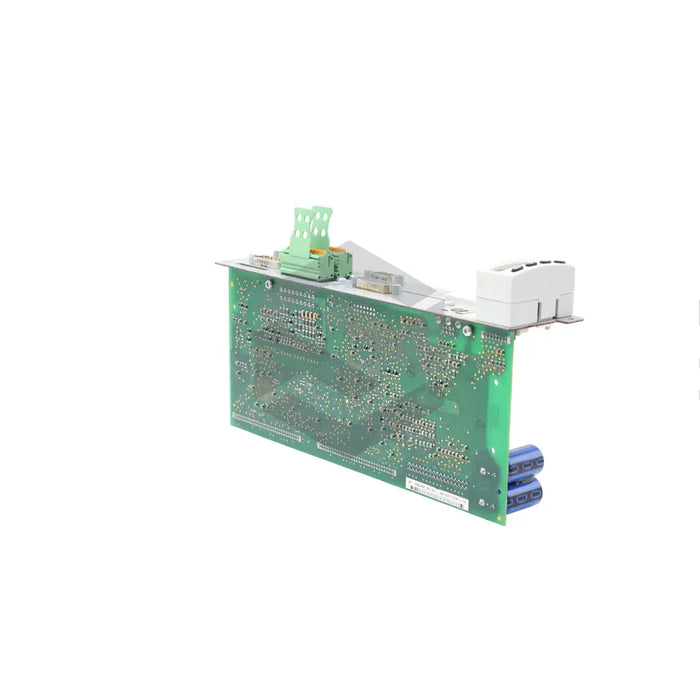

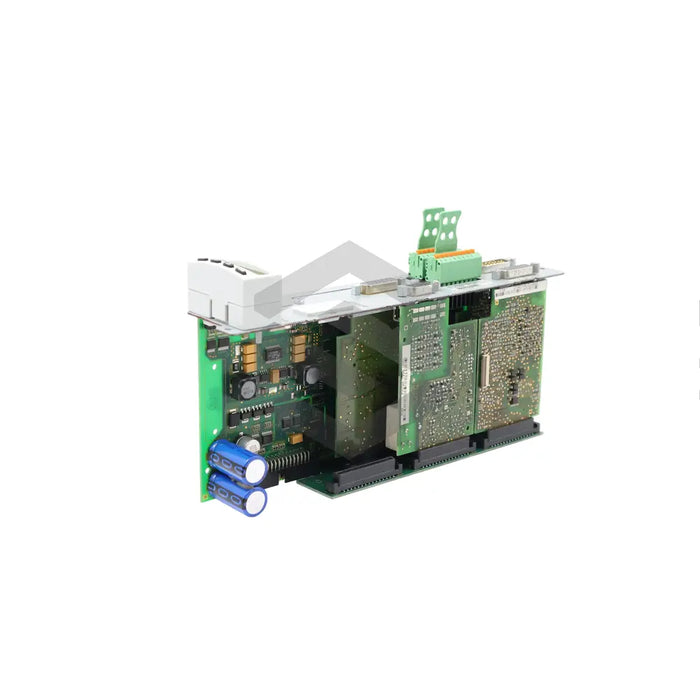

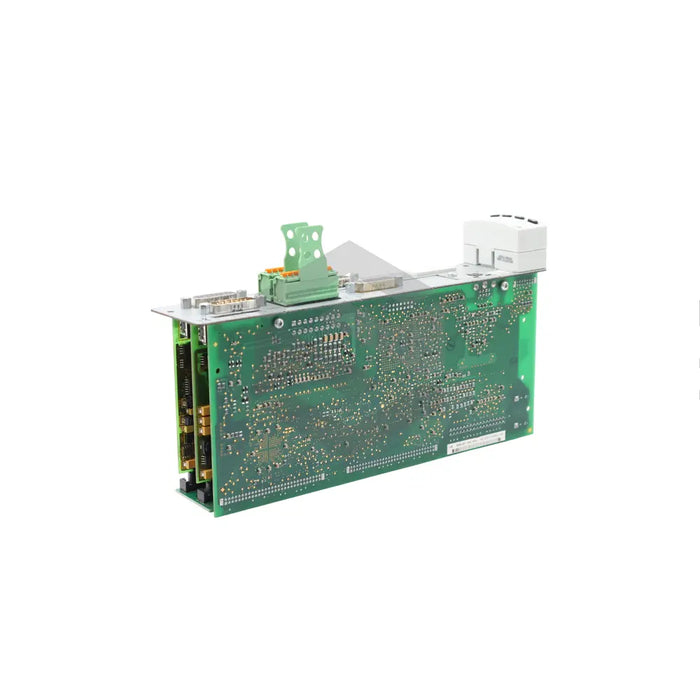

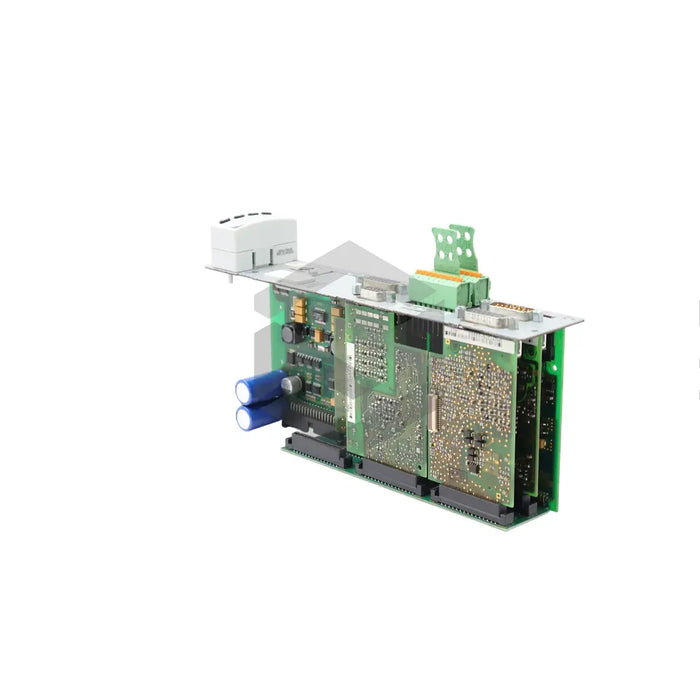

S image of CSH01.1C-NN-EN1-MEM-MA1-L1-S-NN-FW

CSH01.1C-NN-EN1-MEM-MA1-L1-S-NN-FW

by Bosch Rexroth Indramat
$4,161.33 - $4,161.33
$4,161.33
$4,161.33 - $4,161.33
$4,161.33

In Stock, Ships 1 - 3 Days

Manufactured by Bosch Rexroth Indramat, the CSH01.1C-NN-EN1-MEM-MA1-L1-S-NN-FW is a dual-axis advanced control unit supporting switching frequencies ranging from 2kHz to 16kHz. This configurable unit requires an external voltage supply for its digital inputs/outputs at connectors X31.8 and X31.9 and includes one analog input and two outputs. Despite its lack of master communication support, it features a HSF/RSF encoder module connected via the X4.1 connector, which operates on a supply voltage of either 18VAC peak-to-peak or 8VDC. This product is not compatible with the VCP01.2 control panel. Also included are four digital inputs (two Type 2 and two Type 3) that can be configured as probe inputs, and a built-in relay with a 30VDC voltage capacity. Operators can use the memory card in the X7 slot to store and read data such as firmware, drive parameters, and operating data. It is essential to commission the drive controller before startup to ensure proper functionality. The product can be shipped internationally. Please note that the control unit should not be mounted or unmounted more than 20 times.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.1C-NN-EN1-MEM-MA1-L1-S-NN-FW

Supported Switching Frequencies

2kHz, 4kHz, 8kHz, 12kHz, 16kHz

Optional Encoder Module

HSF / RSF

Supply Voltage

18VAC peak-to-peak or 8VDC

Digital Inputs and Outputs Requirement

External supply voltage connection at the X31.8 and X31.9 connectors

Number of Analog Inputs

One

Number of Analog Outputs

Two

Configurability

Yes

Number of Axes

Two

Master Communication Support

No

Cutoff Frequencies

100kHz (HSF operation), 18kHz (resolver operation)

Type of Digital Inputs

Two Type 2, Two Type 3

Memory Card Slot

Located in the X7 slot

Data Storage

Firmware, Drive parameters, Operating data

Relay Contact Feature

Voltage load capacity of 30VDC, Pickup delay of 10ms, Dropout delay of 10ms

Interface Encoder Emulator

MEM

Usage Limit

Mounted and unmounted not more than 20 times

Commission Requirement

Before startup process.
