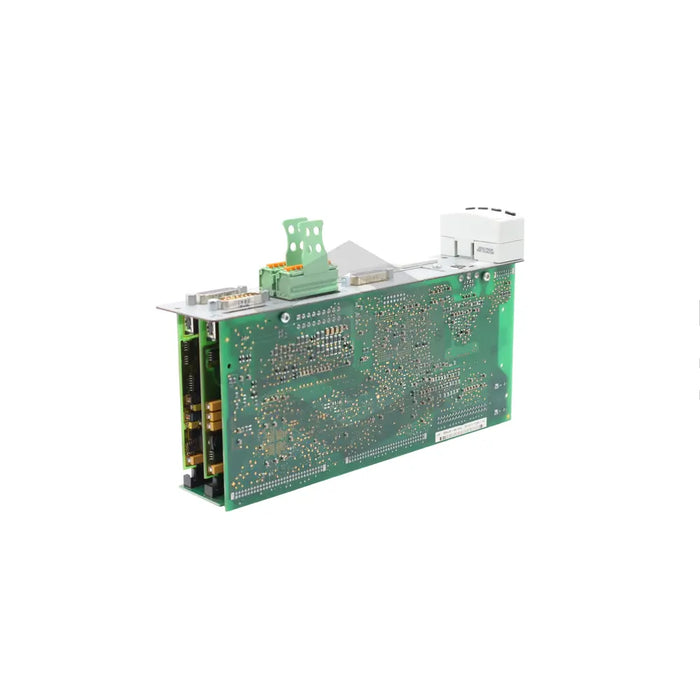

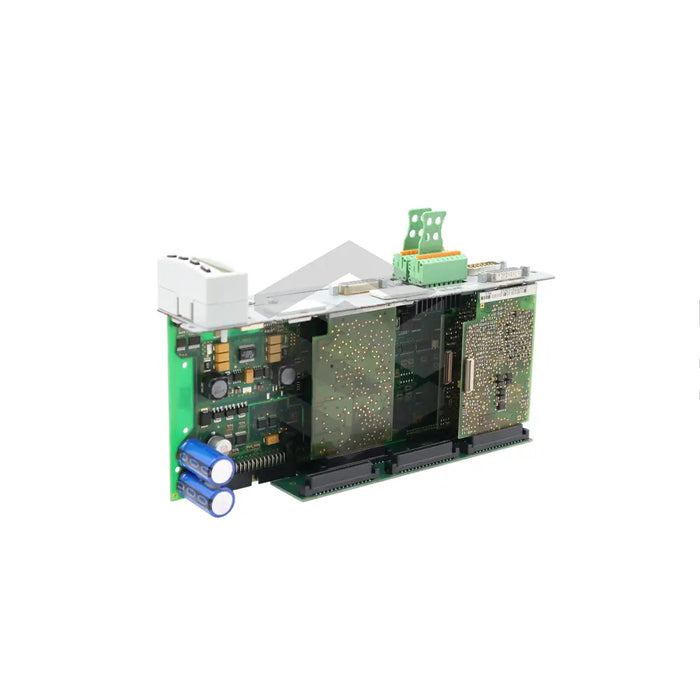

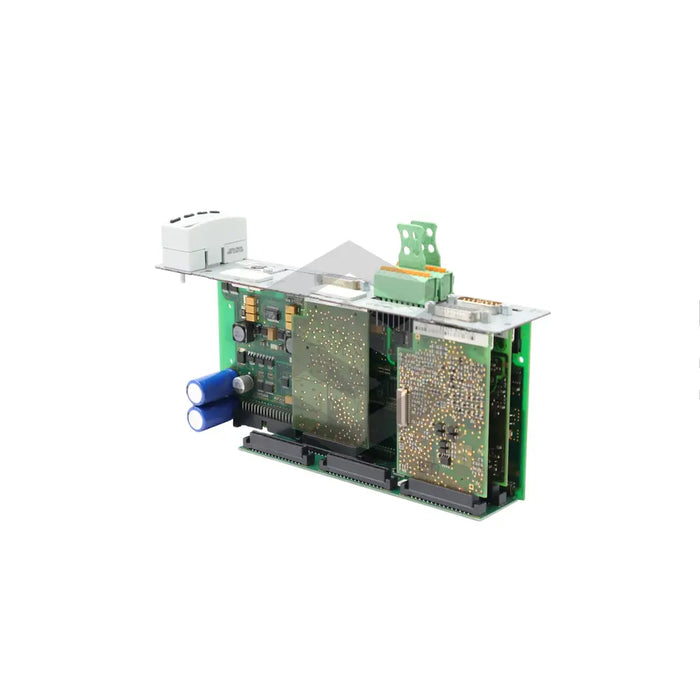

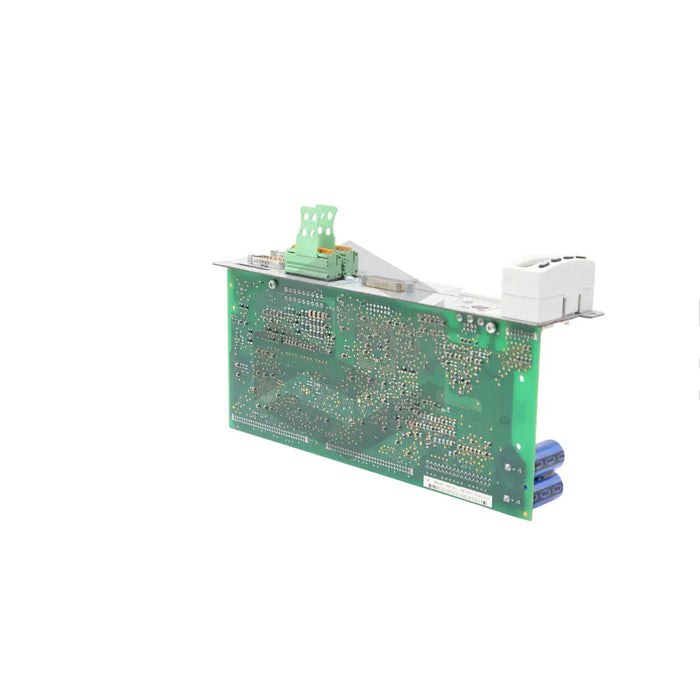

S image of CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW

CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,161.33 - $4,161.33
$4,161.33
$4,161.33 - $4,161.33
$4,161.33

In Stock, Ships 1 - 3 Days

The CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW, manufactured by Bosch Rexroth Indramat, is a high-end control section with the ability to expand analog inputs and outputs through its MA1 module. This extension module equips the control section with separate channels for two differential analog inputs and two analog outputs with a +/-10V voltage rating and 12 bits resolution. The device comprises a H1 interface for its control panel connection, preset prior to powering the drive controller. It also features an advanced single-line display and does not support hot plug. The control section should only contact discharged conductive parts. Built according to IEC 61131 Type 1 specifications, it operates as a part of a drive controller used in machine tools. The device's probe inputs must be regulated with bounce-free switching elements to avoid incorrect interpretation, and the analog inputs employ 8-fold oversampling. Firmware for this product is sold separately. The section also supports a serial interface connection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-NN-EN1-MEM-MA1-NN-S-NN-FW

Safety Technology

Not implemented

Extended Analog Inputs/Outputs

Yes, through MA1 optional module

Connector Type

D-Sub 15-pole female

Voltage Rating

+/-10V

Resolution

12 bits

Interface

H1

Control Panel Compatibility

Single-line display, not hot plug compatible

IEC 61131 Type 1 Specifications

Yes, for digital inputs/outputs

Sampling Frequency

Depends on firmware

Analog Inputs Feature

8-fold oversampling

Analog Output Protection

Overload and short circuit

Serial Interface Connection

Supported

Used In

Machine tools drive controller

Probe Inputs Function

Rapid inputs, require bounce-free switching elements
