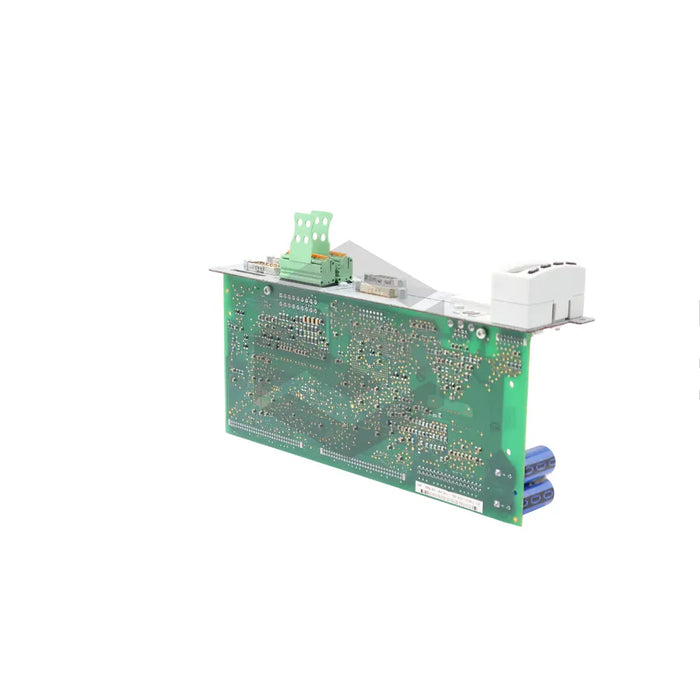

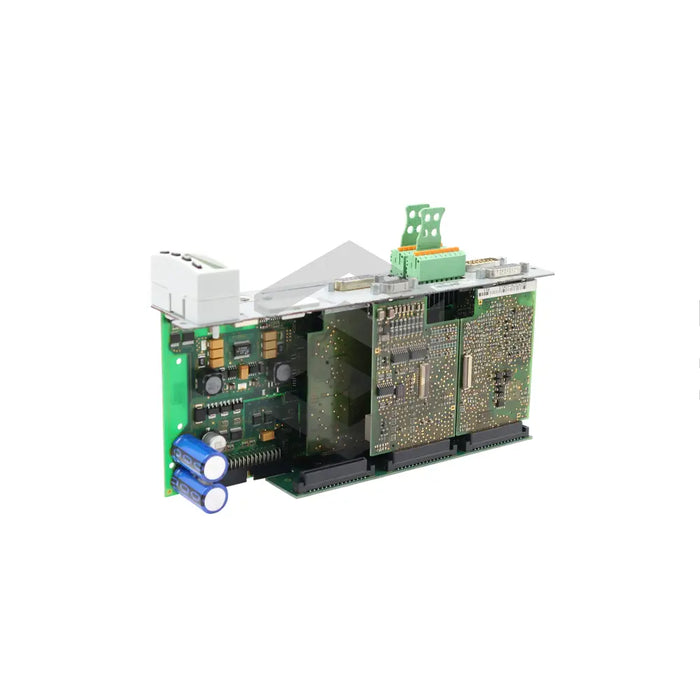

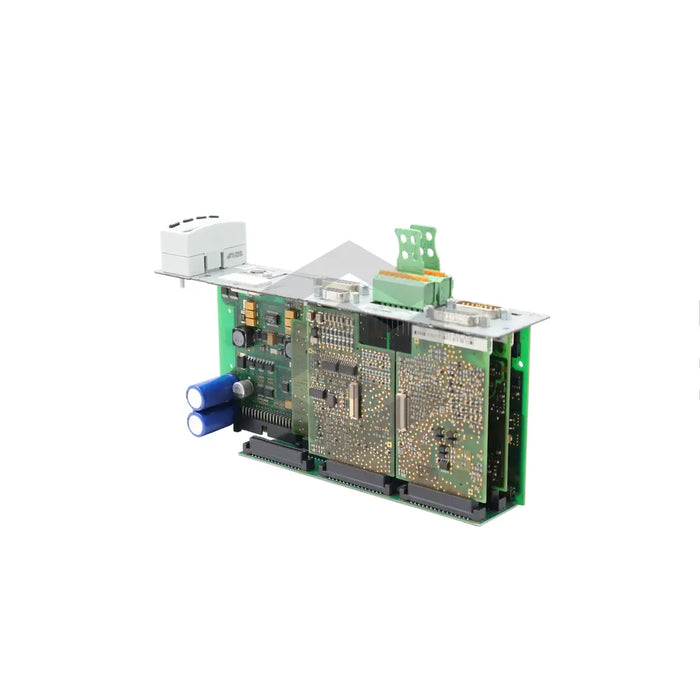

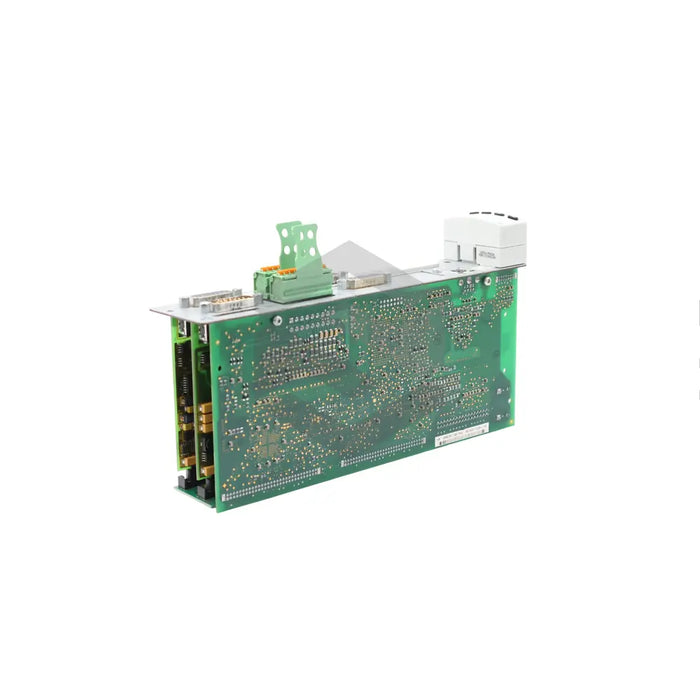

S image of CSH01.1C-NN-EN1-MEM-MA1-S1-S-NN-FW

CSH01.1C-NN-EN1-MEM-MA1-S1-S-NN-FW

by Bosch Rexroth Indramat
$4,161.33 - $4,161.33
$4,161.33
$4,161.33 - $4,161.33
$4,161.33

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's advanced control section, model CSH01.1C-NN-EN1-MEM-MA1-S1-S-NN-FW, provides connectivity to an RS 232 serial interface through an eight-pole circular X2 connector, using pins 2 and 5 for data transmission and reception. The device has two power connectors and requires an independent power supply for its isolated inputs/outputs. It consumes 7.5W at 24VDC. Connection points consist of screw terminal blocks and spring terminals, but avoid using solid wires for the latter. The product supports several safety functions such as drive interlock, standstill, reduced speed, and direction of motion, in conjunction with an encoder. Designed to be stored in conductive packaging, it can be prone to damage from repeated mounting and dismounting. With an inrush current of 4A and two current control cycle times, the device can be customized as per user requirements. Its associated control panel uses 1W power. Delivery is in military-grade packaging to prevent damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-NN-EN1-MEM-MA1-S1-S-NN-FW

Connectivity Support

RS 232 serial interface

Interface Pin Usage

The second and fifth pins used for data transmission and reception

Power Section Connectors

Two terminal connectors

Power Consumption

7.5W at 24VDC

Connection Points

Screw terminal blocks and spring terminals

Safety Technology

I/O enabled

Encoder Required

Yes, for using safety option

Storage Recommendation

Conductive packaging when not in use

Mount Conditions

Should not be mounted or dismounted frequently

Location

Fitted inside power section of the controller

Inrush Current

Typical 4A

Current Control Cycle Times

62.5μs and 125μs

Configurable

Yes

Design Code

1

Series Code

1

Control Panel Power Consumption

1W

Delivery Package

Customized military-grade packaging.
