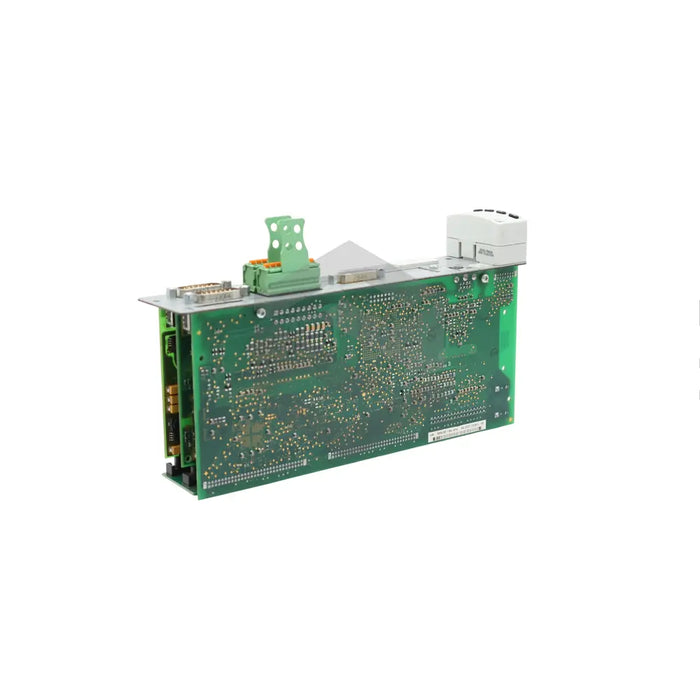

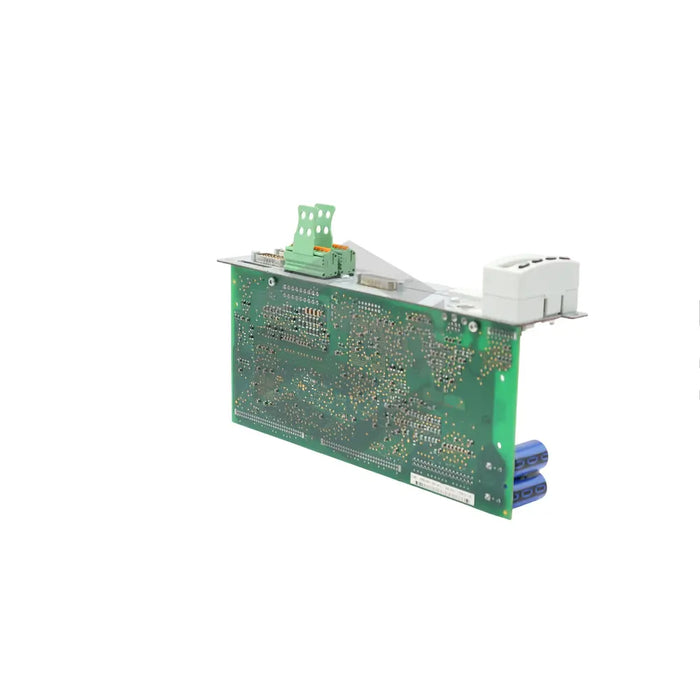

series image of CSH01.1C-NN-EN2-MEM-MA1-NN-S-NN-FW

CSH01.1C-NN-EN2-MEM-MA1-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-NN-EN2-MEM-MA1-NN-S-NN-FW is a sophisticated single-axis control section built by Bosch Rexroth Indramat. This model falls in the high-level control segment category with advanced features and a configurable type-1 design. Without a default master communication interface or safety setting, the unit operates using a standard control panel, not a VCP01.2 comfort one. It communicates via an RS 232 serial interface and features 7 to 11 digital inputs, 0 to 4 digital outputs, 1 analog input and 2 analog outputs. Boasting permissible switching frequencies of 2, 4, 8, 12, and 16 kHz, it offers optional slots including an Encoder EnDat 2.1/5 Vpp/TTL, Encoder Emulation module, and an Analog I/O extension. With 7.5 Watts power consumption and 4 Amperes inrush current rating, it draws power from the 24 Volts terminal of related power sections. The model’s connectors feature screw terminal blocks and spring terminals.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Category: CSH01.1
  • Product Type: Configurable Single-axis Control Section
  • Advanced Control Section: Yes
  • Design Type: 1
  • Configurable: Yes
  • Master Communication Interface: No
  • Safety Technology Option: No
  • Compatible with VCP01.2 Comfort Control Panel: No
  • Control Panel Type: Standard
  • Interface Type: RS 232 Serial
  • Digital Inputs: 7-11
  • Digital Outputs: 0-4
  • Analog Inputs: 1
  • Analog Outputs: 2
  • Permissible Switching Frequencies (kHz): 2, 4, 8, 12, 16
  • Optional Slots: Encoder EnDat 2.1/ 5 Vpp/ TTL, Encoder Emulation Module, Analog I/O Extension
  • Power Consumption without Optional Plugins (Watts): 7.5
  • Inrush Current Rating (Amperes): 4
  • Power Supply Source: 24 Volts Terminal Connectors from Power Sections
  • Peak Pulse Width (ms): 100
  • Analog I/O Extension Power Consumption (Watts): 2
  • Standard Control Panel Power Consumption (Watts): 1
  • EnDat2.1 / 1 Vpp / 5 V TTL Power Consumption (Watts): 6
  • Encoder Emulator Power Consumption (Watts): 2
  • Connection Points: Screw Terminal Blocks and Spring Terminals.
