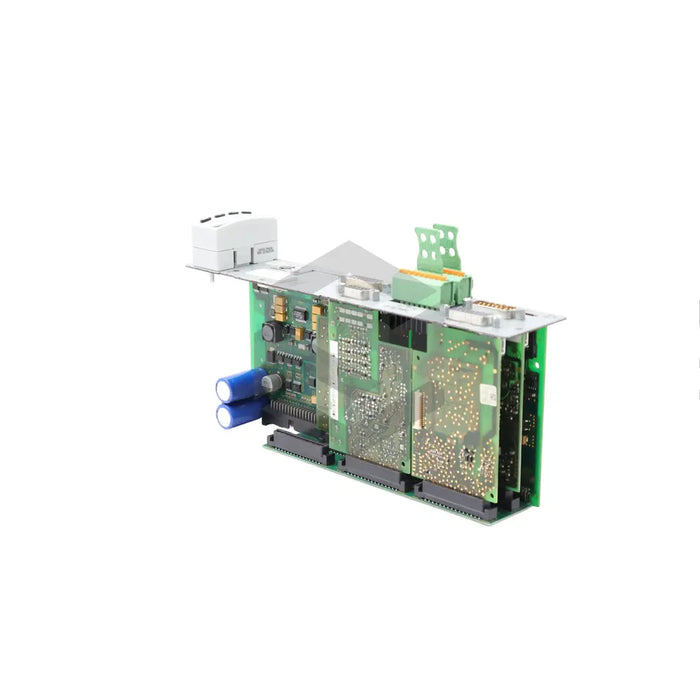

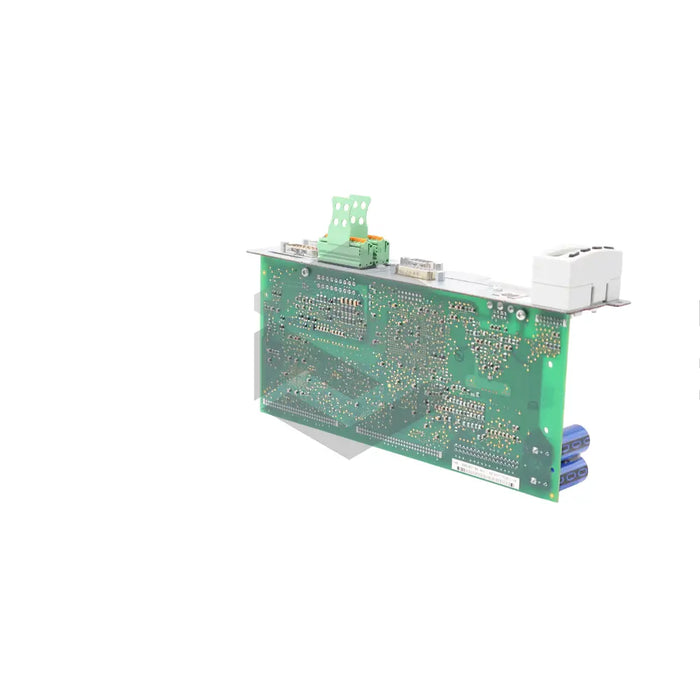

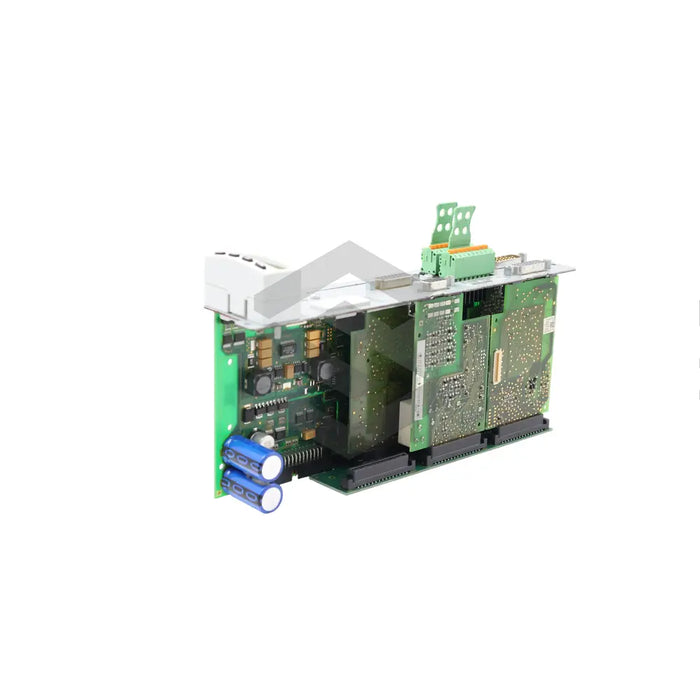

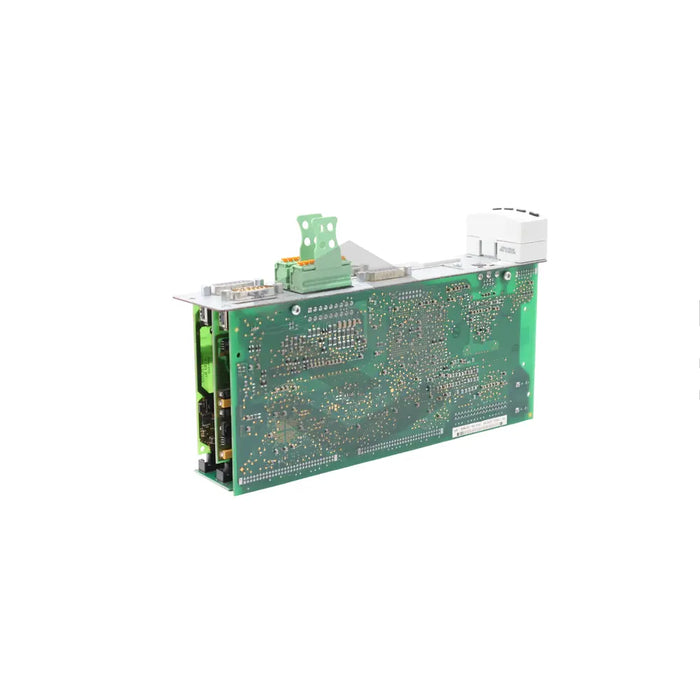

S image of CSH01.1C-NN-ENS-EN2-MA1-L2-S-NN-FW

CSH01.1C-NN-ENS-EN2-MA1-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,161.33 - $4,161.33
$4,161.33
$4,161.33 - $4,161.33
$4,161.33

In Stock, Ships 1 - 3 Days

The CSH01.1C-NN-ENS-EN2-MA1-L2-S-NN-FW, manufactured by Bosch Rexroth Indramat, is an ADVANCED control section and part of the Rexroth IndraDrive drive system and is intended for various applications such as handling and mounting systems, machine tools, and food packaging and processing machinery. This high-performance control section boasts both digital and analog inputs and outputs and features standard evaluation interfaces for encoder systems of the IndraDyn S family as well as sin-cos encoders (1 Vpp) with Hiperface and EnDat 2.1 interfaces. The control section is equipped with an Analog I/O Extension capable of supporting analog channels with higher resolutions. Additionally, it includes an integrated Safe Torque Off (STO) safety option and a standard control panel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH01 ADVANCED control section

Model

CSH01.1C-NN-ENS-EN2-MA1-L2-S-NN-FW

Integrated Inputs/Outputs

Digital and Analog

Encoder Interfaces

Standard evaluation interface for encoder systems with 12 V supply voltage

Compatible Encoders

Sin-cos encoders (1 Vpp) with Hiperface and EnDat 2.1 interfaces, Encoders of the MSK motors of the IndraDyn S family, Sin-cos encoder (1 Vpp) with reference track

Additional Encoder Interface

For sin-cos encoder (1 Vpp) with EnDat 2.1 interface and sense lines, 5V-TTL square-wave encoder with reference track

Analog I/O Extension

Equipped with analog channels with increased resolution, Two differential analog input channels, and two analog output channels of 12-bit resolution

Safety Feature

Integrated Safe Torque Off (STO)

Control Panel

Standard design.
