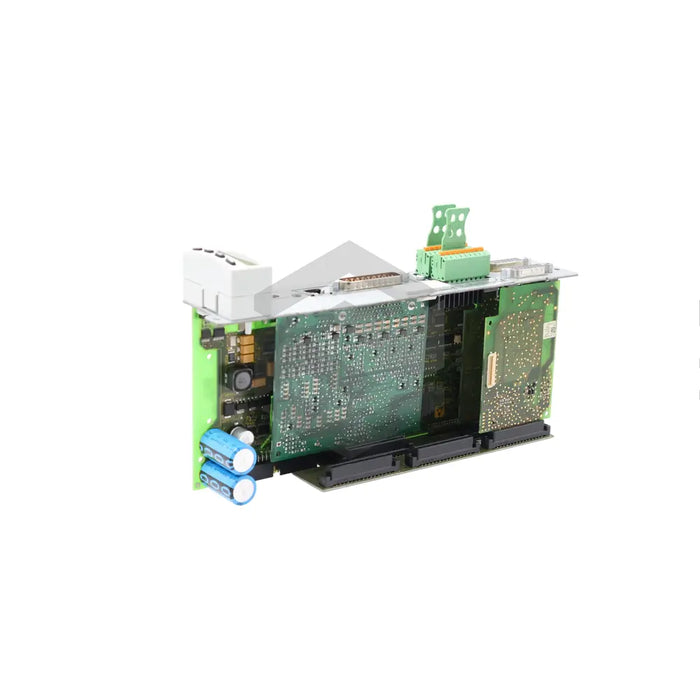

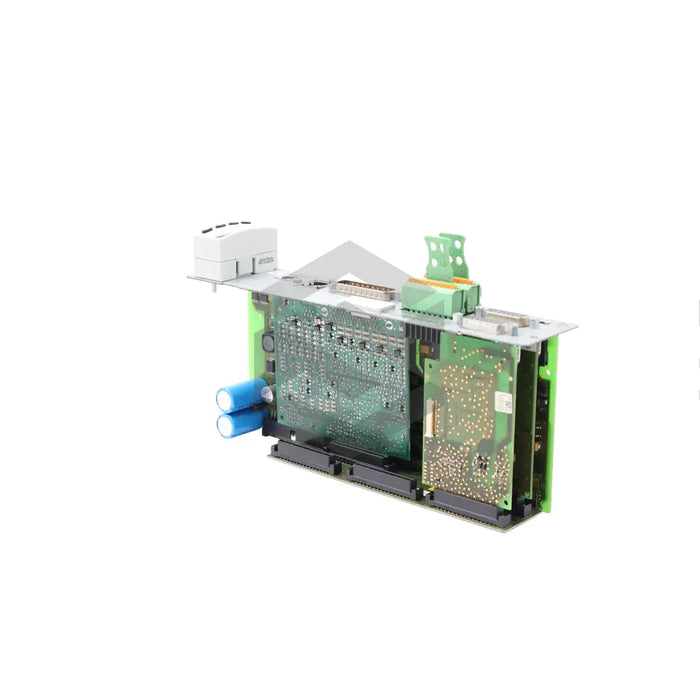

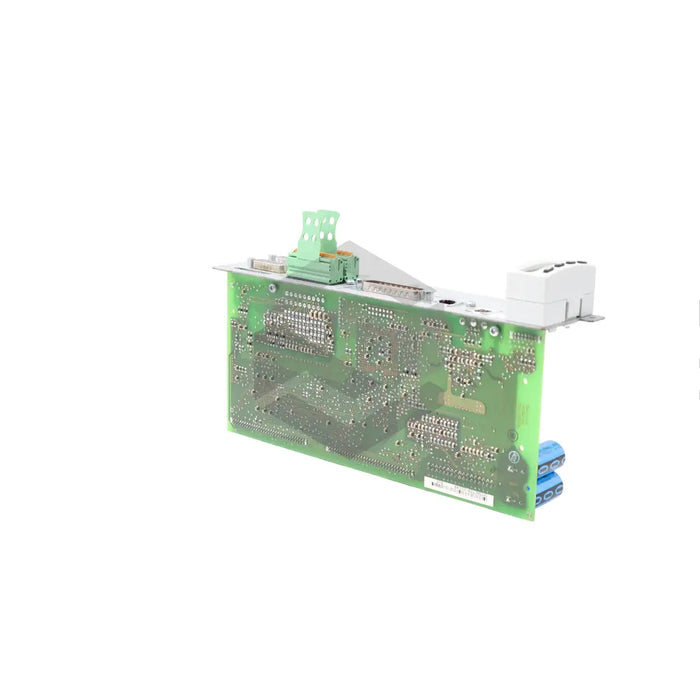

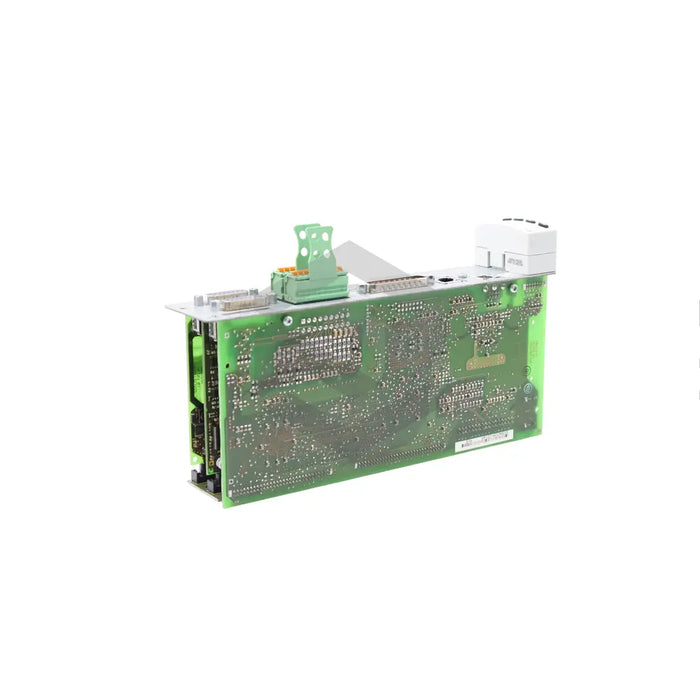

series image of CSH01.1C-NN-ENS-MEM-MD2-NN-S-NN-FW

CSH01.1C-NN-ENS-MEM-MD2-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-NN-ENS-MEM-MD2-NN-S-NN-FW, a state-of-the-art digital control section produced by Bosch Rexroth Indramat, is a key component of the IndraDrive controllers. This control section, highly customizable due to its modular structure, makes the controller adaptable to diverse applications. These systems typically find use in handling and mounting systems as well as paper processing and printing machines. The control section, generally supplied as part of an assembled drive controller, must be installed onto the power section by trained individuals if provided separately. Three pre-installed plug-in modules are present on the unit. Additionally, it features an empty slot for optional safety modules. Configurable from a standard control panel, it consumes 7.5 Watts power at 24 Volts DC input. The controller needs to be connected to the control panel before power is turned on, as the panel doesn't support hot swap.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: CSH01.1C-NN-ENS-MEM-MD2-NN-S-NN-FW
  • Product Type: Digital Control Section
  • Category: Advanced and Configurable Control Sections
  • Component Of: IndraDrive controllers
  • Mounting Method: Manual on the power section
  • Installation Requirements: Performed by trained professionals
  • Master Communication Interface: Not supported
  • Application: Drive controller for handling systems, mounting systems, paper processing machines and printing machines
  • Pre-Installed Modules: Encoder emulation module, Digital I/O extension with SSI encoder interface module, IndraDyn encoder module
  • Safety Modules Slot: Available ( Optional modules include safe motion, safety technology I/O, safe torque off and starting lockout)
  • Configuration: From a standard control panel
  • Hot Swap: Not supported
  • Power Consumption: 7.5 Watts at 24 Volts DC input
  • Inrush Current: 4 Amps
  • Pulse Width: Maximum 100 milliseconds.
