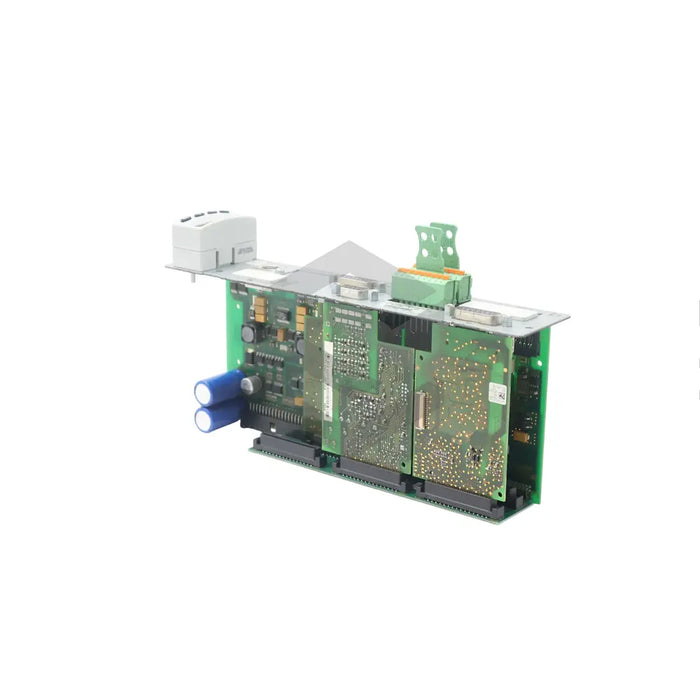

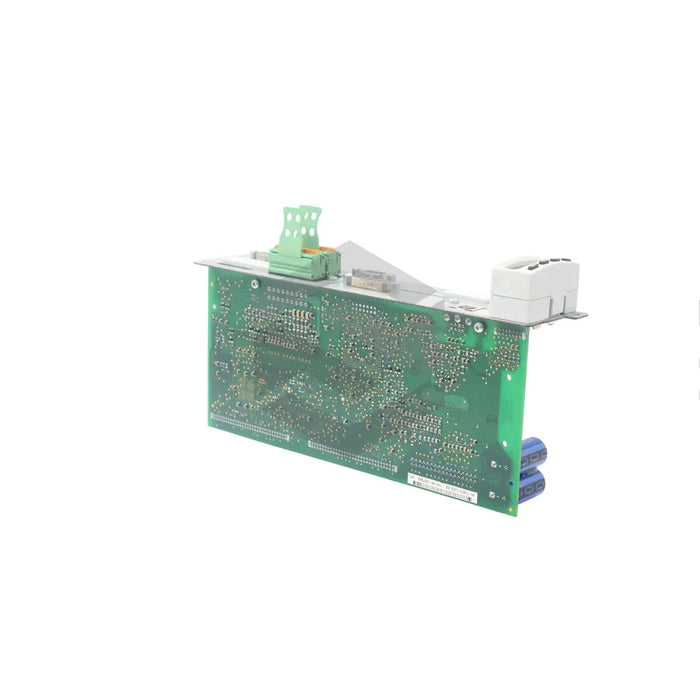

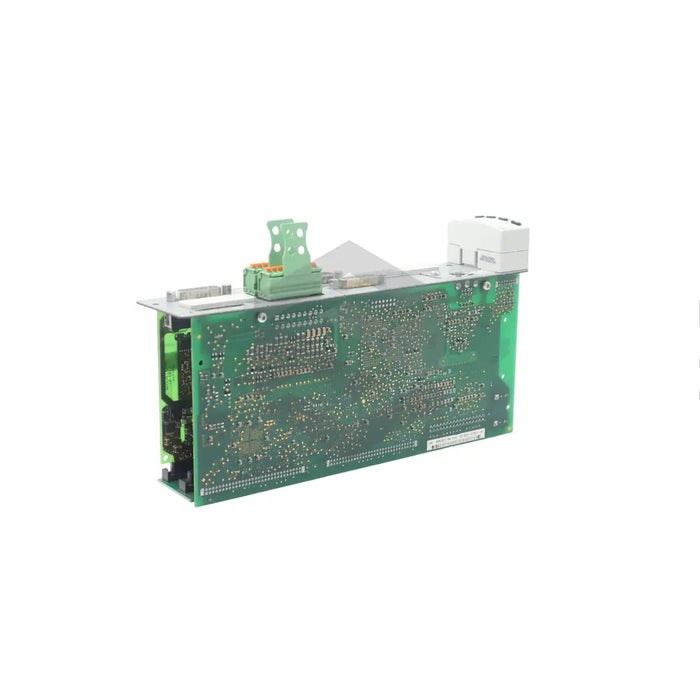

S image of CSH01.1C-NN-ENS-NNN-MA1-L1-S-NN-FW

CSH01.1C-NN-ENS-NNN-MA1-L1-S-NN-FW

by Bosch Rexroth Indramat
$4,161.33 - $4,161.33
$4,161.33
$4,161.33 - $4,161.33
$4,161.33

In Stock, Ships 1 - 3 Days

The CSH01.1C-NN-ENS-NNN-MA1-L1-S-NN-FW, by Bosch Rexroth Indramat, is an advanced IndraDrive controller with an integrated RS-232 interface, three optional module slots, and multiple analog and digital I/Os. The unit features a safety module that supports starting lockout. Equipped with an IndraDyn encoder module and an analog I/O extension module, it still has room to accommodate an optional module. With a minimal SERCOS cycle time of 250 microseconds, it offers various control cycle time options, and a wide range of operational switching frequencies from 2 to 16 kilohertz. The controller can be customized using a standard control panel or a PC with programming software connected to its serial interface. Operating at a power supply of 24V DC and drawing 7.5 watts of power, the control section includes a 2-watt analog extension module and a 6-watt encoder module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Section for IndraDrive Controllers

Number of Slots

4

Occupied Slots

2

Pre-installed Modules

IndraDyn encoder module, Analog I/O extension module, Safety module

Vacant Slots

1

Safety Module Feature

Supports starting lockout

Control Section Type

Advanced, includes integrated RS-232 interface and several analog and digital I/Os

Minimum SERCOS Cycle Time

250 microseconds

Positon Control Cycle Time Options

250 and 500 microseconds

Velocity Control Cycle Time Options

125 and 250 microseconds

Current Control Cycle Time Options

62.5 and 125 microseconds

Switching Frequency Options

2 kilohertz, 4 kilohertz, 8 kilohertz, 12 kilohertz and 16 kilohertz

Configuration Method

Standard Control Panel or PC with programming software

Operating Voltage

24 Volts DC

Power Draw

7.5 Watts

Power Consumption (Analog Extension Module)

2 Watts

Power Consumption (Encoder Module)

6 Watts

Power Consumption (Safety Module)

2 Watts
