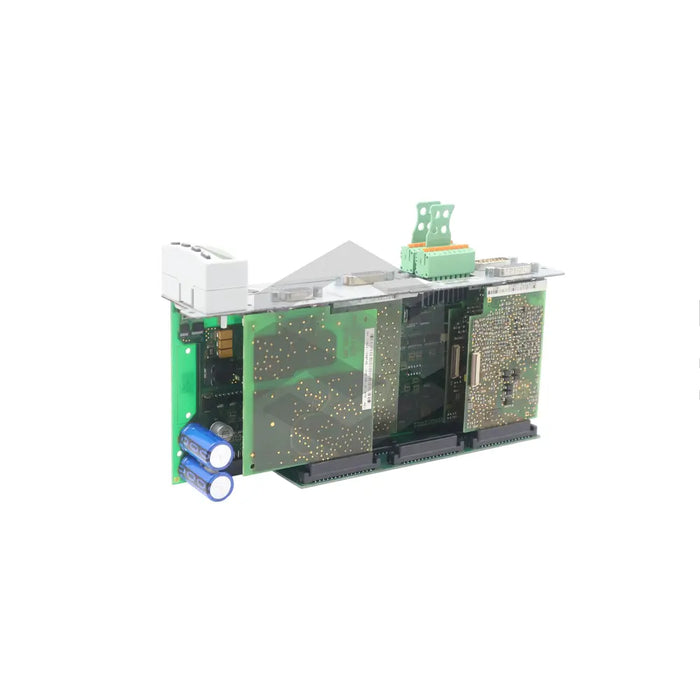

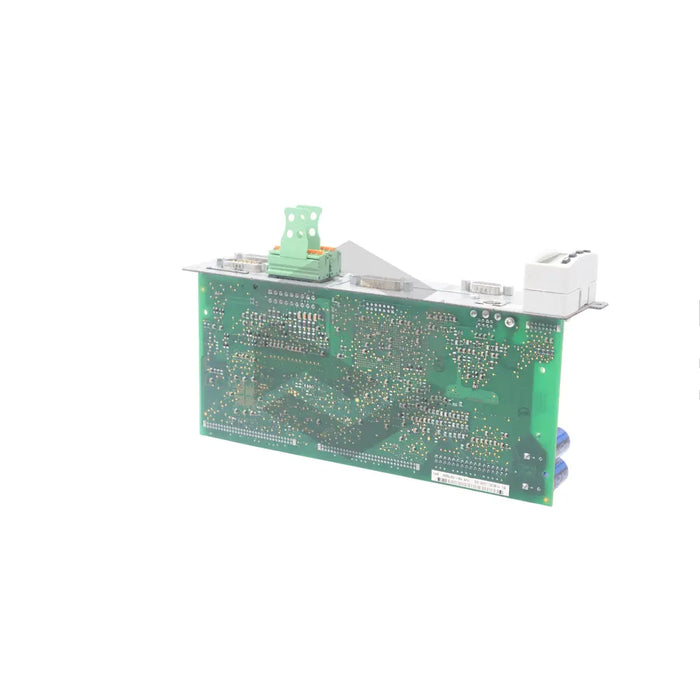

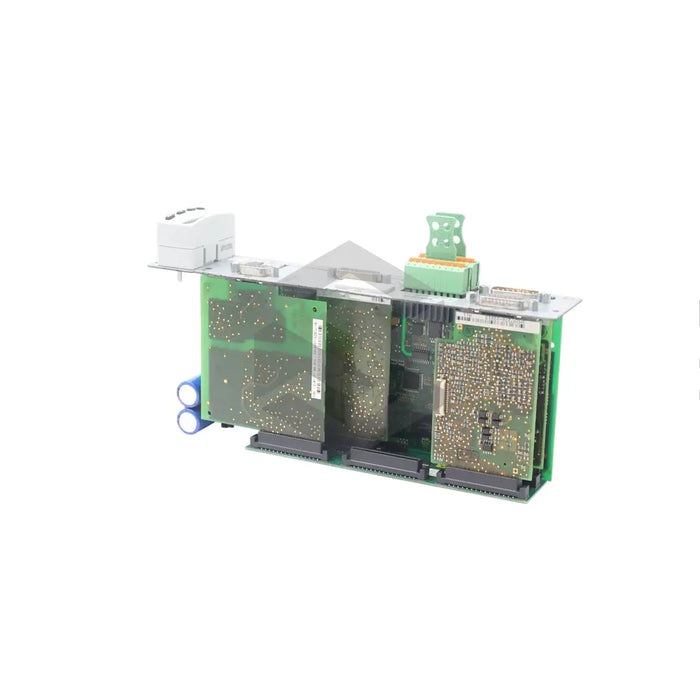

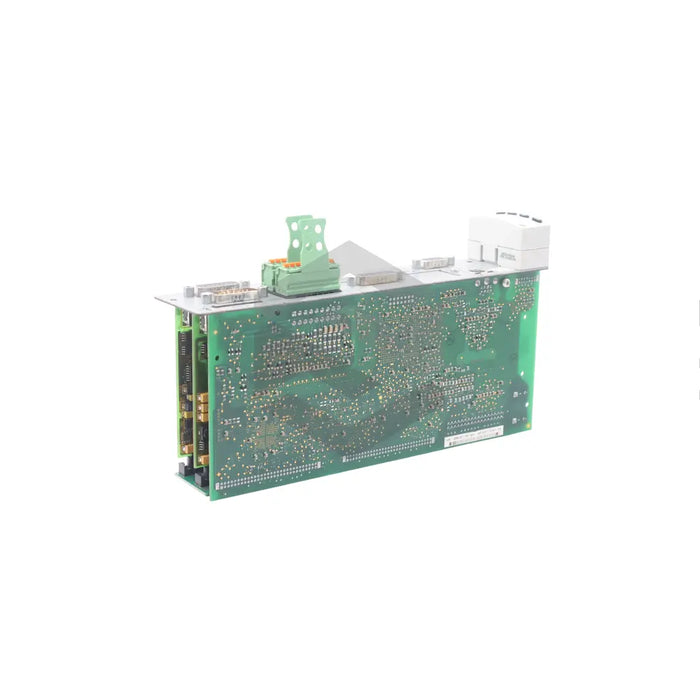

CSH01.1C-PB-EN1-EN2-MA1-NN-S-NN-FW

Request a quote
The CSH01.1C-PB-EN1-EN2-MA1-NN-S-NN-FW is an industrial drive controller control section conceptualized and manufactured by Rexroth Indramat. It is fabricated to regulate synchronous and induction motors in line with international quality standards used in industrial servo systems. This control section collaborates with a power section to derive maximum efficiency. While usually integrated into the power section, the onus falls on the operator to carry out the integration when the two sections come separately. As a member of the C3 product class, it's operational efficiency relies on high residential voltage supply. To prevent penetration of solid entities, its IP20 protection class can be enhanced by integrating it into a control cabinet of, at least, the IP54 protection class. Its PROFIBUS communication module aligns digital information transfer within the servo system. Features include a standard control panel, a safety technology slot, 7-11 digital inputs and up to 4 digital outputs. It can be installed up to a maximum height of 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial drive controller control section
  • Associated Motor Types: Synchronous and induction motors
  • Product Integration: Either integrated with power section or supplied separately
  • Product Category: C3
  • Protection Class: IP20
  • Recommended Protection: IP54 control cabinet
  • Communication Module: PROFIBUS
  • Control Panel Features: One-line display unit, Four pressure-sensitive keys
  • Configuration Slot: Yes, for safety technology
  • Digital Inputs: 7 to 11
  • Digital Outputs: 0 to 4
  • Maximum Install Height: 1000 meters above sea level
