S image of CSH01.1C-PB-EN1-NNN-MD2-L2-S-NN-FW

CSH01.1C-PB-EN1-NNN-MD2-L2-S-NN-FW

by Bosch Rexroth Indramat
$1,824.38 - $1,824.38
$1,824.38
$1,824.38 - $1,824.38
$1,824.38

In Stock, Ships 1 - 3 Days

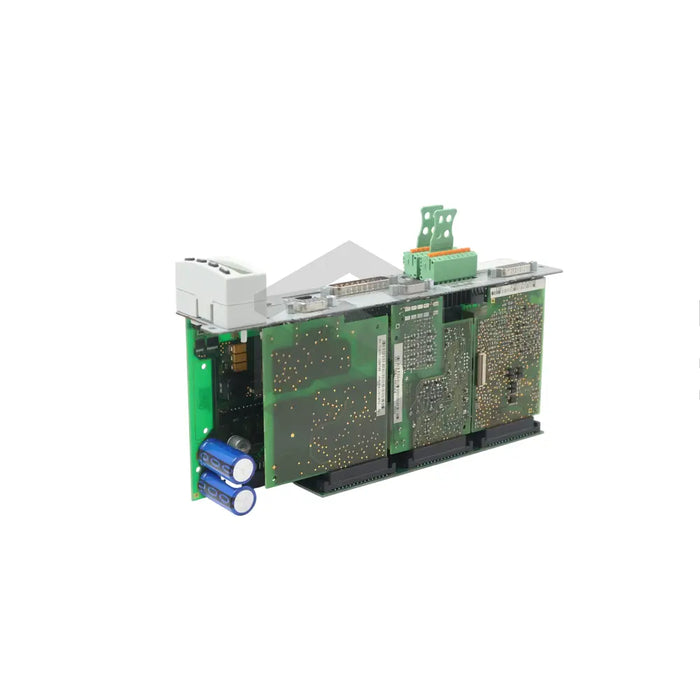

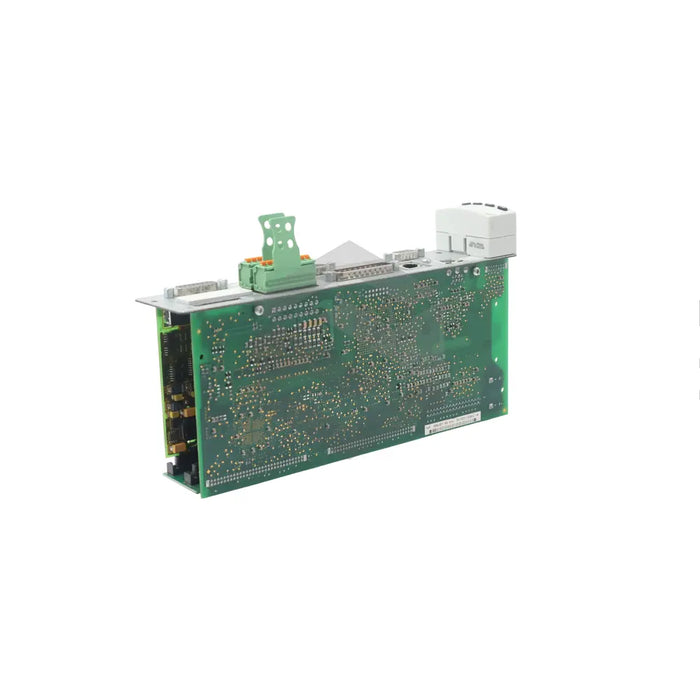

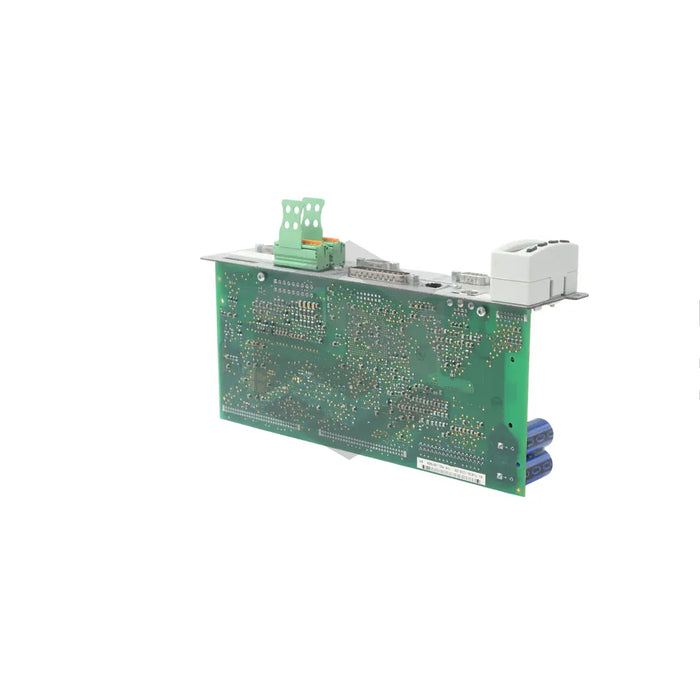

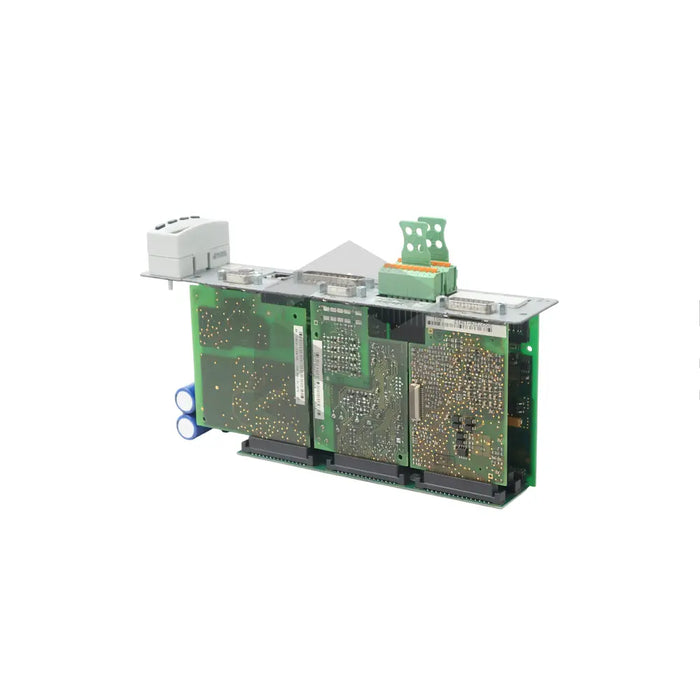

The CSH01.1C-PB-EN1-NNN-MD2-L2-S-NN-FW, a CSH series control section by Bosch Rexroth Indramat, includes multiple optional modules. A safety module offers the safe torque off function and utilizes a D-sub 9-pin female interface, compatible with a stranded copper wire of 0.25 to 0.5 mm2. A digital I/O extension module with SSI encoder interface supports 16 digital inputs and outputs, each galvanically isolated and accessible via a 44-pin D-sub high-density interface. SSI encoder connectivity, determined by SSI clock frequency, ranges from 40-75 meters and requires two-part connection cables. Additionally, the control section includes an encoder HSF/RSF module for compatibility with motors offering resolver or digital servo feedback. This component facilitates Profibus master communication and necessitates an activated terminating resistor on the first and last Profibus network node. Usually part of an assembled IndraDrive controller, this unit needs a power section mount when supplied separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH Series

Model Number

CSH01.1C-PB-EN1-NNN-MD2-L2-S-NN-FW

Safety Module Feature

Supports safe torque off safety function

Safety Module Interface

D-Sub 9-pin female

Suitable Wire Type

Stranded copper wire with 0.25 to 0.5 mm2 cross-section

Module Type

Digital I/O Extension with SSI Encoder Interface

Digital Outputs

16

Digital Inputs

16

Galvanic Isolation

Available for digital inputs and outputs

Encoder Interface

RJ12 with 6 pins

Maximum Line Length

75 meters at 125 / 250 / 500 kilohertz and 40 meters at 1000 kilohertz

Encoder Cable Segment 1

1.5-meter cable from X16 to the coupling element

Encoder Cable Segment 2

Adapter cable between the connection cable and the encoder

Additional Module

Encoder HSF / RSF module

Support

Resolver feedback or digital servo feedback

Communication Type

Profibus Master

Profibus Connector Requirement

A Terminating resistor must be active on the first and last node

Default Supply

As part of assembled IndraDrive drive controller

Mounting Requirement

Must be mounted onto a power section when supplied separately.
