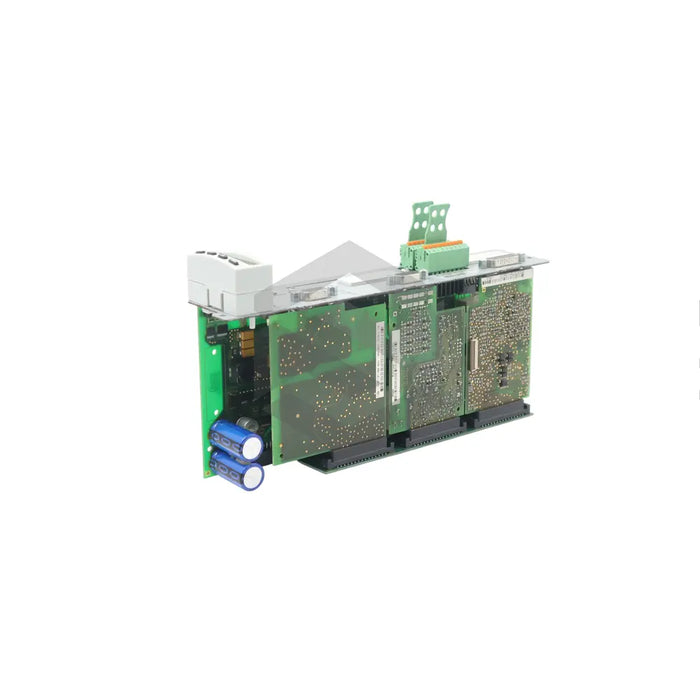

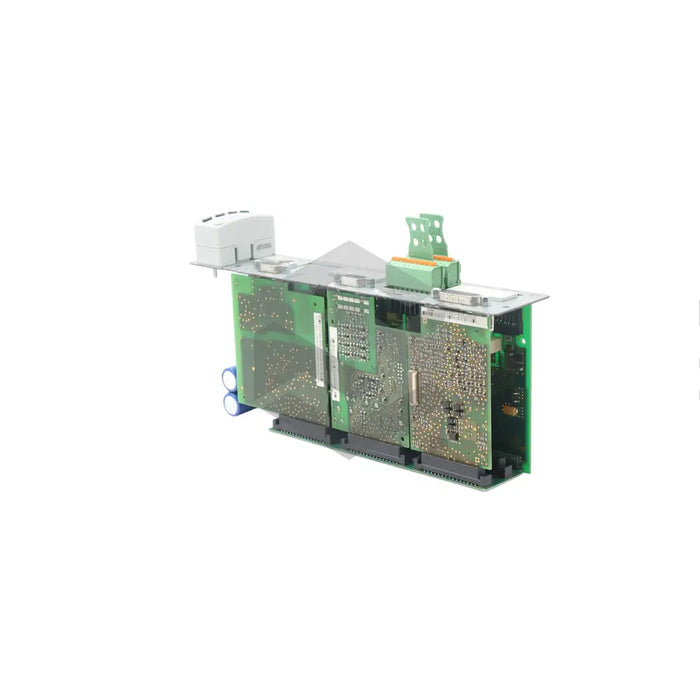

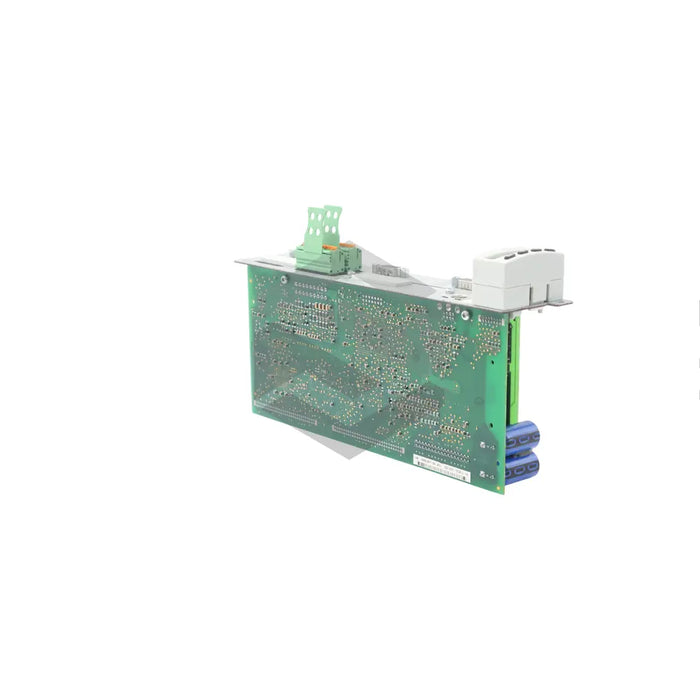

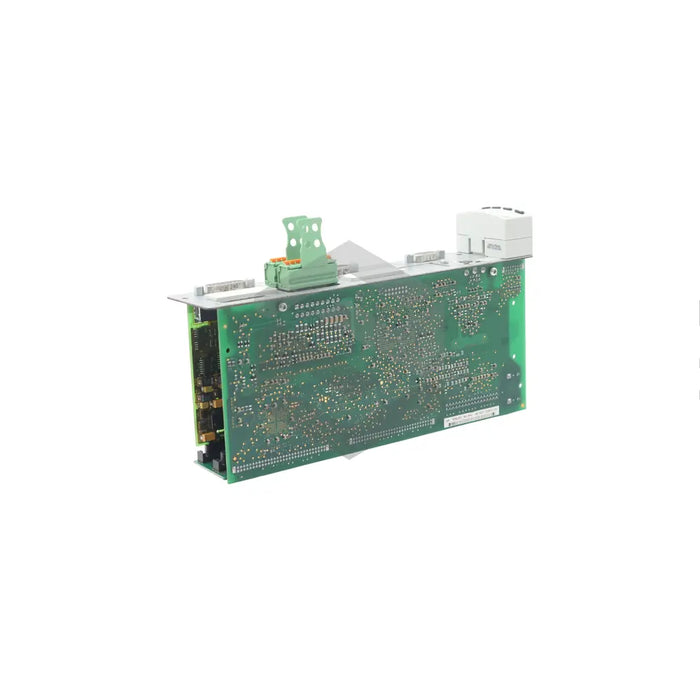

CSH01.1C-PB-EN1-NNN-NNN-L1-S-NN-FW

Request a quote
The CSH01.1C-PB-EN1-NNN-NNN-L1-S-NN-FW, developed by Bosch Rexroth Indramat, belongs to the IndraDrive drive system's suite of drive controllers. Aimed at controlling electric motors and watching their functionality, they are compact elements in the system comprise of control and power sections. This specific model, part of the advanced CSH01 series, is chiefly designed to deliver high performance and dynamics. Its PROFIBUS communication module aids in cylically swapping specified and actual values with bus users, and also facilitates easy startup of the drive controller with Bosch Rexroth's IndraWorks software. It features an incorporated interface for Resolver and HSF Encoder Evaluation supporting systems with a supply voltage of DC 8V or AC 18.2V peak-peak. Additionally, it includes the safety feature of starting lockout, preventing unintentional motor startups when the system is deactivated for troubleshooting, compliant with EN60204-1 stop category 0. The standard user panel allows accessing the error memory, initiating the basic load default operation, setting the drive address, configuring the analog outputs, and organizing the position data reference.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Rexroth IndraDrive drive system
  • Product Type: Drive Controllers
  • Product Model: CSH01.1C-PB-EN1-NNN-NNN-L1-S-NN-FW
  • Used In: Handling and mounting systems, machine tools, packaging and food machines, printing and paper processing machines
  • Range: ADVANCED control section
  • Communication Module: PROFIBUS
  • Supported Software: IndraWorks software for PC
  • Integrated Interface: Resolver and HSF Encoder Evaluation
  • Supported Supply Voltage: DC 8V or AC 18.2V peak-peak
  • Integrated Safety Technology: Starting lockout
  • Stop Category: 0 according to EN60204-1
  • User Panel Functions: Accessing error memory, starting basic load defaults procedure, setting drive address and analog outputs, establishing position data reference.
