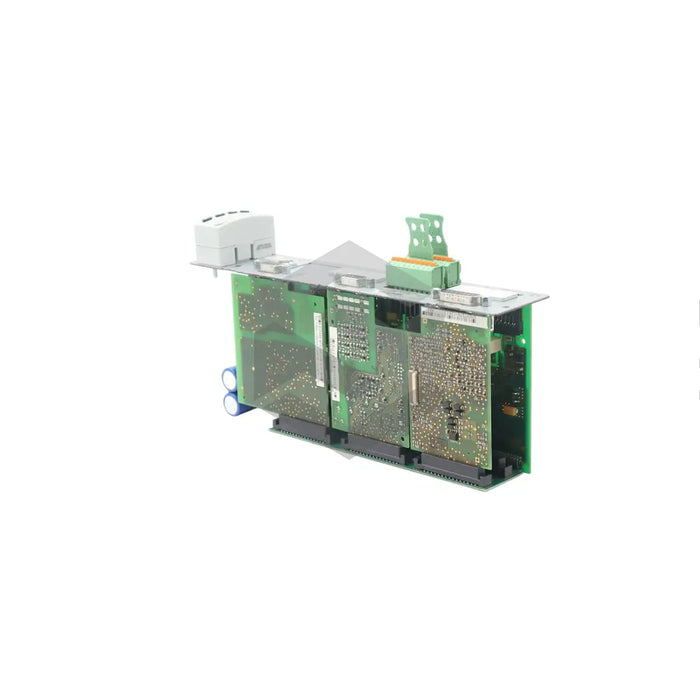

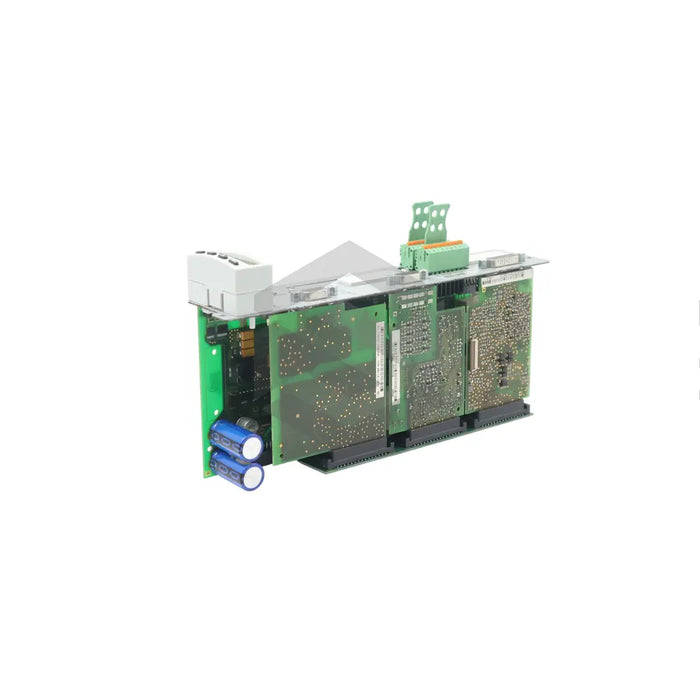

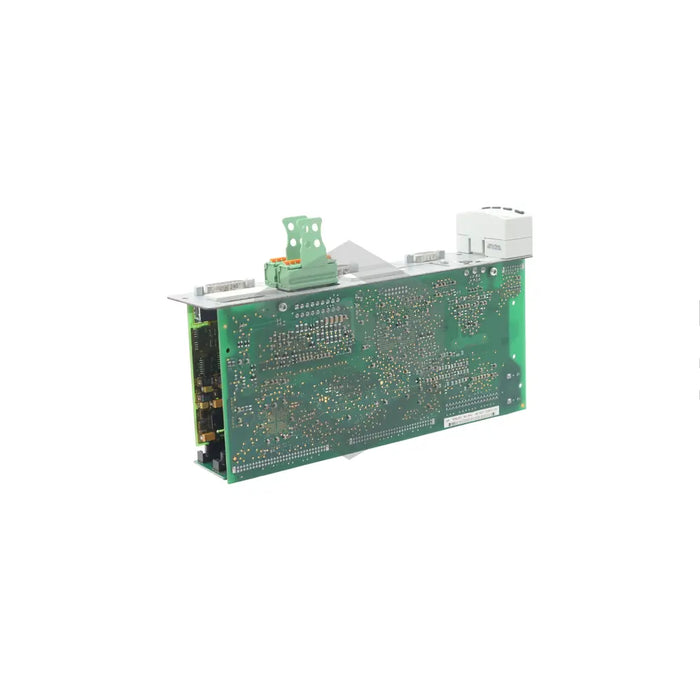

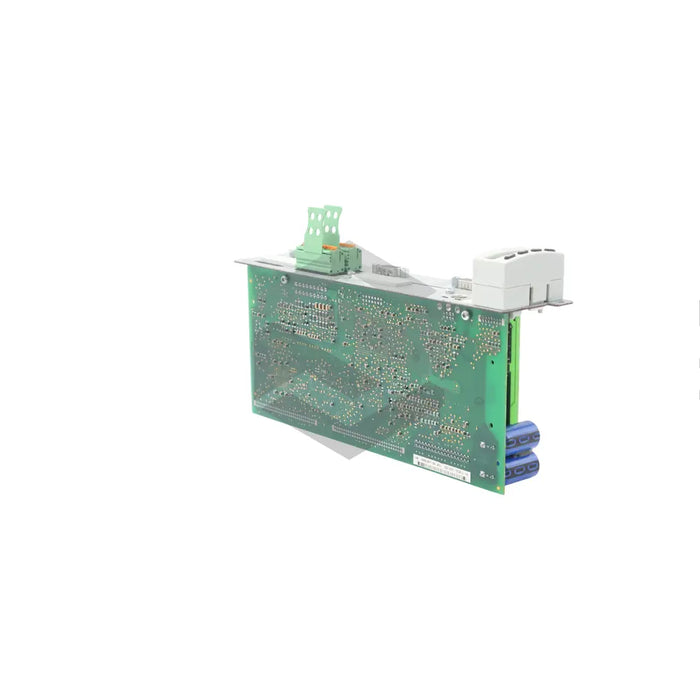

S image of CSH01.1C-PB-EN1-NNN-NNN-L2-S-NN-FW

CSH01.1C-PB-EN1-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$1,767.92 - $8,883.56
$1,767.92
$1,767.92 - $8,883.56
$1,767.92

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN1-NNN-NNN-L2-S-NN-FW is a Bosch Rexroth Indramat-manufactured single-axis control section, forming an integral component of the ADVANCED Rexroth Indramat drive controller. While normally part of the drive controller package, it may occasionally be acquired separately. The control section interfaces through a PROFIBUS network and uses a connected module, compatible with MKD, MKE and MHD motor encoder systems, for resolvers and encoders via an HSF interface. Furthermore, it uses a 24V power supply source via terminal connectors. The control panel is standard, featuring a single-line informational display and four keys for straightforward commissioning. It employs the Safe Torque Off safety measure to prevent unexpected drive restarts. Rexroth Indramat approves any accessory use and it is critical to adhere to it. Equipped with an integral protective diode and firmware for data management, the control section may only be installed a maximum of 20 times to ensure its operational longevity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH 01

Product Model

CSH01.1C-PB-EN1-NNN-NNN-L2-S-NN-FW

Product Type

ADVANCED Configurable Single-Axis Control Section

Master Communication Network

PROFIBUS

Standard Equipment

Module for Resolvers and Encoder Systems with HSF Interface, 8 V Power Supply

Standard Motor Systems

MKD, MKE, MHD

Power Supply

Terminal Connectors 24 V

Control Panel

Single Line Display and Four-Key Setup

Safety Technology

Safe Torque Off

Accessories

Must be Rexroth Indramat Endorsed Parts

Firmware Function

Reading, Storing and Executing Data Transfer

Connection Points

Spring Terminals and Screw Terminal Blocks

Additional Features

Protective Diode, Max Mounting and Dismounting of 20 Times
