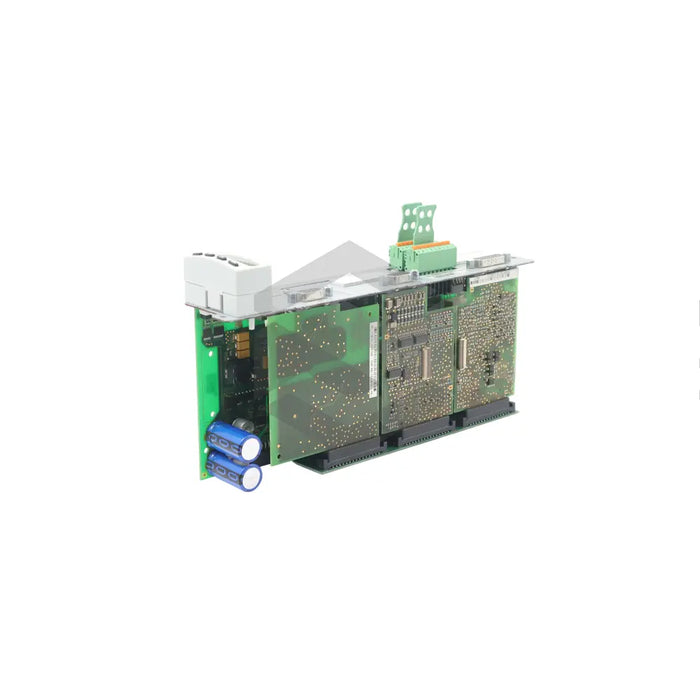

S image of CSH01.1C-PB-EN1-NNN-NNN-S2-S-NN-FW

CSH01.1C-PB-EN1-NNN-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$1,767.92 - $8,883.56
$1,767.92
$1,767.92 - $8,883.56
$1,767.92

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN1-NNN-NNN-S2-S-NN-FW, developed by industry innovator Bosch Rexroth Indramat, is a rigorously tested control section and drive controller designed for single-axis drive applications. Equipped with four digital outputs and one analog input, it supports a range of activities, provided it is configured prior to usage. The CSH01.1 model, offering 7 to 11 digital inputs, emits a control current of 62.5 to 125 microseconds, speed control of 125 to 250 microseconds, and position control of 250 to 500 microseconds. This controller's PWM frequency is adjustable from 2 kHz to 16 kHz, and operated with S2 safety technology and optional HSF/RSF encoder. The firmware offers substantial functionality but requires separate purchase. The model, demanding 7.5 W of power and a pulse width of 100 milliseconds, is commonly utilized in industrial automation contexts like printing equipment and food packaging. However, thorough understanding of the supporting documentation is necessary prior to installation and operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-EN1-NNN-NNN-S2-S-NN-FW

Digital Outputs

4

Analog Input

1

Usage

Single-axis drive and control applications

PWM Frequency Range

From 2 kHz to 16 kHz

Additional Hardware

Firmware (to be bought separately)

Digital Inputs

7 to 11

Control Current

62.5 to 125 microseconds

Speed Control

125 to 250 microseconds

Position Control

250 to 500 microseconds

Communication

PROFIBUS master

Analog Outputs

2

Power Requirement

7.5 W

Pulse Width

100 milliseconds

Common Applications

Industrial automation, Printing equipment, Food packing

Safety Technology

S2 with HSF/RSF encoder option

Delivery Method

Delivered to provided location
