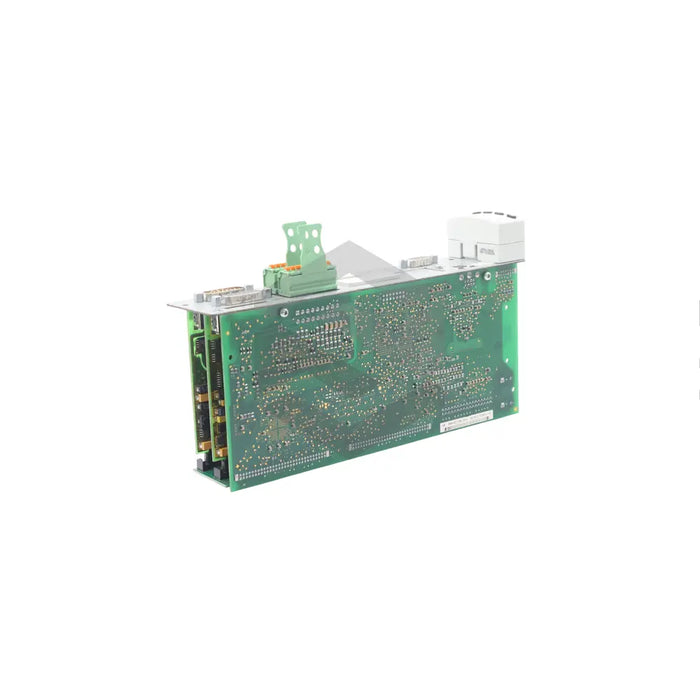

S image of CSH01.1C-PB-EN2-EN1-NNN-NN-S-NN-FW

CSH01.1C-PB-EN2-EN1-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$1,767.92 - $8,883.56
$1,767.92
$1,767.92 - $8,883.56
$1,767.92

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN2-EN1-NNN-NN-S-NN-FW is a product of Bosch Rexroth Indramat, reputable for their superior industrial automation equipment such as control sections, drive controllers, drive converters, and inverter modules. This model, known for its durability, is designed to be used only within the parameters outlined in its manual to avoid property damage or personal injury. The model features an EnDat 2.1 encoder as option 1, capable of velocity control in 125-250ms range, current control in 62.5-125ms range and position control in 250-500ms range. Option 2 includes an HSF/RSF encoder with one analog input. It operates on a firmware purchased separately and a 24V DC power supply. It draws 7.5kW power, has 11 digital inputs, 4 digital and 2 analog outputs. Additionally, it includes a relay contact that switches at 2 to 16 Hz, a standard control panel, and a PROFIBUS master communication utilizing a 0.75 to 1.50 mm diameter stranded wire.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.1C-PB-EN2-EN1-NNN-NN-S-NN-FW

Product Type

Industrial Automation Products

Use

Operational Setting Specified in Manual

Encoder Option 1

EnDat 2.1

Digital Inputs

11

Velocity Control Range

125-250 Milliseconds

Current Control Range

62.5-125 Milliseconds

Position Control Range

250-500 Milliseconds

Encoder Option 2

HSF/RSF Encoder

Analog Inputs

1

Power Supply Required

24-Volt DC

Pulse Width

100 Milliseconds Max

Firmware

Must Be Purchased Separately

Power Used

7.5 kW

Digital Outputs

4

Analog Outputs

2

Relay Contacts

1

Switching Frequency

2 to 16 Hz

Control Panel

Conventional

Minimum SERCOS Cycle Duration

250 Microseconds

Communication

PROFIBUS Master

Wire Diameter

0.75 to 1.50 mm
