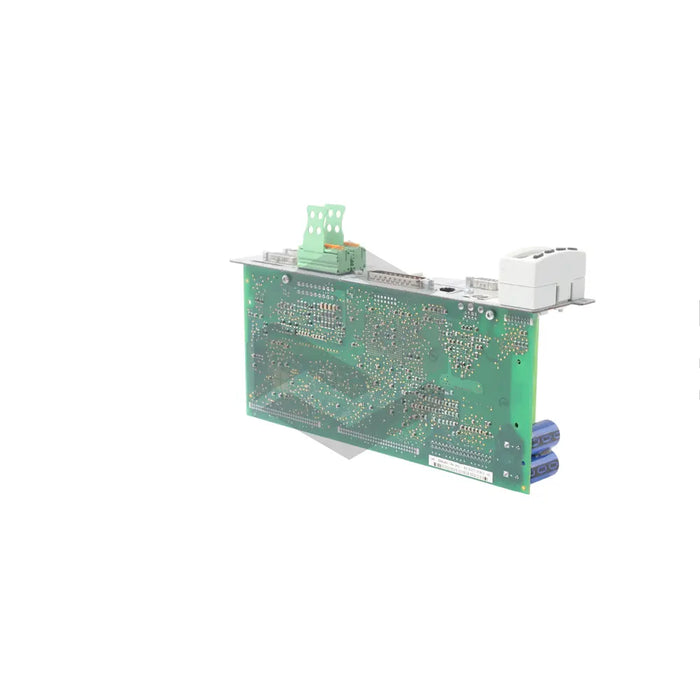

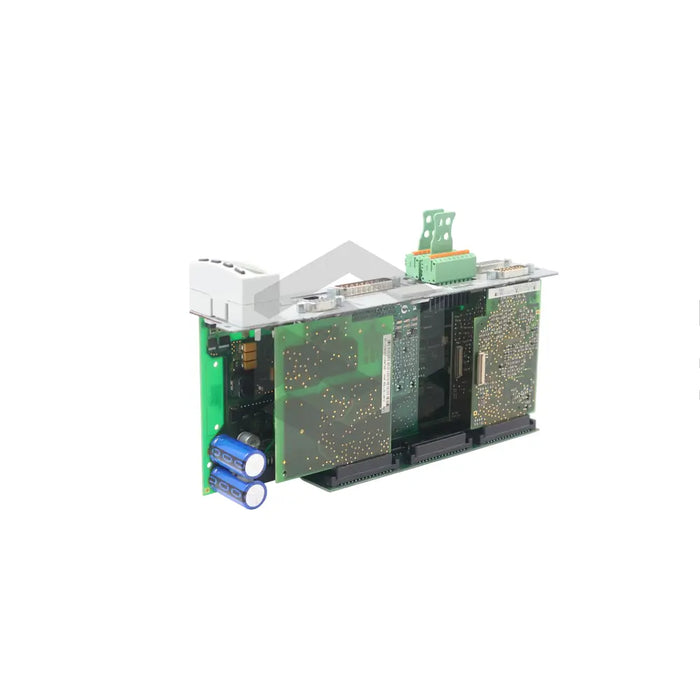

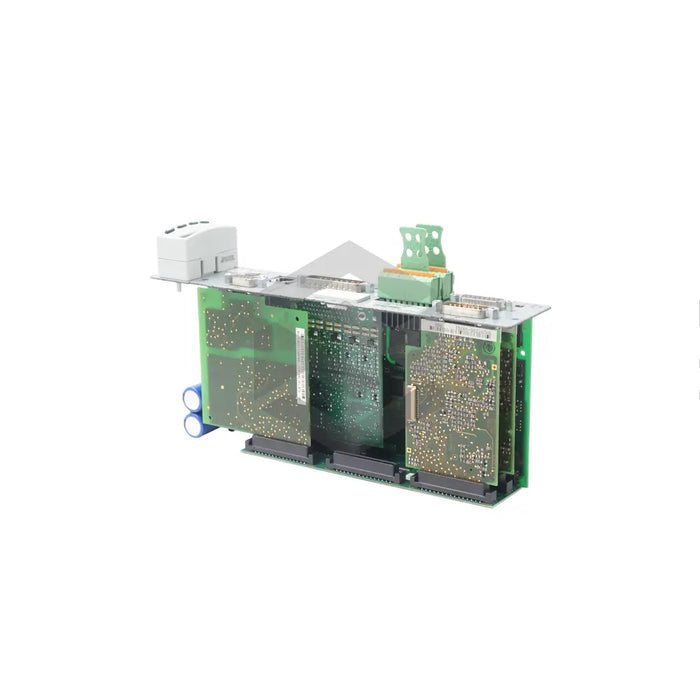

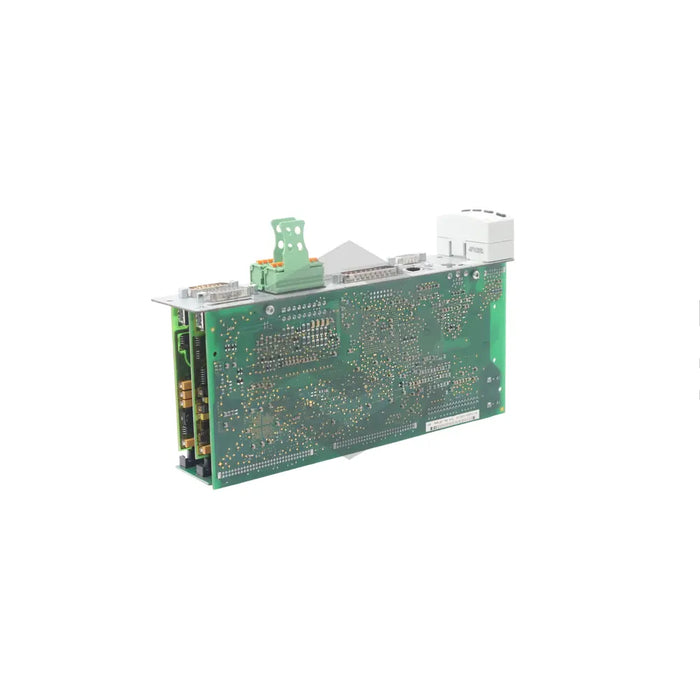

S image of CSH01.1C-PB-EN2-EN2-MD2-NN-S-NN-FW

CSH01.1C-PB-EN2-EN2-MD2-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,217.81 - $2,217.81
$2,217.81
$2,217.81 - $2,217.81
$2,217.81

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN2-EN2-MD2-NN-S-NN-FW by Bosch Rexroth Indramat is an innovative single-axis drive controller, commonly utilized in the industries of machine tools, handling and mounting systems, printing, packaging, and food processing. Featuring a PROFIBUS communication module and 7 to 11 configurable digital inputs, this model allows for robust control over velocity, current, and position with the cycle time function. The product contains a control section equipped with four digital outputs, a relay contact, and two EnDat2.1 encoders. Furthermore, it has a separate yet connected power section. Measuring 103mm x 49.5mm x 241mm in dimensions, this drive controller also boasts a SERCOS cycle period of a minimum of 250 microseconds and includes a standard control panel. Optionally, the control section can be equipped with a digital extension with an SSI encoder interface.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control sections, drive controllers, frequency converters, brake choppers, inverter modules, and drive converters

Model

CSH01.1C-PB-EN2-EN2-MD2-NN-S-NN-FW

Communication Module

PROFIBUS

Digital Inputs

7 to 11 with customizable settings

Velocity Control Range

125 to 250 microseconds

Current Control Range

62.5 to 125 microseconds

Position Control Range

250 to 500 microseconds

Outputs

Four digital outputs and a single relay contact

Encoder

EnDat2.1 (option 1 encoder)

Dimensions

103mm (width) x 49.5mm (depth) x 241mm (height)

SERCOS Cycle Period

Minimum of 250 microseconds

Additional Features

Comes with an EnDat2.1 encoder (option 2) and a standard control panel

Interface

Digital extension with an SSI encoder interface (option 3)

Use Case

Used in single-axis drive controller systems for machine tools, handling and mounting systems in industries such as printing, packaging, and food processing.
