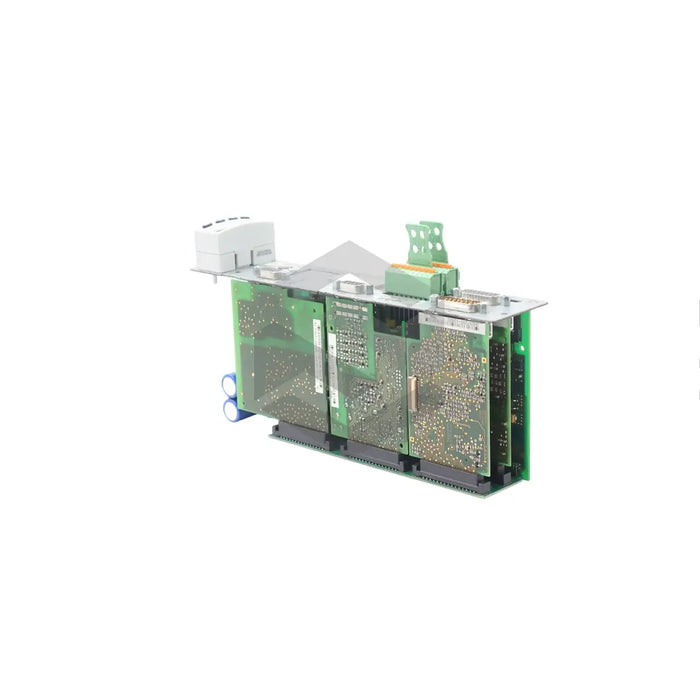

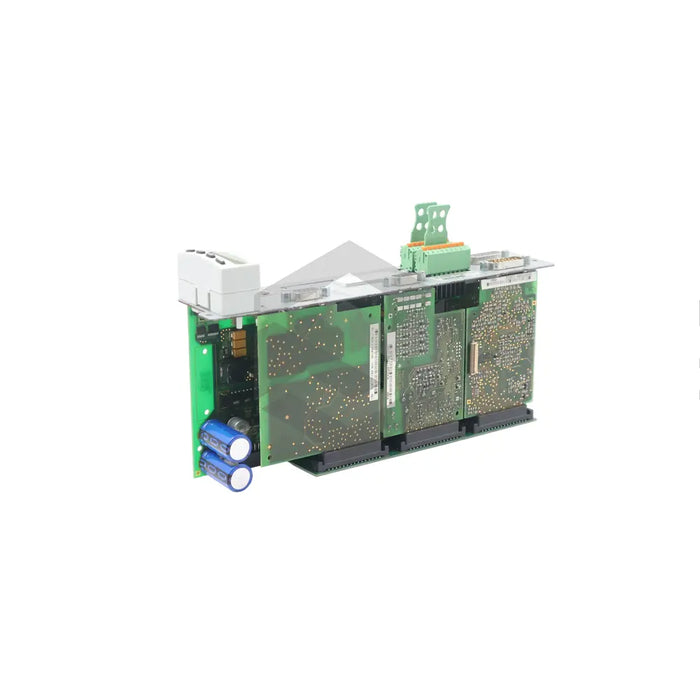

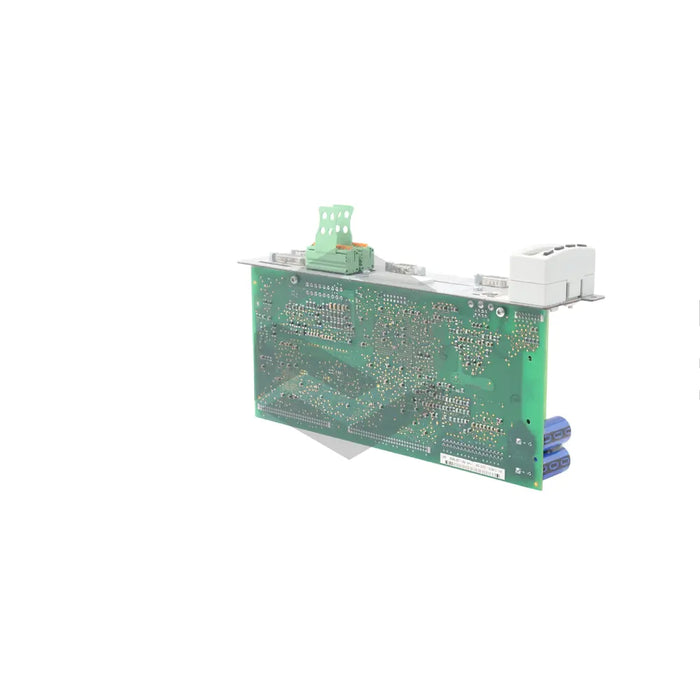

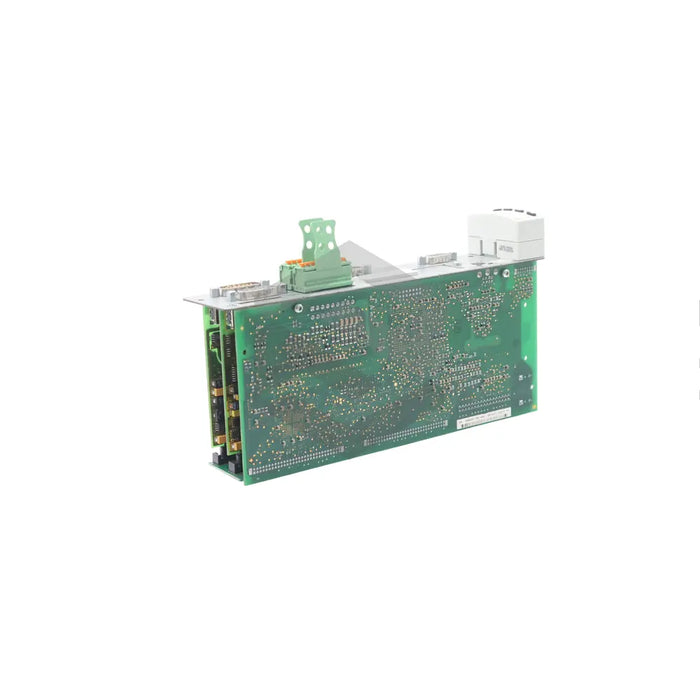

S image of CSH01.1C-PB-EN2-EN2-NNN-L1-S-NN-FW

CSH01.1C-PB-EN2-EN2-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
$1,803.49 - $8,883.11
$1,803.49
$1,803.49 - $8,883.11
$1,803.49

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's CSH01.1C-PB-EN2-EN2-NNN-L1-S-NN-FW is a sophisticated single-axis drive controller intended for use in intricate industrial applications, including machine tools, packaging, printing, and food processing sectors. This component forms part of a broader drive system and operates in conjunction with EnDat2.1 encoders. The unit consists of four digital outputs, one relay contact, and customizable multi-function software. Although integrated, the controller's power and control sections are distinct. The model measures 103mm wide, 49.5mm deep, and 241mm high. It features a minimum SERCOS cycle time of 250 microseconds and a safety lockout option for added security. The controller can communicate via PROFIBUS and contains between seven to eleven user-configurable digital inputs. The velocity control and cycle time function can be fine-tuned for specific application requirements. The device should be operated under prescribed environmental conditions to assure maximum performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Industry Scope

Global with operations in more than 100 countries

Products

Control sections, drive controllers, frequency converters, brake choppers, inverter modules, and drive converters

Model Name

CSH01.1C-PB-EN2-EN2-NNN-L1-S-NN-FW

Function

Single-axis drive controller for machine tools, handling, and mounting systems

Industries Served

Printing, packaging, and food processing

Encoders

EnDat2.1 encoders (options 1 and 2)

Device Outputs

Four digital outputs

Device Inputs

7-11 digital inputs with user-configurable parameters

Relay Contacts

Single

Software

Multi-function software (purchased separately)

Key Components

Power portion and control section

Dimensions

103mm (width) x 49.5mm (depth) x 241mm (height)

Minimum SERCOS Cycle Period

250 microseconds

Environmental Conditions

Specified for optimal performance

Safety Features

Contains an L1 (beginning lockout) safety option and a conventional control panel

Extra Features

PROFIBUS communication module

Adjustability

Velocity can be adjusted from 125 to 250 microseconds, current from 62.5 to 125 microseconds, and the cycle time function's location from 250 to 500 microseconds.
