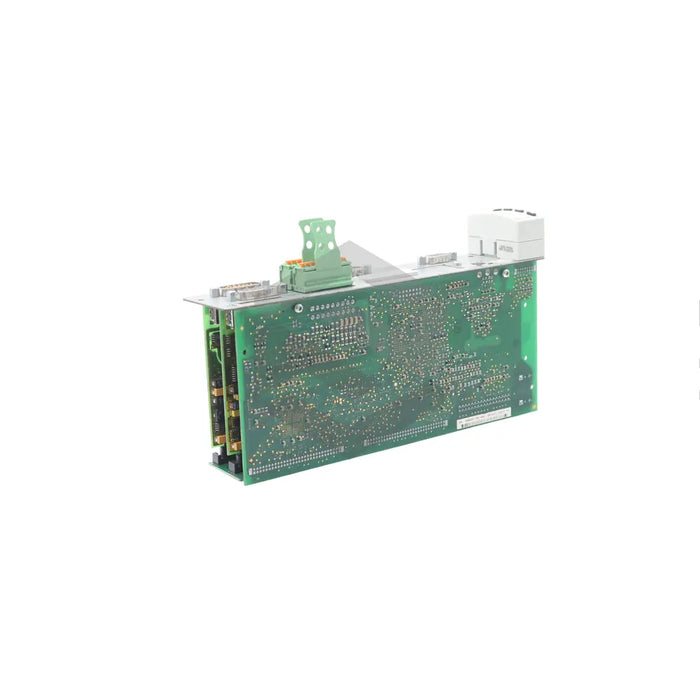

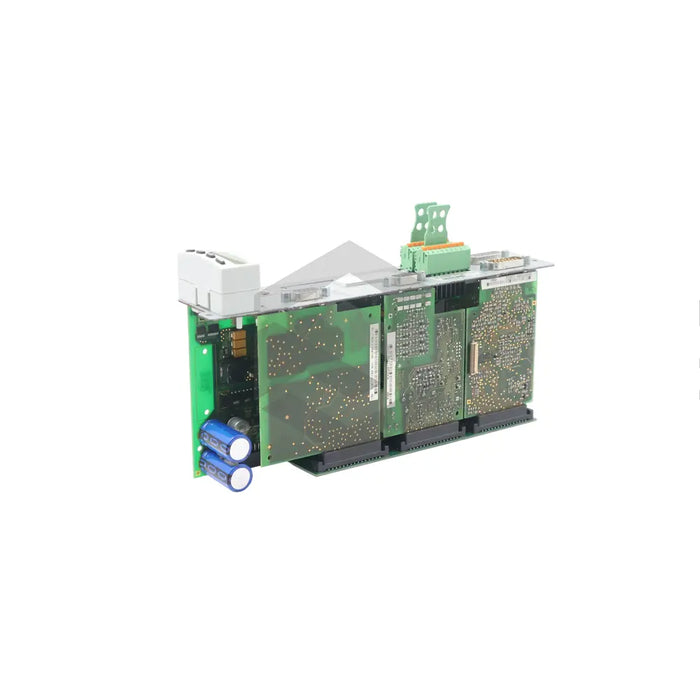

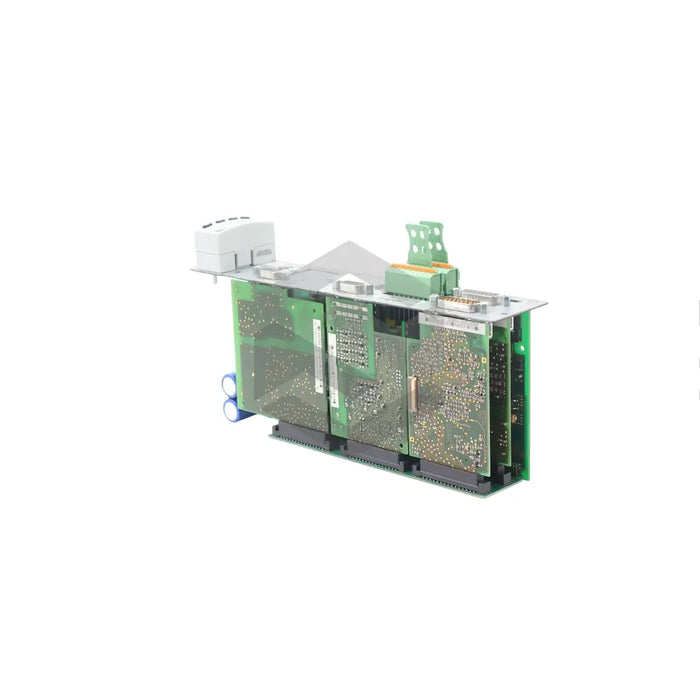

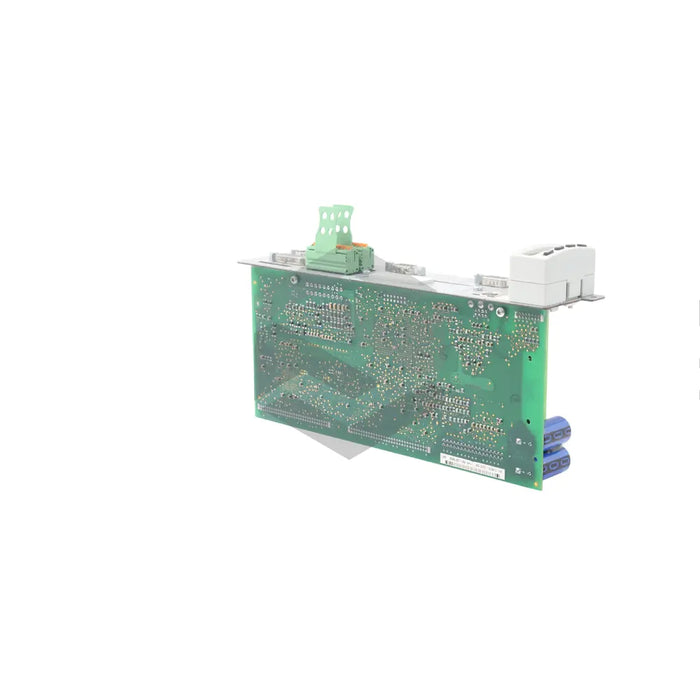

S image of CSH01.1C-PB-EN2-EN2-NNN-L2-S-NN-FW

CSH01.1C-PB-EN2-EN2-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$1,767.92 - $8,883.56
$1,767.92
$1,767.92 - $8,883.56
$1,767.92

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's CSH01.1C-PB-EN2-EN2-NNN-L2-S-NN-FW is a superior industrial automation component, known for its production and quality excellence. This model features four digital outputs, one analog input and two analog outputs all programmable. Velocity, current, and position controls are adjustable within 125-500 milliseconds. This model operates efficiently at 7.5kW power consumption and 4A inrush current. It includes EnDat2.1 encoders and relies on a 24-volt DC power source with a pulse width of 100 milliseconds. Although firmware is not included, it offers a PROFIBUS communication module, 11 digital inputs, and an optional L2 safety module. It operates using a single relay contact with a 2 to 16 Hz switching frequency. Designed exclusively for industrial use, safety and reliability are guaranteed, particularly when installed and operated by a trained technician. The model's SERCOS cycle times commence at 250 milliseconds and vary according to firmware version.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-EN2-EN2-NNN-L2-S-NN-FW

Digital Outputs

4 programmable

Analog Inputs

1

Analog Outputs

2

Cycle Time Function Velocity Control

125-250 milliseconds

Cycle Time Function Current Control

62.5-125 milliseconds

Cycle Time Function Position Control

250-500 milliseconds

Power Consumption

7.5 kW

Inrush Current

4 A

Encoder Type

EnDat2.1

Operating Pulse Width

100 milliseconds

Operating Voltage

24-volt DC

Firmware

Sold separately

Relay Contact

single

Switching Frequency

2 to 16 Hz

Digital Inputs

11

Safety Module

Optional L2

Communication Module

PROFIBUS

SERCOS Cycle Times

Starts at 250 milliseconds
