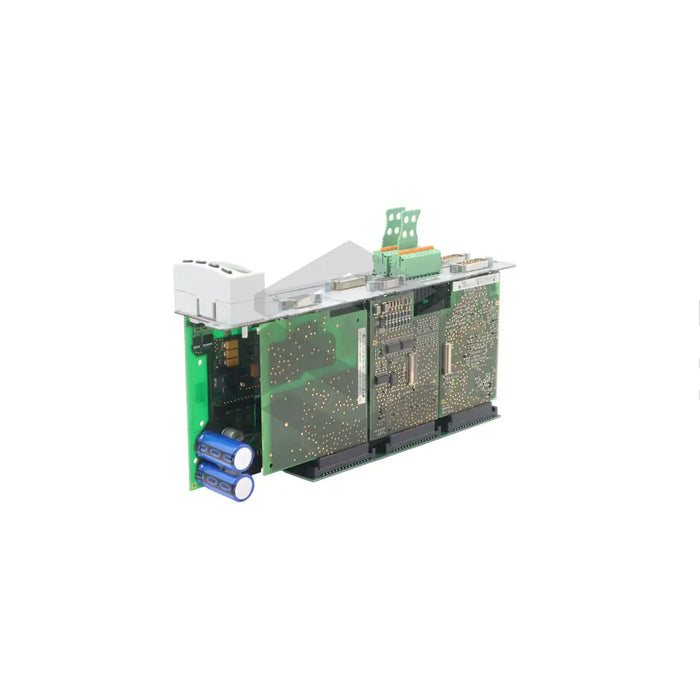

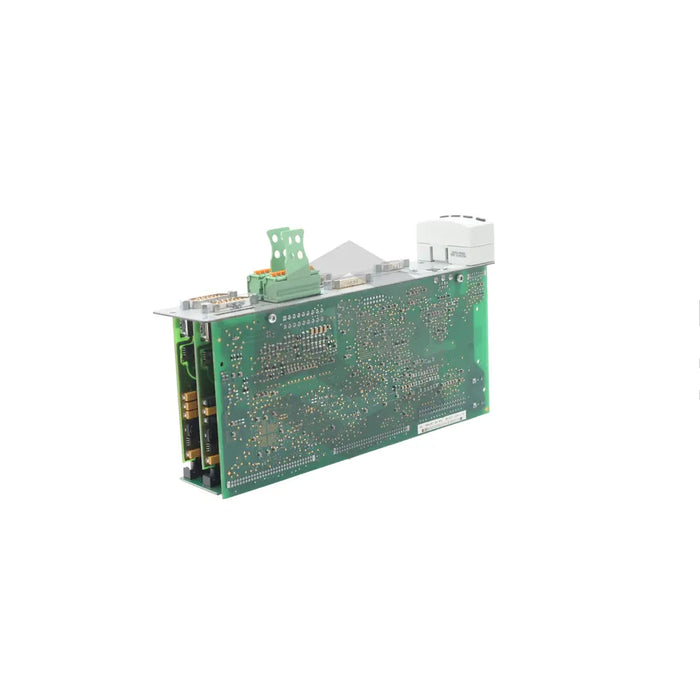

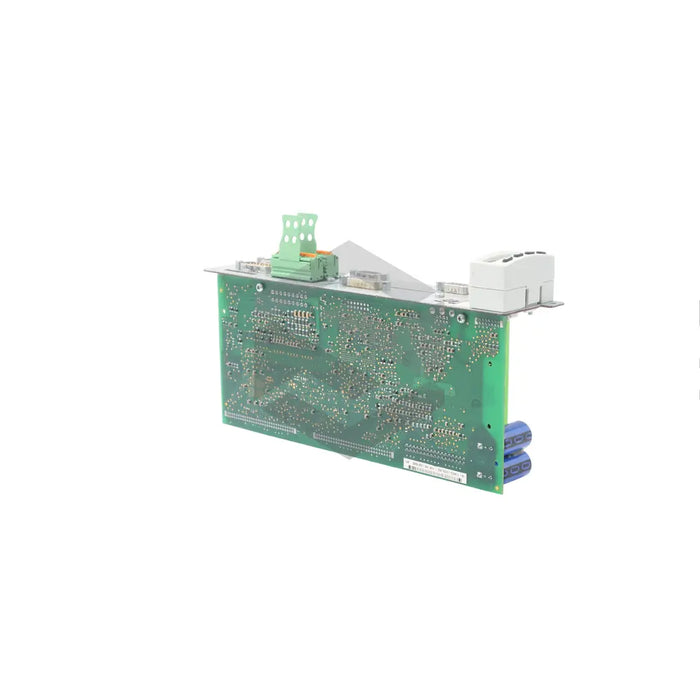

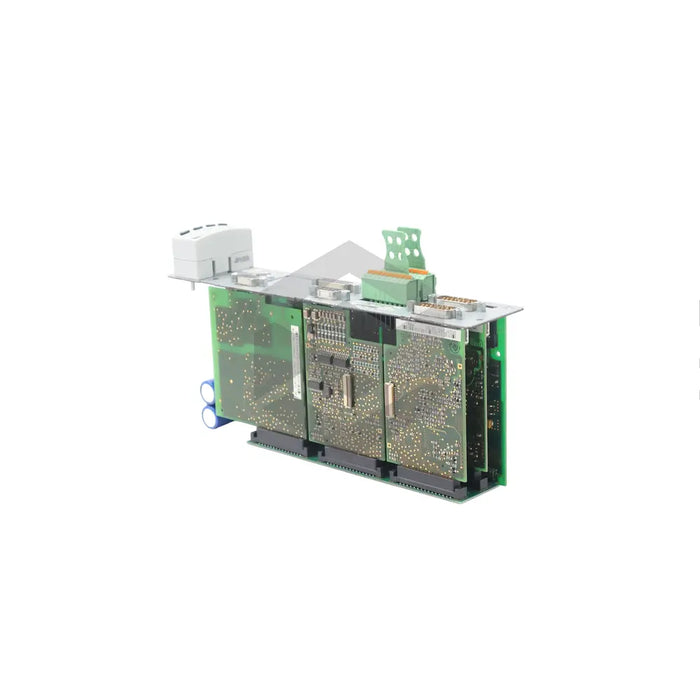

CSH01.1C-PB-EN2-MEM-MA1-S2-S-NN-FW
The Bosch Rexroth Indramat CSH01.1C-PB-EN2-MEM-MA1-S2-S-NN-FW is a sophisticated control section for IndraDrive controllers, handling all processing functions. Composed of two primary elements, the power and control sections, the control section can be a separate unit plugged into the power section, although it is typically supplied with the complete controller. The plug-in actions, limited to 20 to prevent hardware damage, operate at 24 Volt DC with a basic unit power draw of 7.5 Watts. Its total power consumption is subject to the power usage of the installed modules. It must be noted that the device is sensitive to electrostatic charges hence grounding of any conductive element in contact with it is necessary. Designed for approved applications like machine tools, paper machines, and handling systems, it comes pre-installed with modules like encoder EnDat 2.1, encoder emulation, an analog I/O extension, and a safety module with safe motion support. A programmed control panel should be linked prior to powering the unit for recognition.
