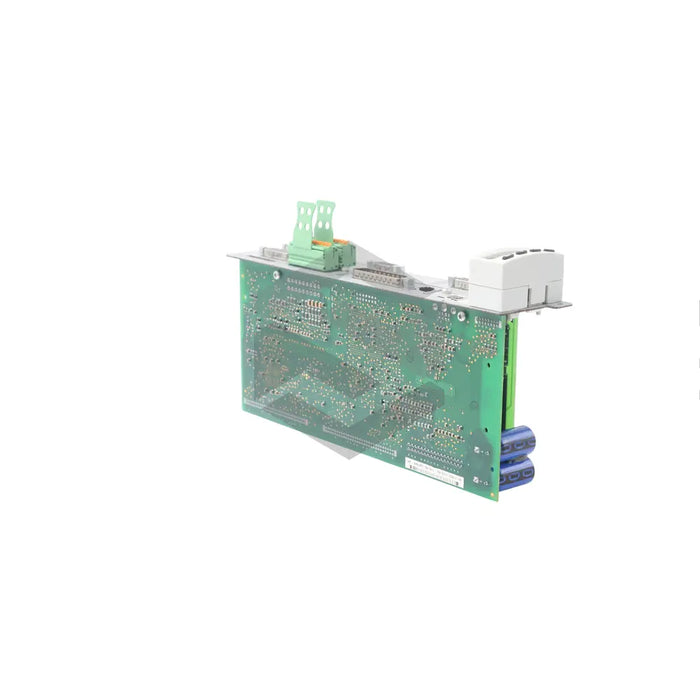

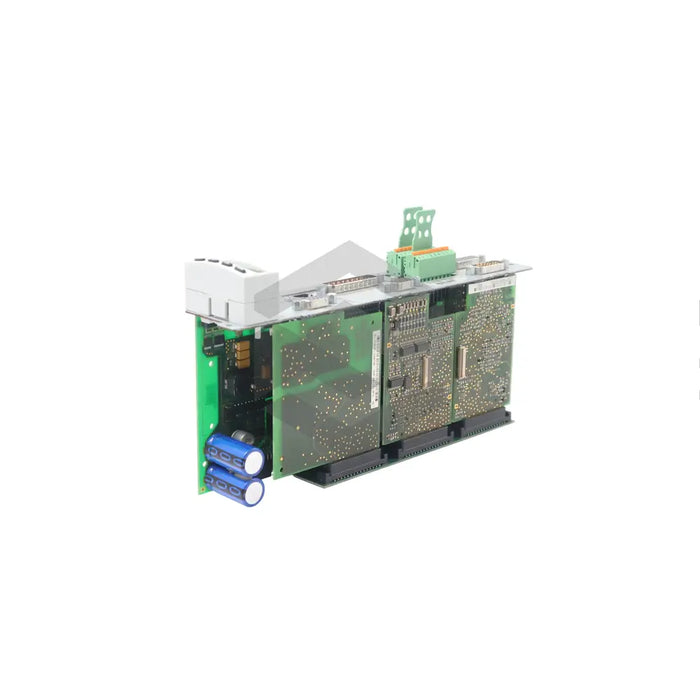

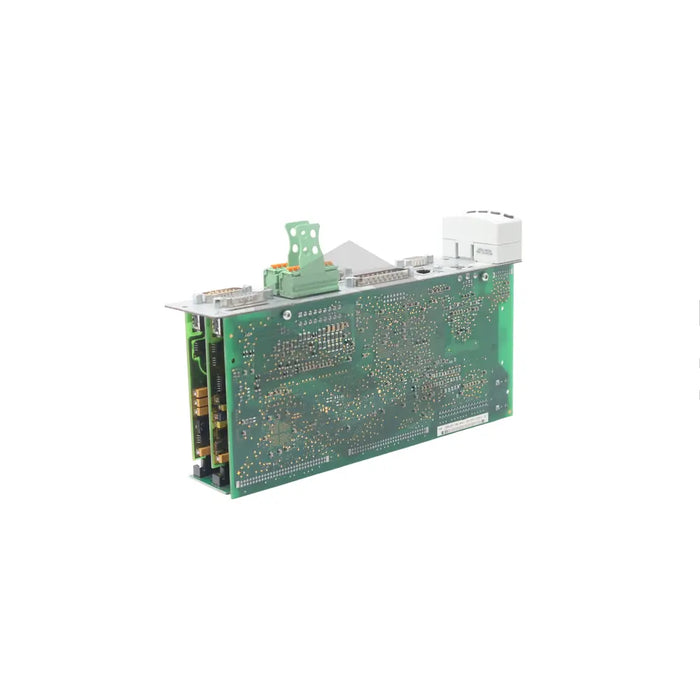

S image of CSH01.1C-PB-EN2-MEM-MD2-S2-S-NN-FW

CSH01.1C-PB-EN2-MEM-MD2-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,217.81 - $2,217.81
$2,217.81
$2,217.81 - $2,217.81
$2,217.81

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.1C-PB-EN2-MEM-MD2-S2-S-NN-FW is a progressive control section compatible with standard interfaces that use a single-line display without hot plug support. For recognition, the control must be connected pre-power up, with the four-button keypad allowing limited command inputs such as setting drive address, viewing error logs, and establishing position data references. The control unit utilizes a Profibus interface for master communication and has four slots; one for a safety module and three for optional units. The safety module enables safe motion functionality. The control section consumes 16.5W power with the power subdivided between various components; the encoder emulation and EnDat 2.1 module drawing 2W and 6W respectively, and a digital I/O expansion module drawing 1W. The control section itself requires 24V DC to operate. Connection points may use either spring terminals or screw terminal blocks, excluding solid wires. Wire crimping should apply suitable tools.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-EN2-MEM-MD2-S2-S-NN-FW

Control Compatibility

Standard control panels

Hot Plug Support

No

Display Features

Command diagnoses and operating states

Keypad Features

Four-button keypad, limited commands triggering

Master Communication Interface

Profibus

Number of Slots

Four (3 for optional modules, 1 for safety module)

Safety Support

Safe motion

Power Draw (Encoder Emulation Module)

2 Watts

Power Draw (Encoder EnDat 2.1)

6 Watts

Power Draw (Digital I/O Extension Module)

1 Watt

Power Draw (Basic Unit)

7.5 Watts

Total Power Consumption

16.5 Watts

Input Voltage

24 Volts DC

Memory Slot

Available

Connection Points

Spring terminals or screw terminal blocks

Solid Wires Usage

Not recommended

Wire Crimping

Appropriate Tools Required
