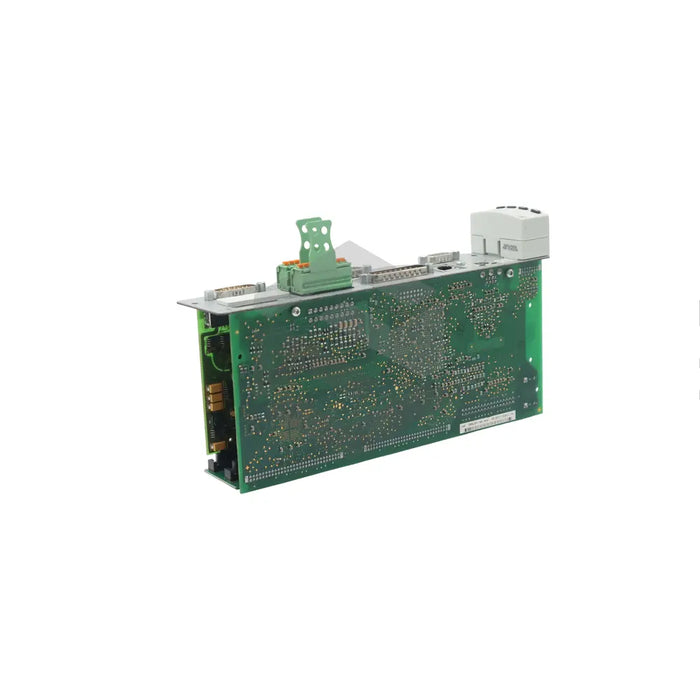

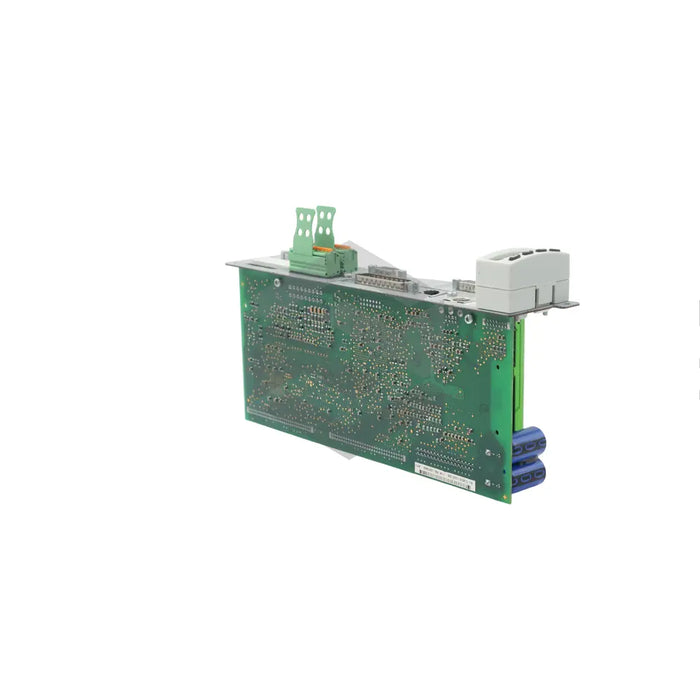

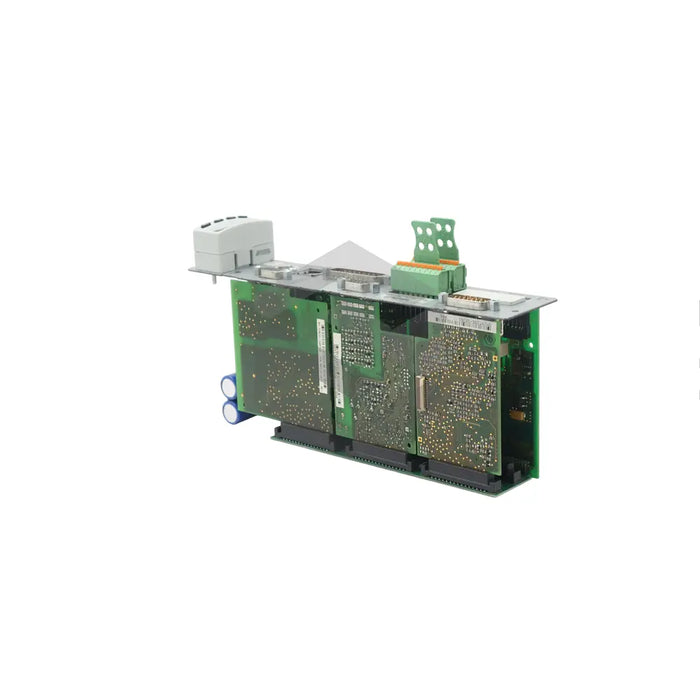

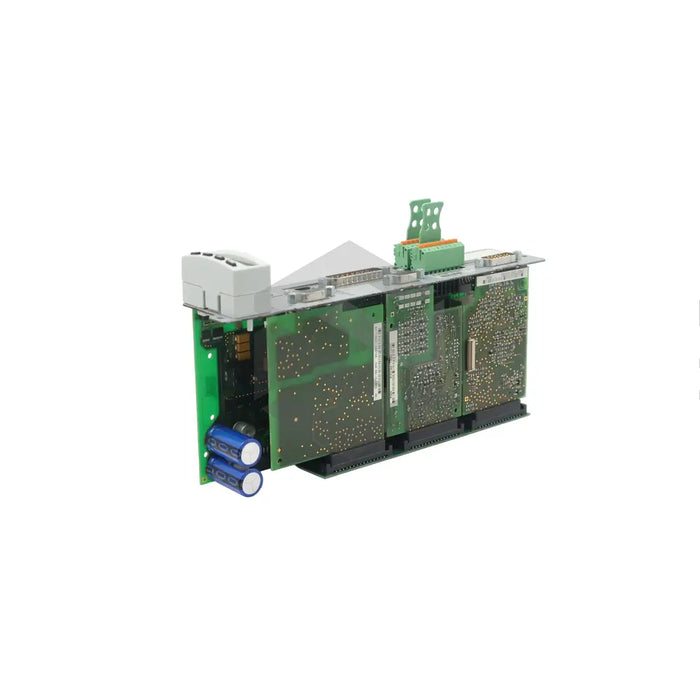

S image of CSH01.1C-PB-EN2-NNN-MD2-L1-S-NN-FW

CSH01.1C-PB-EN2-NNN-MD2-L1-S-NN-FW

by Bosch Rexroth Indramat
$2,217.81 - $2,217.81
$2,217.81
$2,217.81 - $2,217.81
$2,217.81

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN2-NNN-MD2-L1-S-NN-FW is a cutting-edge product from Bosch Rexroth's IndraDrive series. This drive system integrates top-of-the-line control and drive components resulting in a highly efficient automation solution. This single-axis control unit boasts a PROFIBUS master communication module, widely used in various automation solutions, and an encoder evaluation interface designed for 5V supply voltage encoder systems. The control section supports various encoder types including sin-cos encoders with EnDat 2.1 with Sense lines, the sin-cos encoder with reference track, and the 5V-TTL square-wave encoder with reference track. A Digital I/O extension and SSI encoder evaluation interface are also featured. This interface has 16 inputs and outputs, and identifies the absolute position for encoders with an SSI interface. Drive settings can be administered using a standard user panel or the Rexroth IndraWorks PC software.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH01 series

Product Model

CSH01.1C-PB-EN2-NNN-MD2-L1-S-NN-FW

Product Type

Control Section

Compatibility

Rexroth IndraDrive drive system

Communication Module

PROFIBUS

Encoder Evaluation Interface

5V supply voltage

Supported Encoder Types

sin-cos encoder (1 Vpp) with EnDat 2.1, sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder with reference track

Additional Module

Digital I/O extension and SSI encoder evaluation interface

Digital I/O Extension

16 inputs and 16 outputs with separate supply voltage for each group

Control Options

Standard user panel or Rexroth IndraWorks software for PC
