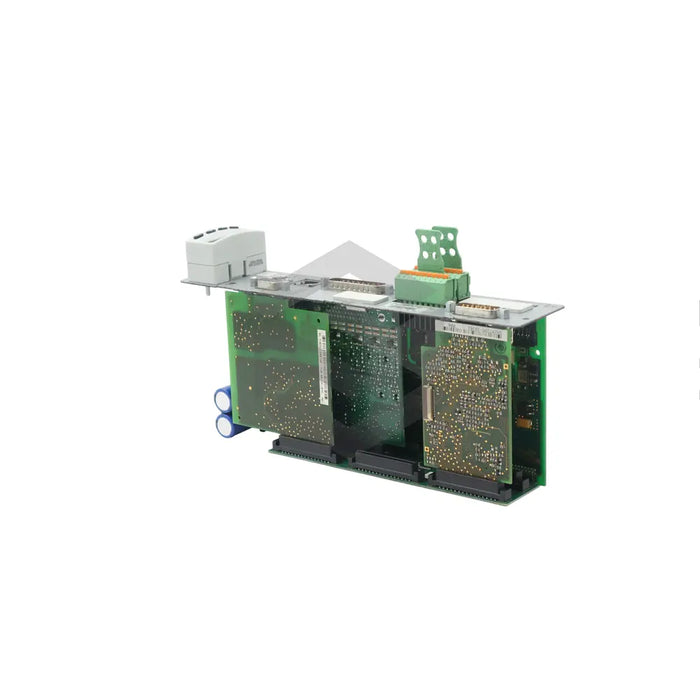

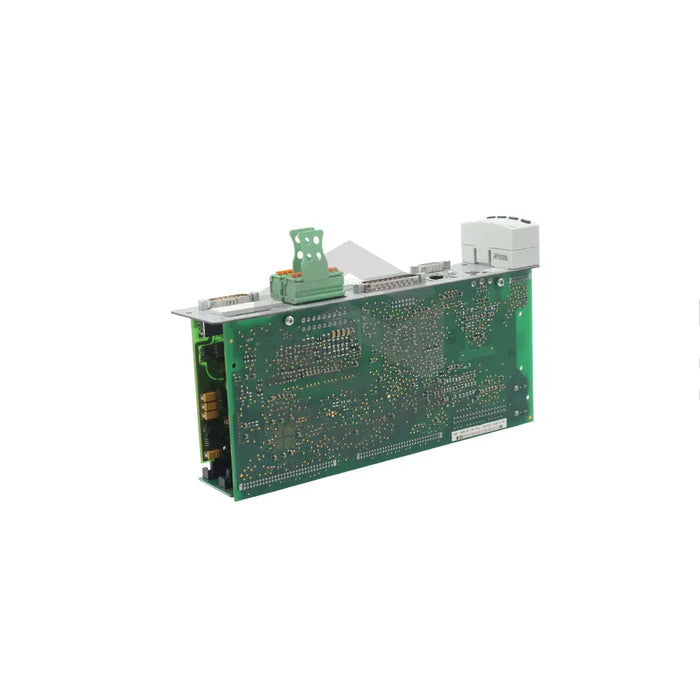

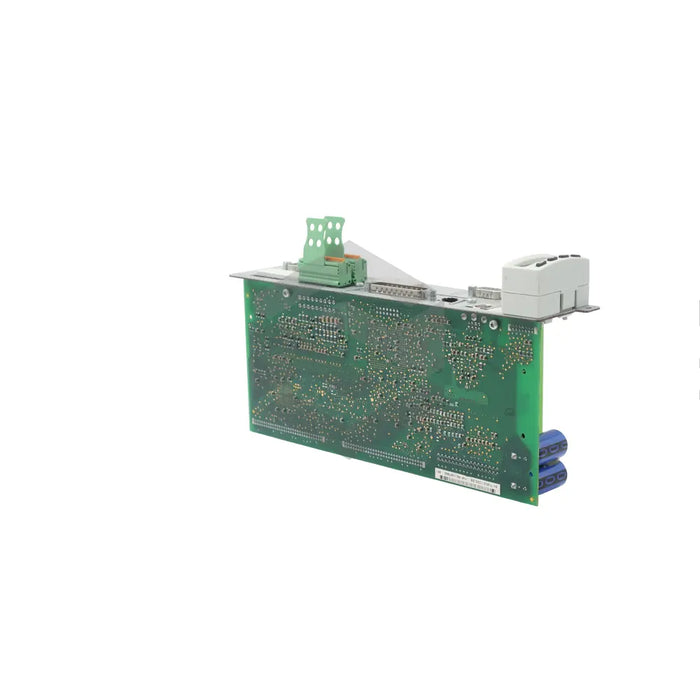

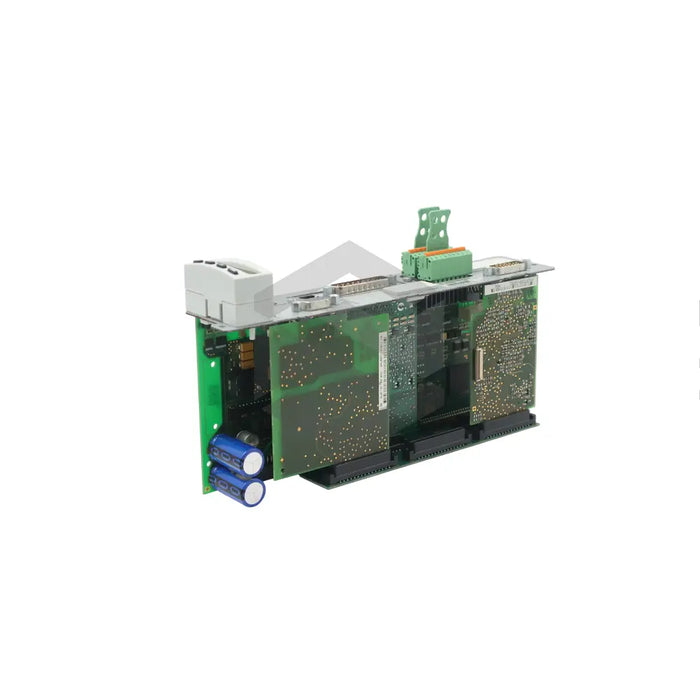

S image of CSH01.1C-PB-EN2-NNN-MD2-NN-S-NN-FW

CSH01.1C-PB-EN2-NNN-MD2-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,217.81 - $2,217.81
$2,217.81
$2,217.81 - $2,217.81
$2,217.81

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN2-NNN-MD2-NN-S-NN-FW is a high-performance drive controller from Bosch Rexroth's ADVANCED IndraDrive system. Predominantly used in various industries like packaging, food machines, and machine tools, this control section model is customizable and equipped with a PROFIBUS interface for superior system communication. The device caters to encoder systems with a 5V supply voltage including the sin-cos encoder (1 Vpp) with EnDat 2.1 and Sense lines, with a reference track and the 5V-TTL square-wave encoder with a reference track. Connectors on this model include spring terminals and screw terminal blocks. It has a typical inrush current of 4A and a maximum pulse width of 100ms. Also present are separately grouped inputs and outputs in the Digital I/O extension, each with their own supply voltages. It falls under category C3 of the IEC 61800‑3 standard, necessitating radio interference suppression measures to prevent harmonic generation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CSH01

Product Model

CSH01.1C-PB-EN2-NNN-MD2-NN-S-NN-FW

Product Type

Control Section

Version

1

Communication Interface

PROFIBUS

Encoder Evaluation Interface

Supports encoder systems with a 5V supply voltage

Terminal Blocks

Spring terminals and screw terminal blocks

Inrush Current

4A

Maximum Pulse Width

100ms

Interfaces Additional Feature

Digital I/O extension and SSI encoder evaluation interface

IEC Standard

C3 according to the IEC 61800‑3 standard

Industrial Applications

Handling and mounting systems, packaging and food machines, printing and paper processing machines, machine tools.
