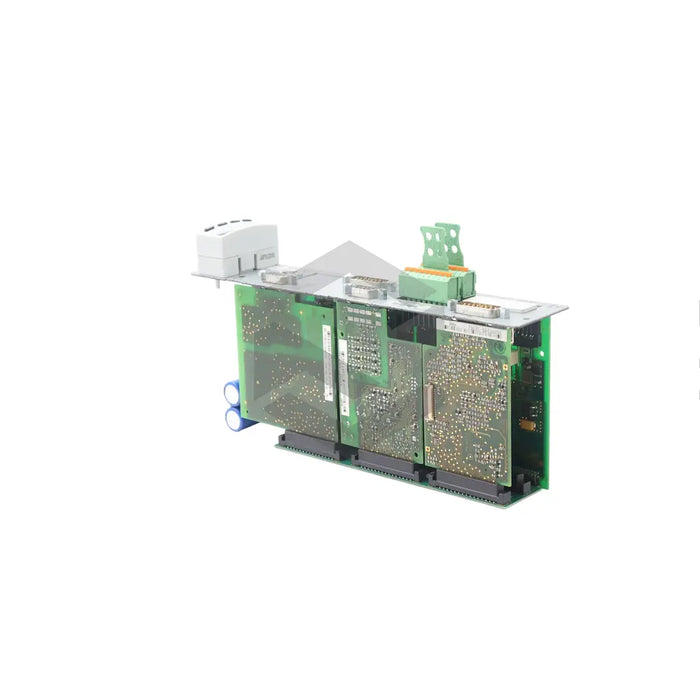

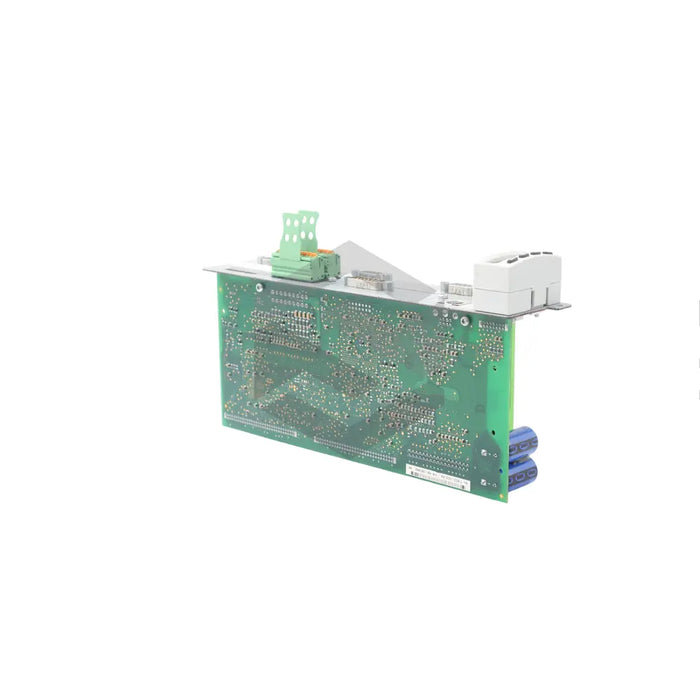

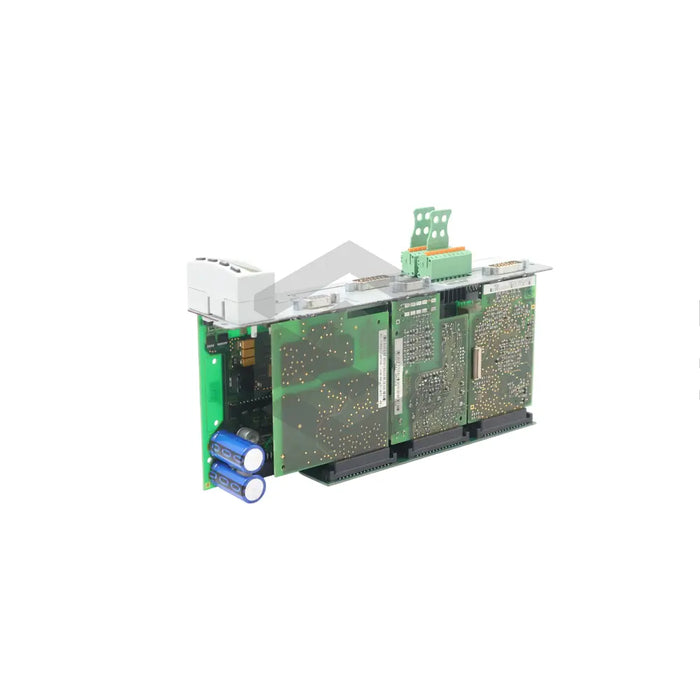

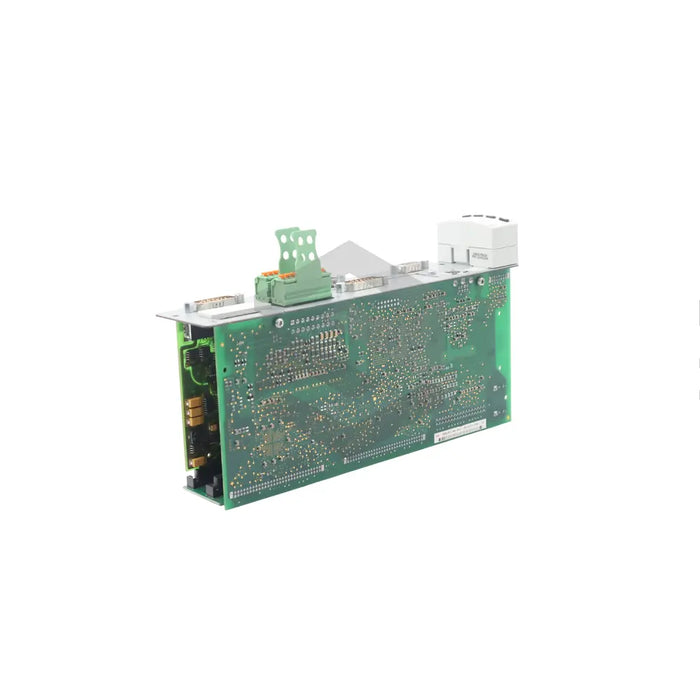

series image of CSH01.1C-PB-EN2-NNN-MEM-L1-S-NN-FW

CSH01.1C-PB-EN2-NNN-MEM-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.1C-PB-EN2-NNN-MEM-L1-S-NN-FW, a product of Bosch Rexroth, is part of the high performance IndraDrive system used in several machine operations. It is a control section from the CSH01 series in the ADVANCED control range, used in controlling and monitoring the operation of electrical motors. This device comes with a standard encoder evaluation interface, utilized in a variety of encoder systems with a 5V supply voltage, and a conventional PROFIBUS interface used for data exchange with high-level control systems. It integrates an encoder emulation interface that emulates absolute value and incremental encoder signals. Safety is ensured through a starting lockout safety module. It's equipped with a standard control panel primarily used for diagnostics, fault resolution, setting drive address, and analog outputs, and it must be handled only when the drive controller is switched off.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Product Series: CSH01
  • Model Number: CSH01.1C-PB-EN2-NNN-MEM-L1-S-NN-FW
  • Control Section Type: ADVANCED
  • Applications: Machine tools, printing and paper processing machines, handling and mounting systems, packaging and food machines
  • Encoder Evaluation Interface Type: Standard
  • Supported Encoder Systems: Sin-cos encoder (1 Vpp) with reference track, sin-cos encoder (1 Vpp) with EnDat 2.1, and the 5V-TTL square-wave encoder with reference track
  • Interface type: PROFIBUS
  • Encoder Emulation Function: Absolute value and incremental encoder signals
  • Safety Feature: Starting lockout safety module, stop category 0 according to EN60204-1
  • Control Panel Suitability: Not suited for hot plug, can be plugged in or disconnected only when the drive controller is not switched on
  • Control Panel Features: Single-line display, used for diagnostics, fault resolution, setting drive address and analog outputs.
