S image of CSH01.1C-PB-EN2-NNN-NNN-L2-S-NN-FW

CSH01.1C-PB-EN2-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$1,767.92 - $8,883.56
$1,767.92
$1,767.92 - $8,883.56
$1,767.92

In Stock, Ships 1 - 3 Days

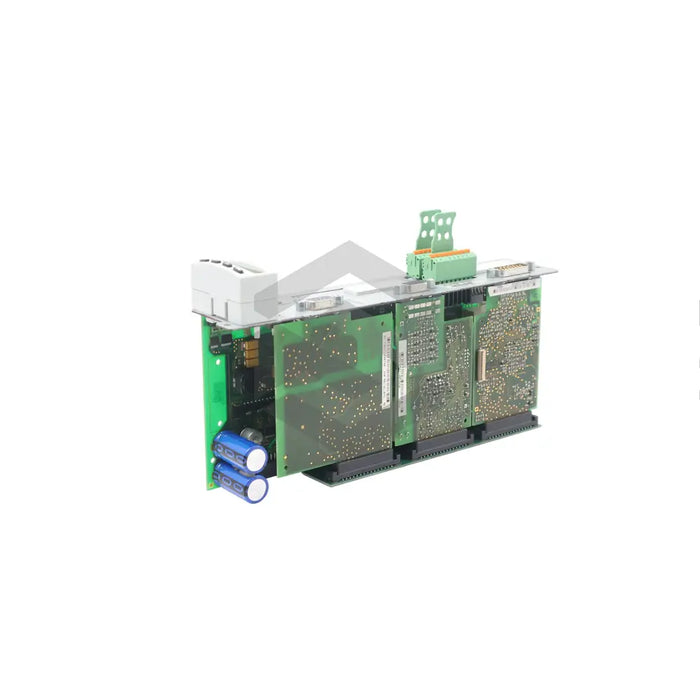

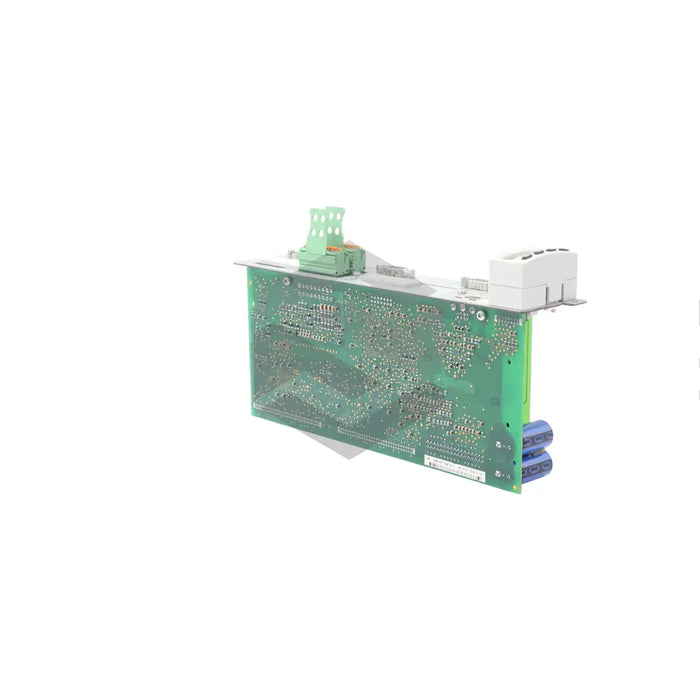

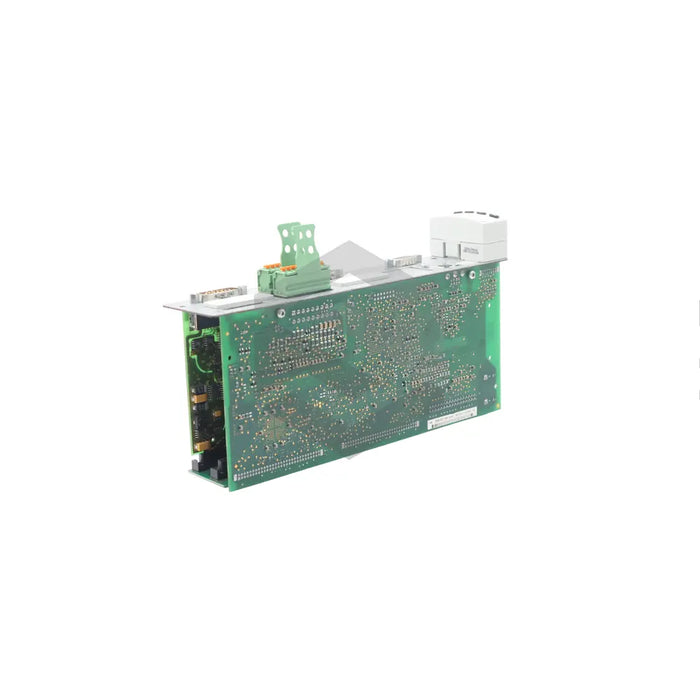

The Bosch Rexroth Indramat CSH01.1C-PB-EN2-NNN-NNN-L2-S-NN-FW is a control section designed for integration with the brand's drive controller to enhance the operation and monitoring of electrical motors. Constructed for specific use with minimal plugin or removal actions, it supports PROFIBUS communication via a D-Sub female 9-pin connector and a 0.08mm2 to 0.5mm2 stranded wire connection cable. Equipped with a single axis, this configurable device boasts multiple digital inputs and outputs, and connects with an EnDat 2.1 / 1Vpp / TTL encoder at the X4 point. The control section employs one normally open relay contact and implements Safe Torque OFF functionality. Additionally, it features screw and spring terminals, inclusive of 0V and 24V connectors, at connection points. However, the isolated I/Os cannot be supplied with the power section's 24V. This section allows connection of two identical cross-section wires at each terminal point.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.1C-PB-EN2-NNN-NNN-L2-S-NN-FW

Product Group

CSH

Line Code

1

Communication Module

PROFIBUS

Module Connection

D-Sub female 9-pin connector

Wire Connection Cable

0.08mm2 to 0.5mm2 stranded wire

Communication Standards

EIA-RS485

Configuration

Configurable

Axes

Single Axis

Compatibility

Not compatible with manufacturers VCP01.2 comfort control panel

Outputs and Inputs

Multiple digital

Encoder

EnDat 2.1 / 1Vpp / TTL encoder at the X4 connecting point

Relay Contact

Normally Open

Safety Functionality

Safe Torque OFF

Terminal Type

Screw terminal blocks and spring terminals

Terminal Connectors

0V and 24V terminal connectors

Power Supply

Isolated inputs and outputs cannot be provided with the 24V supply voltage

Terminal Connections

Supports connection of two identical cross-section wires in one terminal
