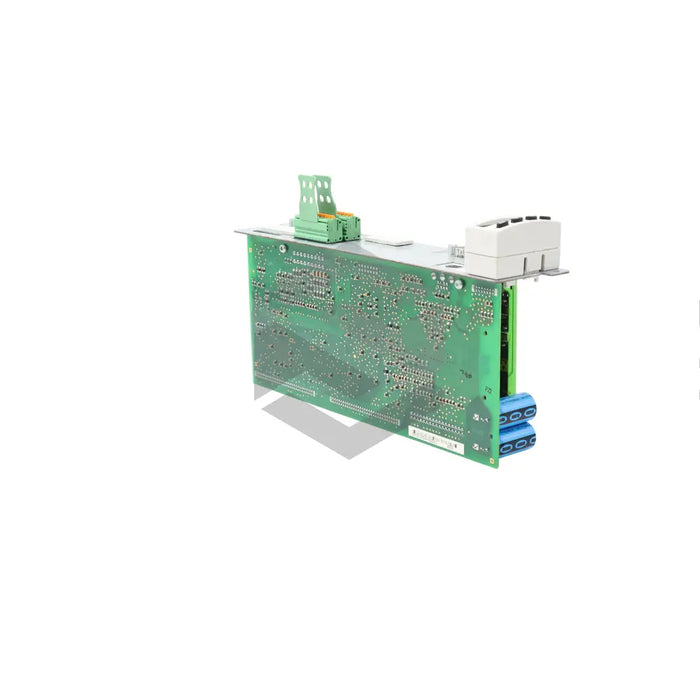

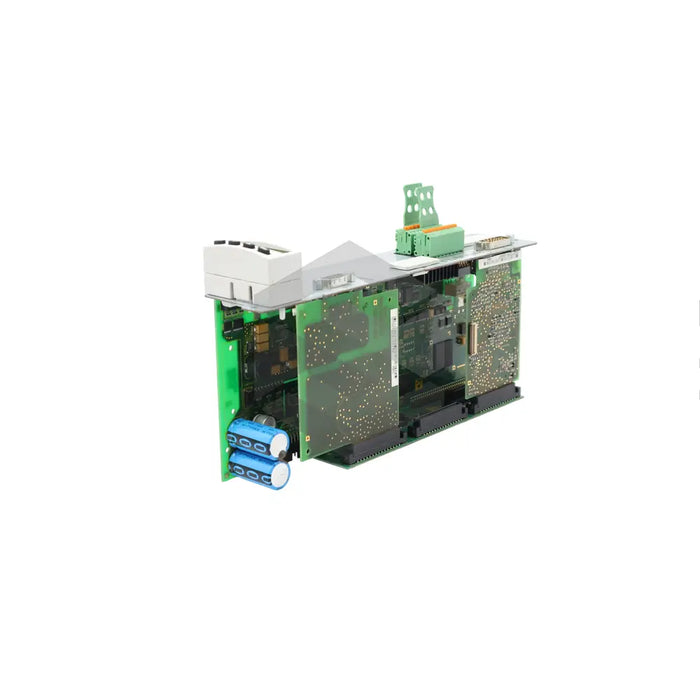

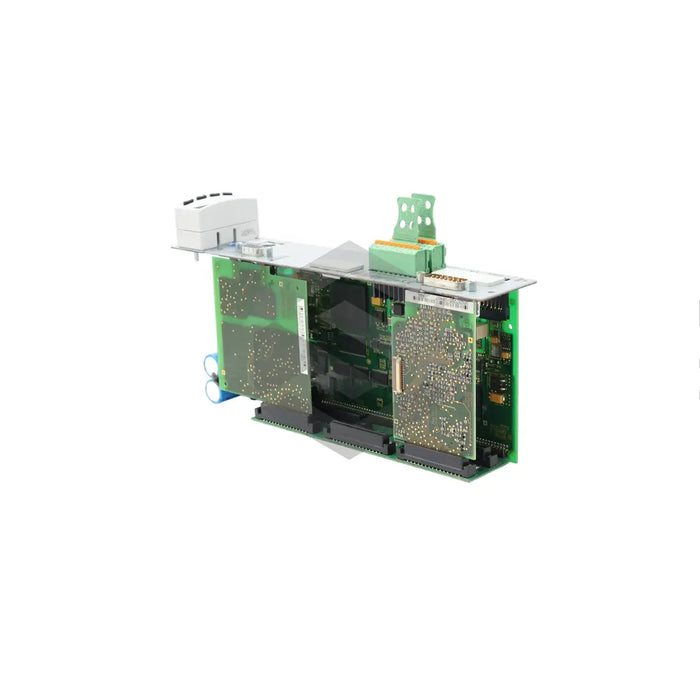

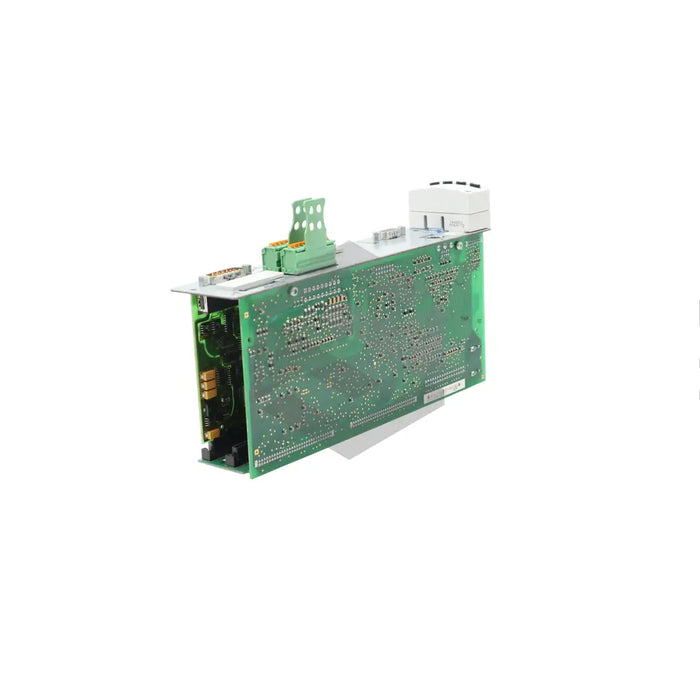

S image of CSH01.1C-PB-EN2-NNN-NNN-NN-S-NN-FW

CSH01.1C-PB-EN2-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$1,803.49 - $8,883.11
$1,803.49
$1,803.49 - $8,883.11
$1,803.49

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-EN2-NNN-NNN-NN-S-NN-FW control section, made by Bosch Rexroth Indramat, offers several digital inputs and outputs, and can be set up based on specific requirements. Despite not featuring any safety functions, careful handling is necessary to prevent damage and operational issues caused by electrostatic charges. Ideal for industrial environments, it's suitable for drive controllers used in machine tools, provided ambient conditions align with specifications. It follows DIN EN 50170 standards, with a PROFIBUS module aiding in master communication. The device also features a connectable terminating resistor, a standard control panel and a memory card slot. It's comprised of a single axis and includes two Type 2 digital inputs that function as probes. Analog input is mounted in parallel to I6 and I7 digital inputs, reducing input resistance, with a relay contact rated at 24VDC and 1A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-EN2-NNN-NNN-NN-S-NN-FW

Environment

Industrial Uses Only

PROFIBUS Module Type

Master communication

PROFIBUS Module Compatibility

DIN EN 50170

Configuration

Attachable terminating resistor active at first and last bus nodes

Control Panel Details

Standard control, single-line display, four keys

Memory Card Slot Availability

Yes

Axis Operation

Single axis

Digital Inputs Type

Two, Type 2, Configurable as probes

Input Voltage

Between -3V and 30V

Input Resistance

Varies, non-linear

I6 and I7 Digital Inputs Details

Parallel to the analog input

Relay Contact Voltage

24 VDC

Relay Contact Current

1 A
