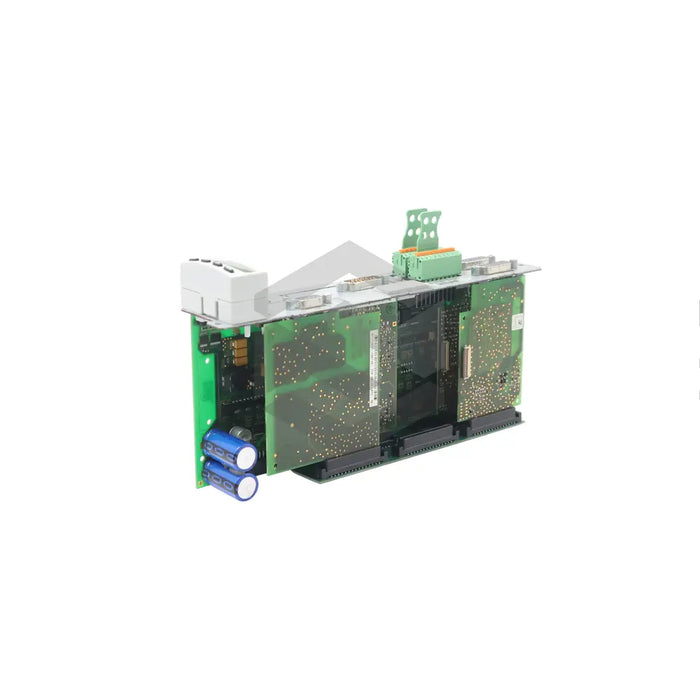

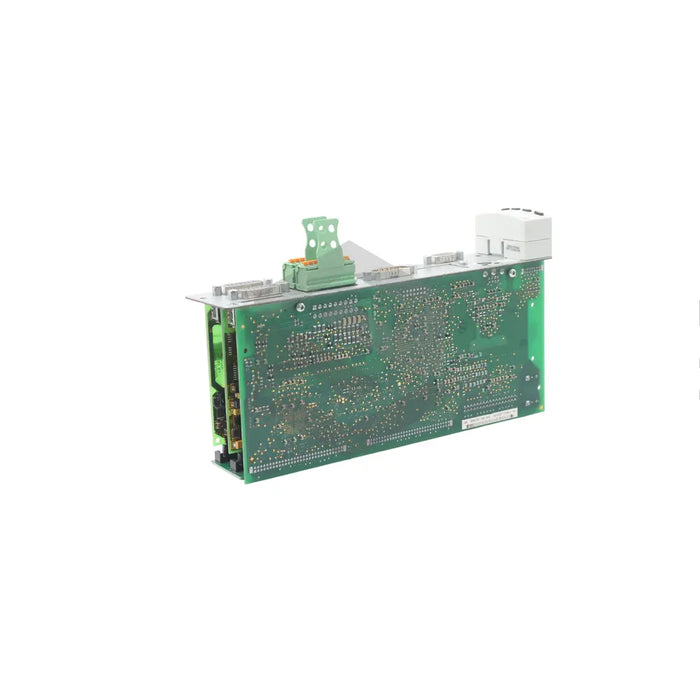

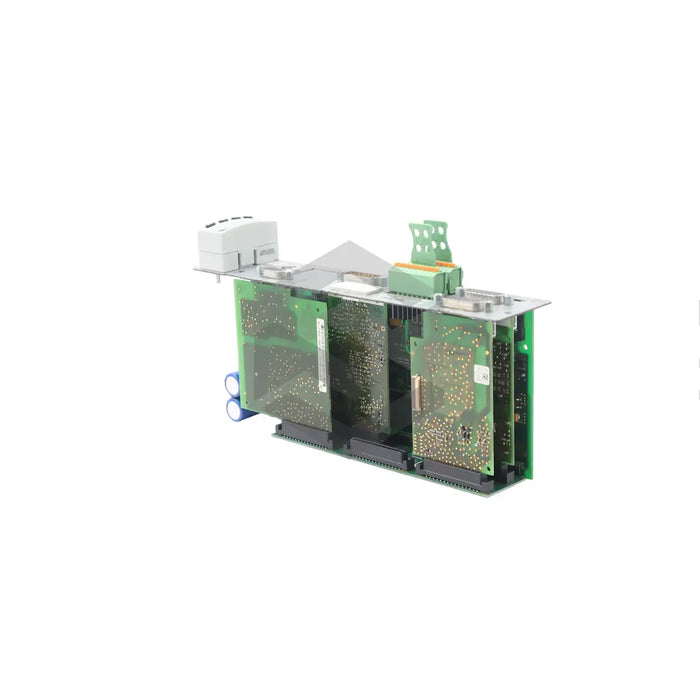

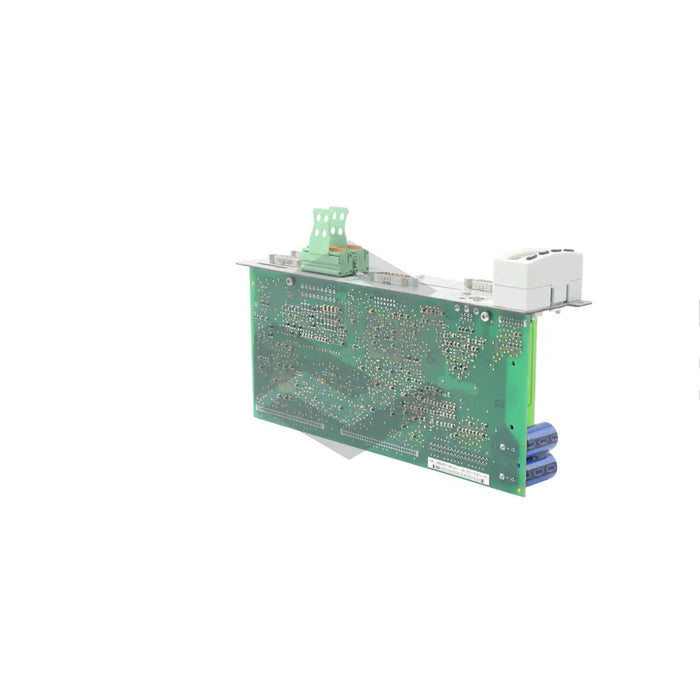

S image of CSH01.1C-PB-ENS-EN2-EN2-NN-S-NN-FW

CSH01.1C-PB-ENS-EN2-EN2-NN-S-NN-FW

by Bosch Rexroth Indramat
$1,824.38 - $1,824.38
$1,824.38
$1,824.38 - $1,824.38
$1,824.38

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-ENS-EN2-EN2-NN-S-NN-FW, a cutting-edge motion control technology, is developed and manufactured by Bosch Rexroth Indramat. This control unit is part of a drive controller system and is specifically designed for highly advanced control of drive systems. Connected primarily through separate ports for digital and analog devices and equipped with an operator's panel for configuration, it requires a dedicated power supply for digital input/output appliances. This unit also supports IndraDyn, Hiperface, TTL, 1 Vpp, and EnDat 2.1 optical encoder interfaces due to integrated optional modules. The unit should only be operated by skillful personnel and installed in non-humid, pollution-free areas. Correct voltage supply polarity and the specific connection points, X2 and H1, are essential for the safe operation. Maintenance should only be conducted by certified service providers, and if multiple units are installed, ensure adequate ventilation. The compact dimensions (241mm x 103mm x 49.5mm) allow it to fit in a standard cabinet size.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-PB-ENS-EN2-EN2-NN-S-NN-FW

Product Type

Motion Control Technology

Use

Control of drive system

Ports

Separate ports for digital and analog devices

Operator Panel

Present for configuration and operation

Used in

Drive controller

Optional Modules

Connection with encoder systems

Supported Encoder Interfaces

IndraDyn, Hiperface, TTL, 1 Vpp, EnDat 2.1

Connection Points

X2 for the serial interface and H1 for the control panel interface

Placement

Away from moist and polluted areas

Required Connections

According to the connection diagram

Size

Fits in a cabinet with an area greater than 241mm x 103mm x 49.5mm

Installation

Maintain a sufficient ventilation gap between the units when installed in a group.
