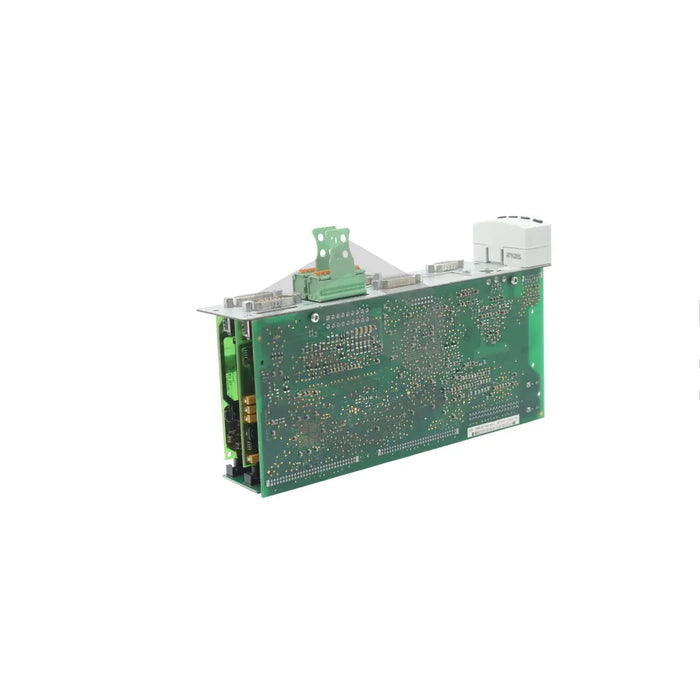

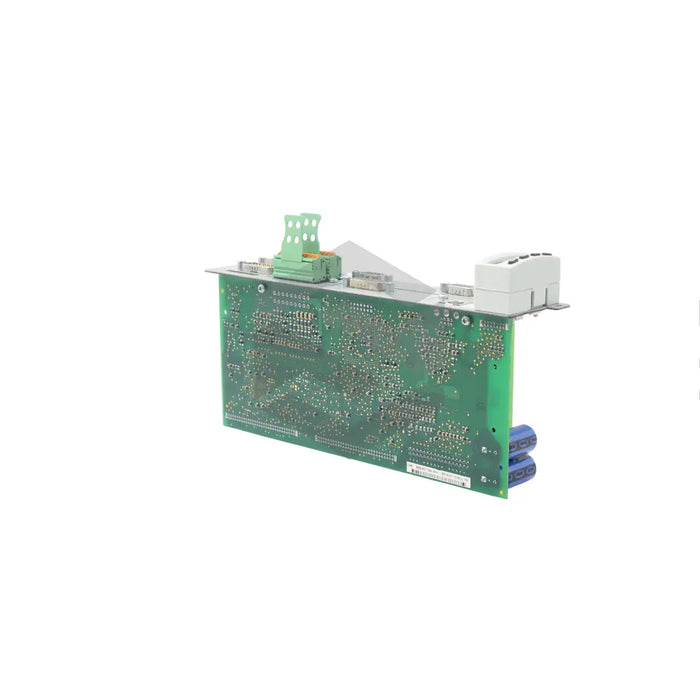

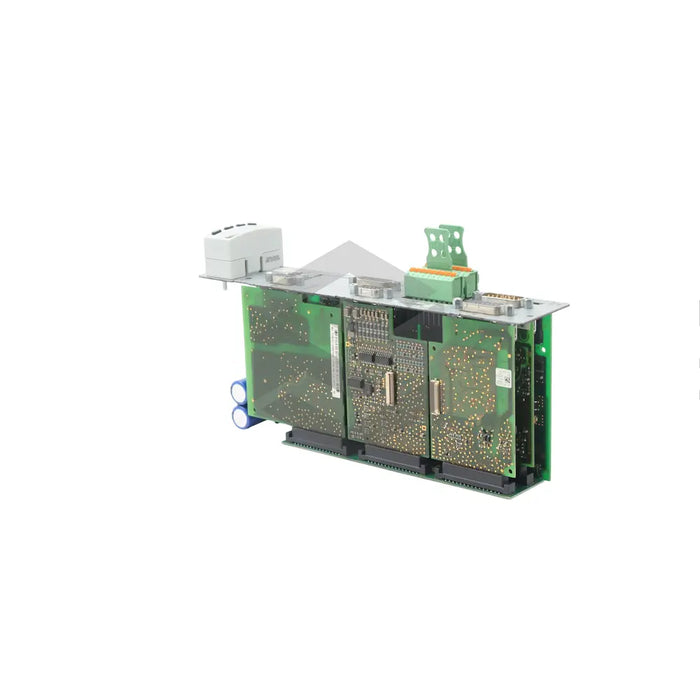

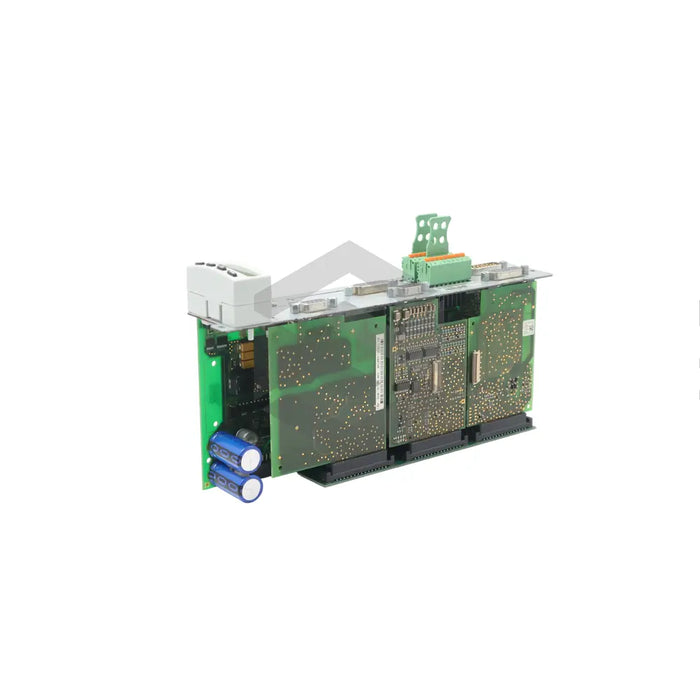

S image of CSH01.1C-PB-ENS-EN2-MA1-S2-S-NN-FW

CSH01.1C-PB-ENS-EN2-MA1-S2-S-NN-FW

by Bosch Rexroth Indramat
$1,824.38 - $1,824.38
$1,824.38
$1,824.38 - $1,824.38
$1,824.38

In Stock, Ships 1 - 3 Days

The CSH01.1C-PB-ENS-EN2-MA1-S2-S-NN-FW is a premium, technically advanced control section from established industrial component provider, Bosch Rexroth Indramat. Known for reliable and robust products, this control section comes without firmware, needing a separate purchase. Its capabilities include current control periods between 62.5 and 125 microseconds, position control times between 250 and 500 microseconds, and speed control times between 125 and 250 microseconds. Power usage is minimal, at 7.5 watts. It features 11 digital inputs, two touch probes, and utilises natural convection cooling. Other specifications include an adjustable width-modulation, a universal control panel, one relay output, and an S2 safety option. It's compact, with dimensions of 103mm x 241mm x 49.5mm. Installation requirements include a maximum altitude of 1000 meters. The control section comes with an EnDat2.1 encoder, an IndraDyn/hiperface encoder, and an analog I/O extension, suitable for use in machines that meet national legislation and safety regulations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.1C-PB-ENS-EN2-MA1-S2-S-NN-FW

Communication

PROFIBUS master

Firmware

Not included

Current Control Period

62.5-125 microseconds

Position Control Time

250-500 microseconds

Speed Control Time

125-250 microseconds

Power Consumption

7.5 W

Cooling

Natural convection

Digital Inputs

11

Touch Probes

2

Inrush Current

4 amps

Control Section Width Modulation Frequency Range

2 - 16 kHz

Control Section Width Modulation Pulse Width

100 ms

Control Panel

Standard

Relay Output

One

Safety Option

S2 (safe motion)

Assembly and Installation Location

Within 1000 meters of sea level

Dimensions

103mm width, 241mm height, 49.5mm depth

SERCOS Cycle Period

1000 microseconds

Analog Inputs

One

RS232 Serial Port

One

Digital Outputs

Four

Option 2 Encoder

EnDat2.1

Option 1 Encoder

IndraDyn/hiperface

Digital Inputs Option

7 – 11

Analog I/O Extension

Option 3

Installation Compliance

Must comply with national legislation and safety regulations

Requirement for Operation

Trained worker
