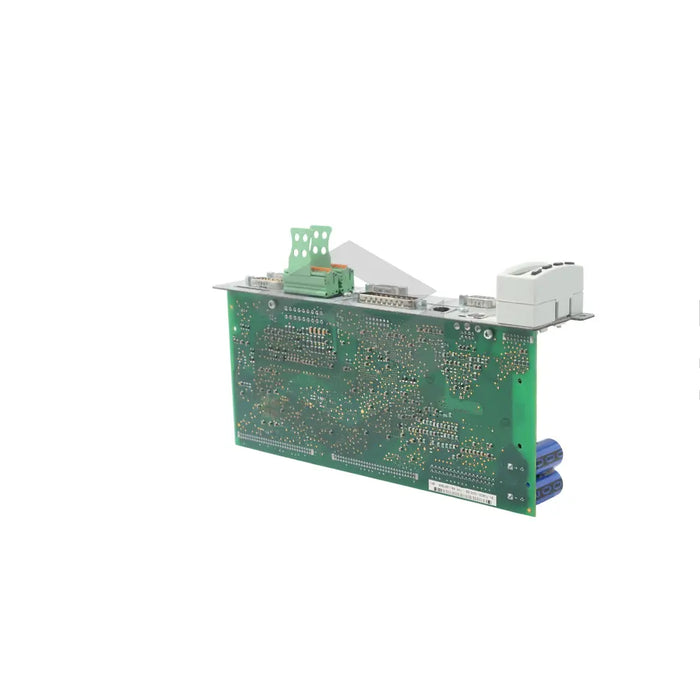

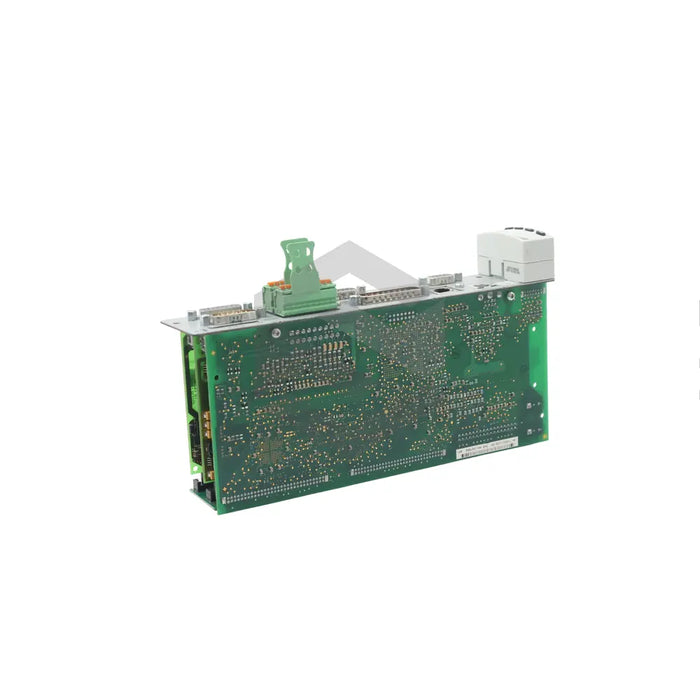

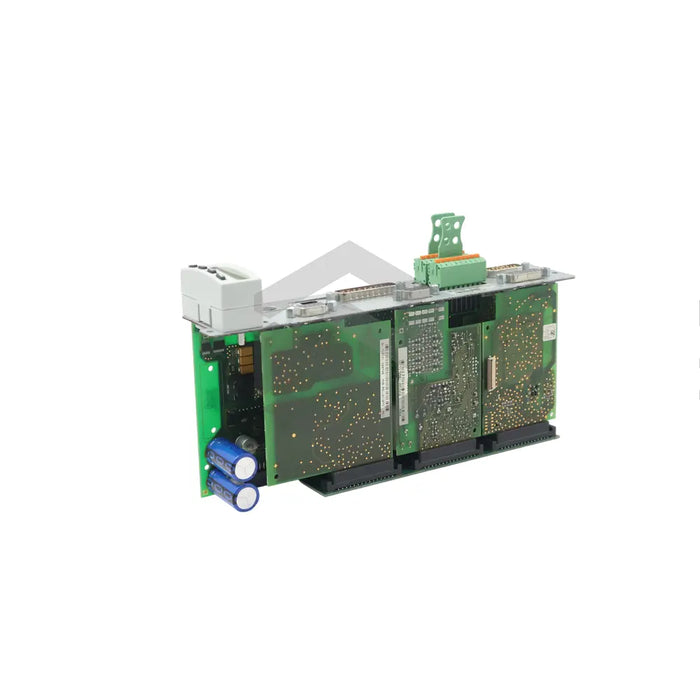

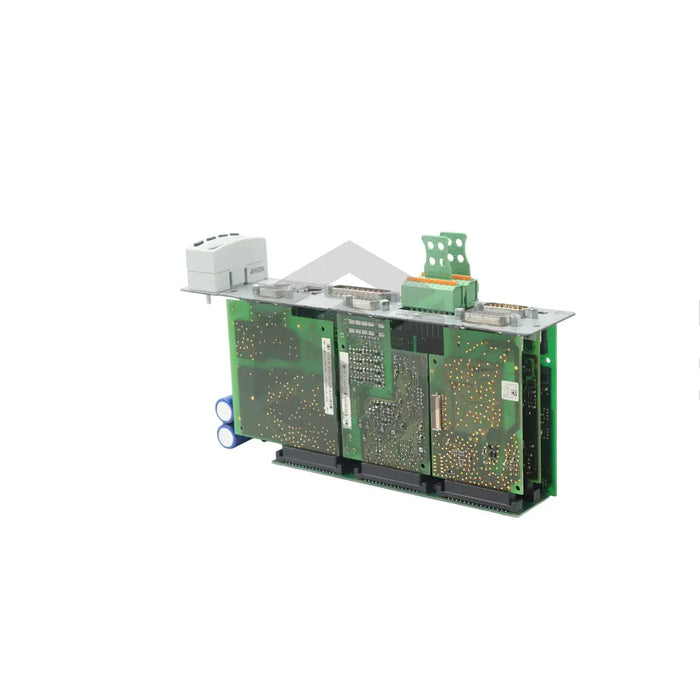

S image of CSH01.1C-PB-ENS-EN2-MD2-L2-S-NN-FW

CSH01.1C-PB-ENS-EN2-MD2-L2-S-NN-FW

by Bosch Rexroth Indramat
$1,824.38 - $1,824.38
$1,824.38
$1,824.38 - $1,824.38
$1,824.38

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CSH01.1C-PB-ENS-EN2-MD2-L2-S-NN-FW is an advanced modular control unit designed for single-axis positioning applications. Featuring four slots, the control unit has one fixed space specifically for a safety module that supports safe torque off. The remaining slots are geared for functional modules, with slot 3 housing a digital I/O extension module with SSI encoder interface for absolute position detection. Slots 1 and 2 contain encoder modules, the IndraDyn and the EnDat 2.1 respectively. This control unit, which can be easily configured through a standard panel, also supports Profibus master communication. The unit's firmware is ordered separately and its version can be identified through a type plate on the controller. Bosch recommends the use of 0.25 to 0.5 mm2 stranded copper wire with its safety module, which comes with a D-sub female 9-pin interface.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Unit

Modularity

Modular device

Hardware Slots

4 slots

Use Case

Optimized for single-axis positioning applications

Safety Module Support

Supports safe torque off

Required Wiring

Stranded copper wire with 0.25 to 0.5 mm2 wire size

Physical Interface

D-sub female 9-pin interface

Digital I/O Extension

Yes, features 16 input and 16 outputs

Inputs

Divided into two groups of eight each requiring separate supply voltage

Outputs

Divided into four groups of four each requiring separate supply voltage

Encoder Functionality

Used for absolute position detection for encoders with SSI interfaces

Slots 1 and 2

Features encoder modules, Slot 1 IndraDyn module, Slot 2 EnDat 2.1 module

Configuration

Standard control panel

Control Panel Compatibility

Not compatible with comfort control panel

Communication

Profibus master communication

Firmware

Ordered separately. Unit features firmware type plate for identification of installed version
