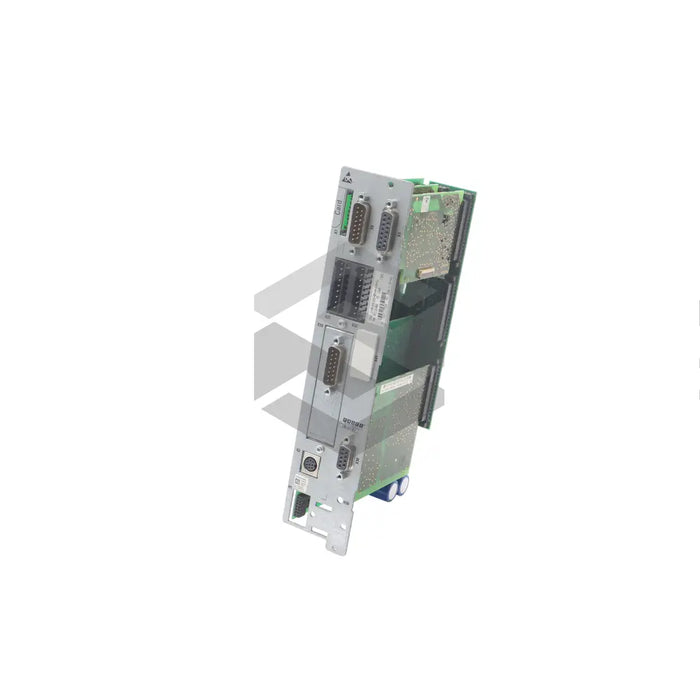

C image of CSH01.1C-PB-ENS-EN2-MEM-NN-S-NN-FW | Main (Front Left)

CSH01.1C-PB-ENS-EN2-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,217.81 - $2,217.81
$2,217.81
$2,217.81 - $2,217.81
$2,217.81

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the CSH01.1C-PB-ENS-EN2-MEM-NN-S-NN-FW is a pioneering control section using an ENS module for conventional encoder evaluation with a differential input. It's capable of linking two conductors at one terminal point utilizing TWIN ferrules or twin wires. Free from pollutants such as asbestos and mercury, it sourced power through the 0V and 24V terminal attachments of the power section. It has five switchable frequencies, between 2kHz to 16kHz. For simplified parameter transmission, a preformatted memory card or a memory card with installed firmware can be employed. The device does not feature safety technology and should not be utilized in high-temperature variances. The device is compatible only with endorsed components and adheres to complete safety norms during power installation. It features a maximum output current of 500mA and an operational supply voltage of 11.6V.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

CSH01.1C-PB-ENS-EN2-MEM-NN-S-NN-FW Advanced Control Section

Control Type

Standard Encoder Evaluation with Differential Input

Conductor Connection

Connection of Two Conductors in a Single Terminal

Substance Free

Chlorinated Hydrocarbons, PCB, Asbestos and Mercury

Supply Voltage

24V with Terminal Connectors

Digital Inputs

No Type 3 Digital Inputs

Switching Frequency

2kHz to 16kHz

Memory Card

Preformatted with Loaded Firmware

Control Panel

Standard Control Panel for Drive Address and Analog Outputs Setting

Safety Technology

Not Implemented

Compatible with

Encoders with 5V Supply Voltage

ENC Module

EN2, with EnDat 2.1 / 1Vpp / TTL Encoder

Operating Temperature

No High-Temperature Variation Compatibility

Installation Guide

As per Provided Documentation

Component Compatibility

Manufacturer Supported Components Only

Safety Regulation

Safety Regulations Considered during Power Installation

ENS Module Supply Voltage

Typical 11.6V

ENS Module Output Current

Maximum 500mA
