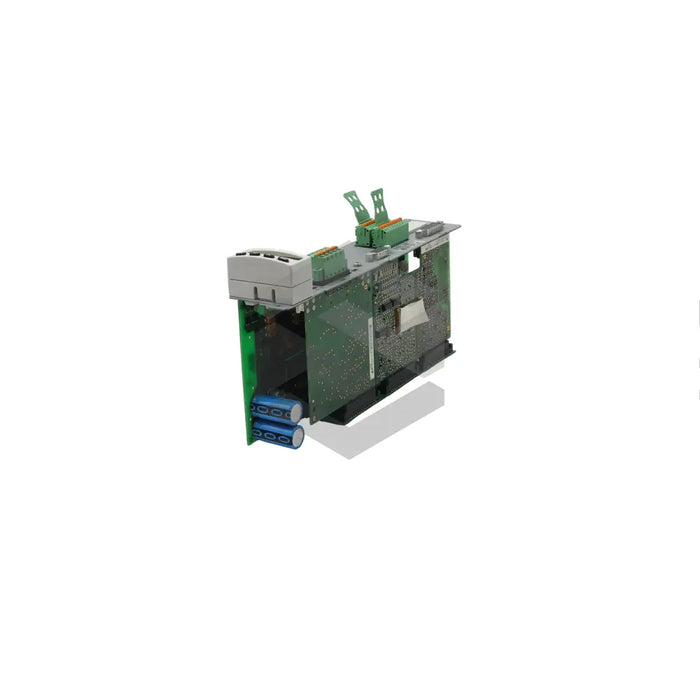

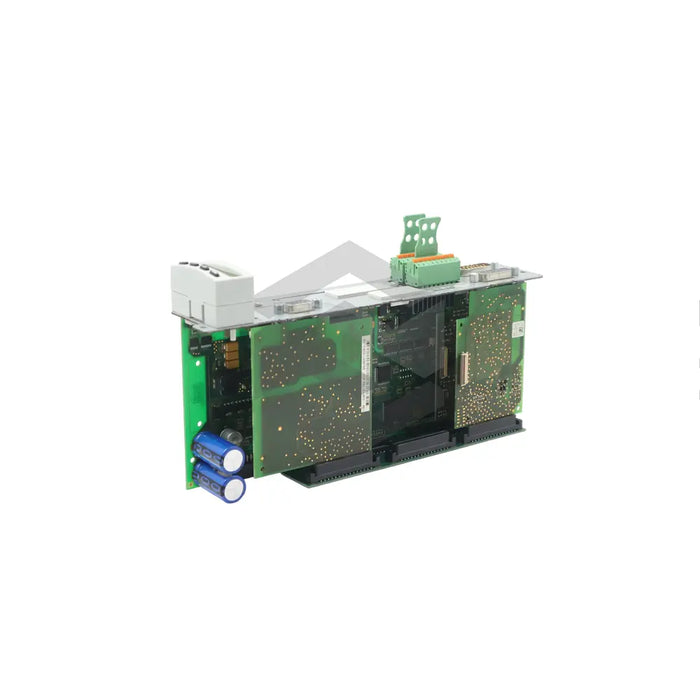

C image of CSH01.1C-PB-ENS-ENS-NNN-NN-S-NN-FW | Main (Front Left)

CSH01.1C-PB-ENS-ENS-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$1,803.49 - $8,883.11
$1,803.49
$1,803.49 - $8,883.11
$1,803.49

In Stock, Ships 1 - 3 Days

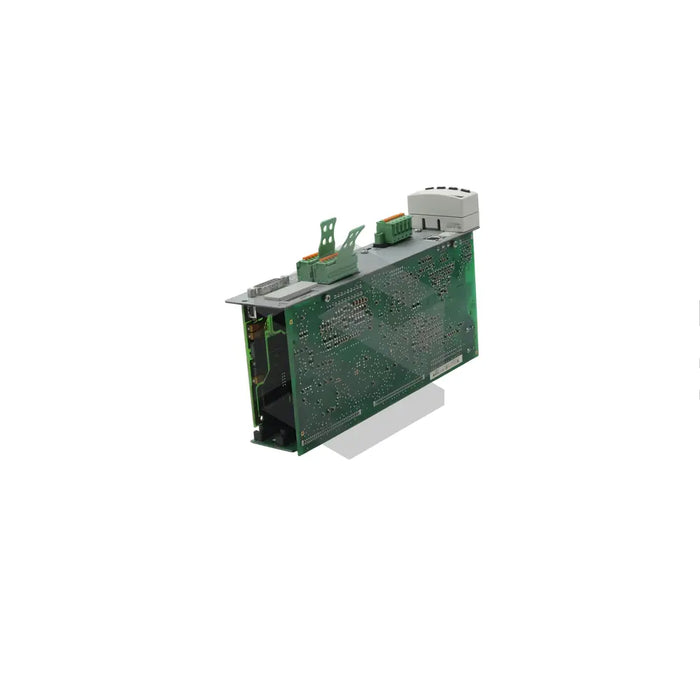

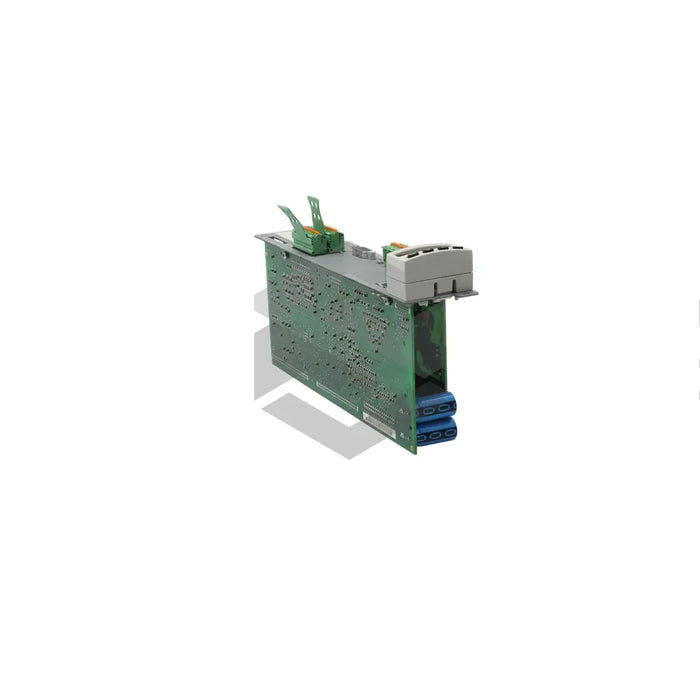

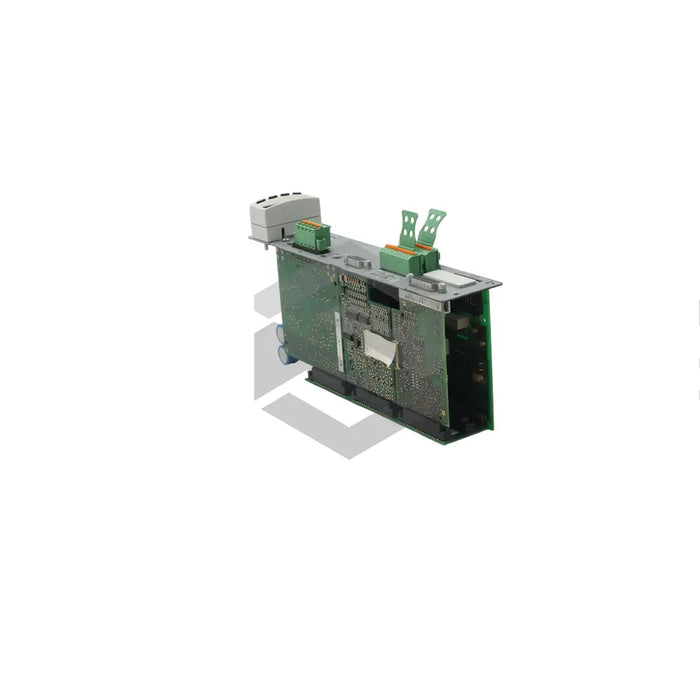

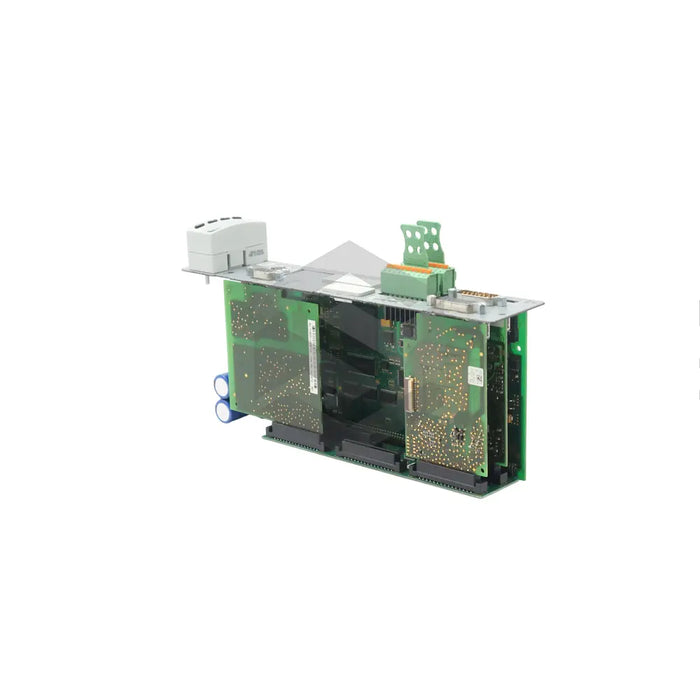

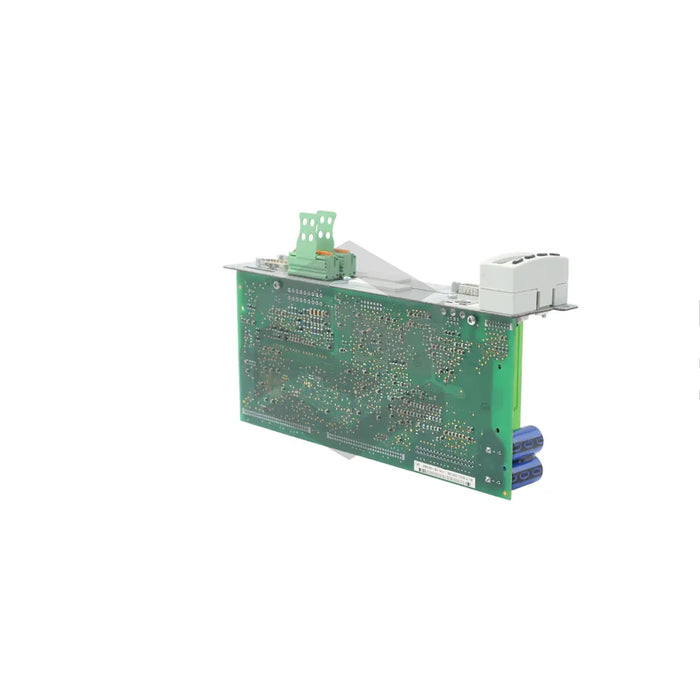

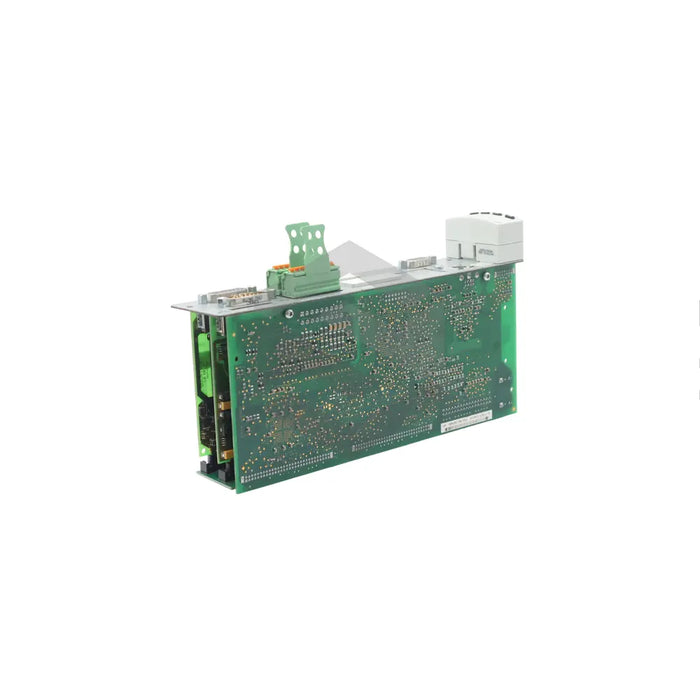

The Bosch Rexroth Indramat CSH01.1C-PB-ENS-ENS-NNN-NN-S-NN-FW is a control section featuring two ENS standard interface encoder modules, designed for use with 12 Volt encoders. It is compatible with various encoders including MSK series motors, Hiperface supported sin-cos, and EnDat 2.1 interface sin-cos. The device can be connected via a 15-pin D-sub female connector and recommends using stranded copper wire of 0.25 to 0.5 mm2 cross-section for this purpose. With a total of four slots available for hardware modules, three are designed for plug-ins whilst one is dedicated for a safety module. This product supports SERCOS, Profibus, and Multi-Ethernet master communication interfaces and houses the advanced category control sections as well. The operating conditions for this piece range from 0 to 40 degrees Celsius and altitudes between 0 and 1000 meters. Please note, only qualified personnel should handle this. The firmware is not included and must be procured separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

CSH01.1C-PB-ENS-ENS-NNN-NN-S-NN-FW

Product Type

Control Section with Dual Encoder

Encoder Module Type

ENS

Voltage Requirement

12 Volts

Interface Compatibility

MSK series motors, Sin-cos encoders with Hiperface support, Sin-cos encoders with EnDat 2.1 interface, Sin-cos encoders with reference track

Physical Interface

15-pin D-sub female connector

Recommended Wire

Stranded Copper, 0.25 to 0.5 mm2 cross-sectional area

Hardware Slots

4 slots (3 for modules, 1 for safety)

Available slots

2 including safety module slot

Master Communication Interfaces

SERCOS, Profibus, Multi-Ethernet

Communication Support

Profibus

Control Panel Type

Standard (not hot swappable)

Control Section Category

Advanced

Order Separately

Firmware

Environmental Specifications

0 to 40 degrees Celsius, 0 to 1000 meters above sea level

Intended Users

Qualified personnel only
